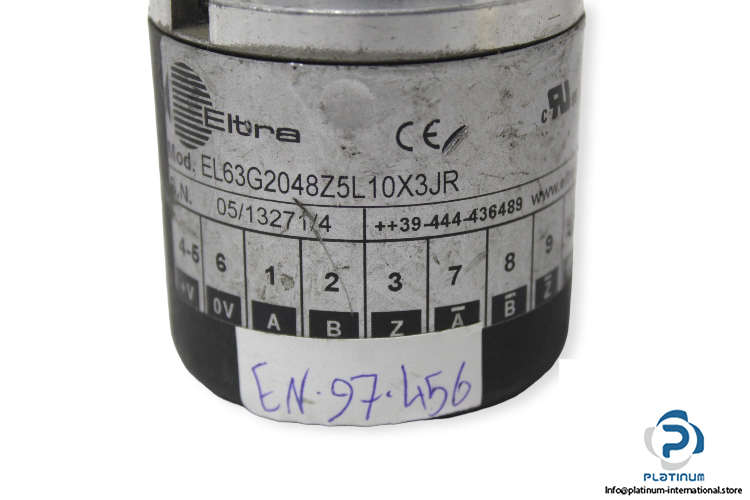

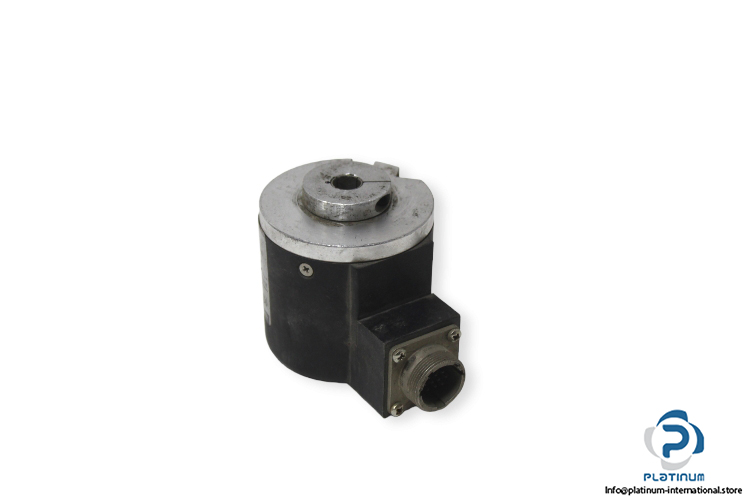

ELTRA EL63G2048Z5L10X3JR ENCODER

The EL63G2048Z5L10X3JR from Eltra is a high-precision incremental encoder designed to deliver reliable performance in automation and industrial control applications. Its compact design with a blind hollow shaft and torque pin mounting ensures easy integration in space-constrained environments.

Manufacturer: Eltra
Type: Encoder
Model: EL63G2048Z5L10X3JR
Serial No.: 05/13271/4

Technical Information

• Power Supply: 5 V DC
• Principle of Operation: Incremental
• Shaft Type: Blind Hollow Shaft
• Mounting Type: Torque Pin
• Electronic Interface: Line Driver
• Bore Diameter: 10 mm
• Construction Size (Diameter): 63.5 mm
• Resolution (PPR): 2048
• Output Type: J Connector
• Operating Temperature: -10 / +60 °C
• Degree of Protection: IP54
