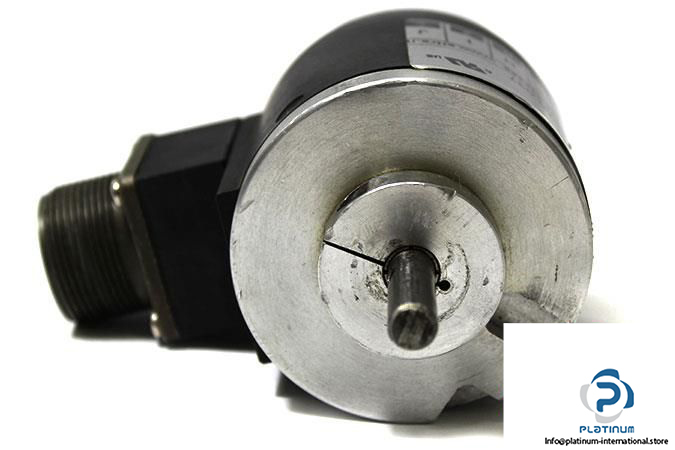

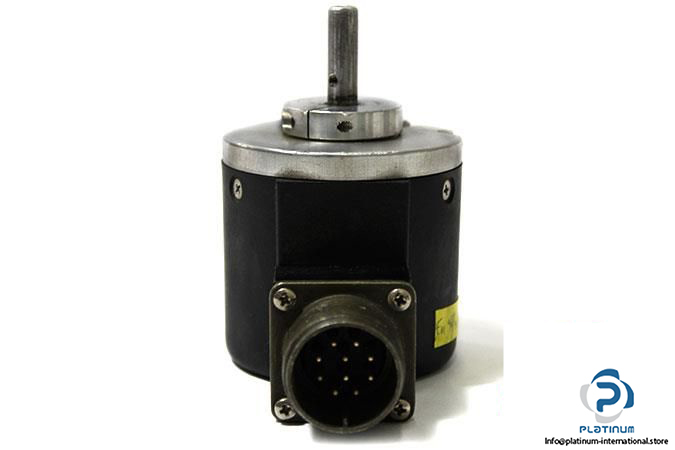

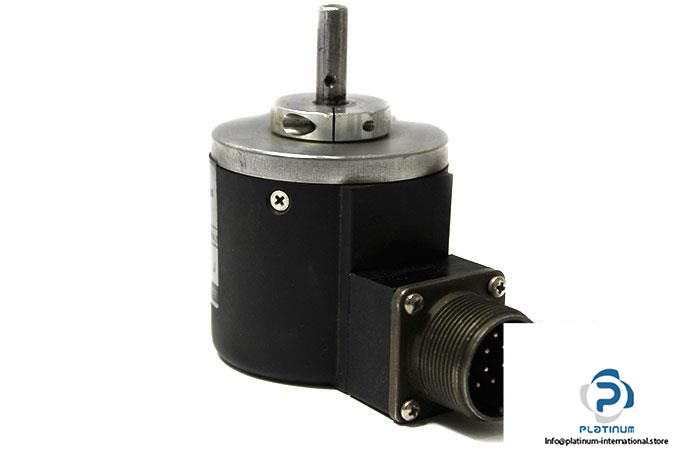

ELTRA EL63G4096Z8/24L8X3MR.037 INCREMENTAL ENCODER

Engineered for precision feedback in automation systems, the ELTRA EL63G4096Z8/24L8X3MR.037 incremental encoder delivers reliable high-resolution performance in a compact and durable design. With 4096 PPR resolution and TTL output, it’s ideal for industrial motion control environments.

Manufacturer: ELTRA
Type: INCREMENTAL ENCODER

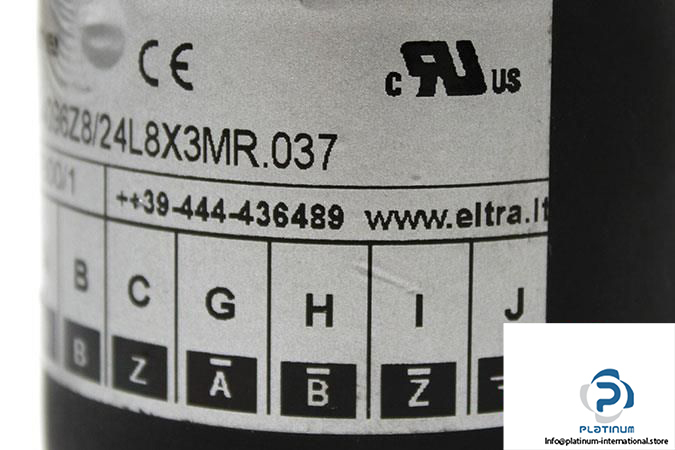

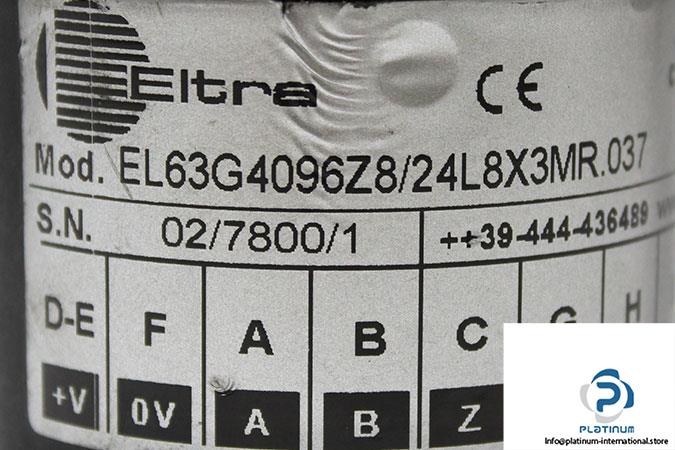

Model: EL63G4096Z8/24L8X3MR.037
Serial No.: 02/7800/1

Technical Information

• Shaft Diameter: 8 mm
• Body Dimension: 63 mm
• Resolution: 4096 Pulses per Revolution (PPR)
• Voltage Supply: 8/24 VDC
• Output Frequency: 0 / 300 kHz
• Output Circuits: Line Driver (TTL)
• Max Rotation Speed: 3000 rpm
• Connection Type: Connector MS3106E 16S-1S or 18-1S
• Protection Class: IP54
• Temperature Range: 0 / 60 °C
