ELTRA EL63G5000Z5L8X3MR INCREMENTAL ENCODER

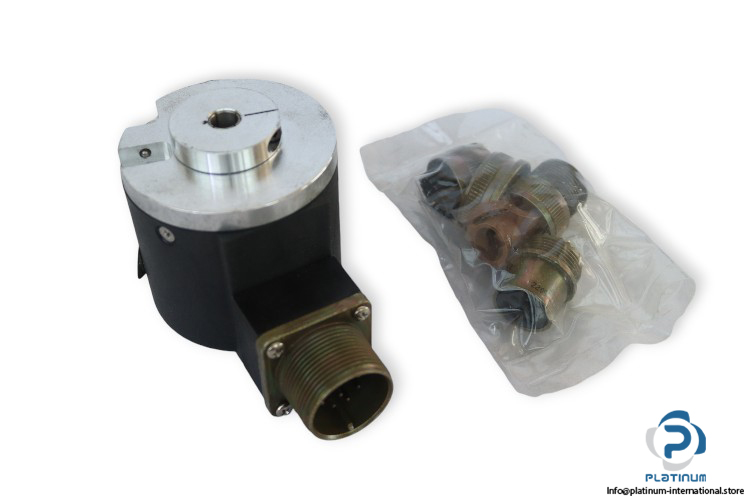

The ELTRA EL63G5000Z5L8X3MR is a high-resolution incremental encoder designed for precision rotary motion applications. Built with a durable hollow shaft and radial output, it offers a resolution of 5000 PPR and robust signal transmission via a MIL connector. This encoder is ideal for industrial automation systems requiring reliable and accurate position feedback.

Manufacturer: ELTRA
Type: Incremental Encoder

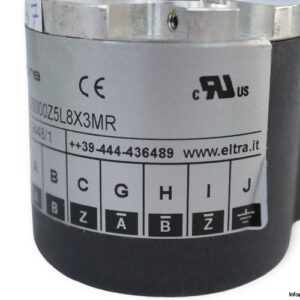

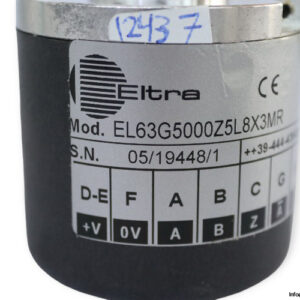

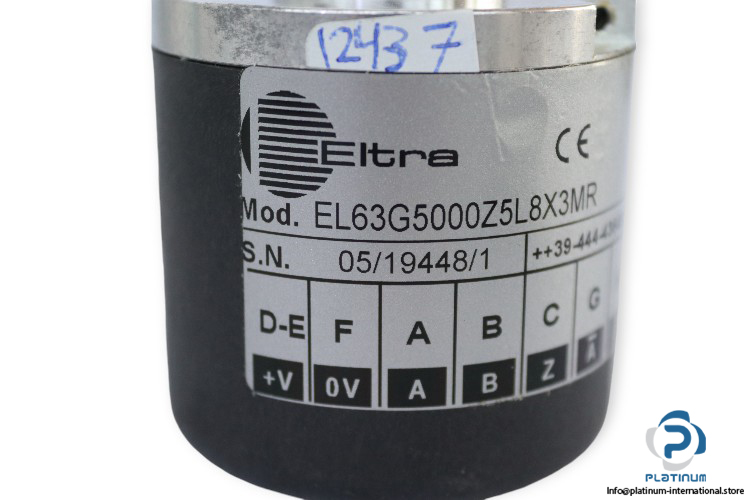

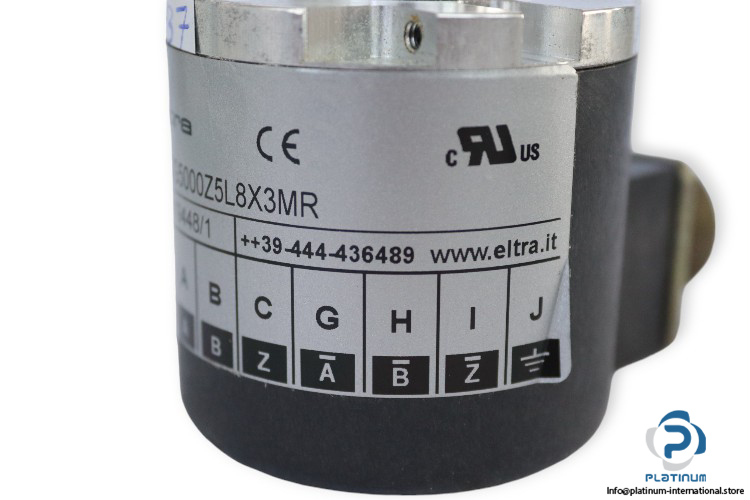

Model: EL63G5000Z5L8X3MR
Serial No.: 05/19448/1

Technical Information

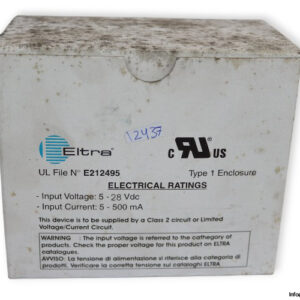

• Input Voltage: 5 / 28 V DC
• Input Current: 5 / 500 mA
• Principle of Operation: Incremental
• Resolution: 5000 PPR
• Max Output Frequency: 250 kHz
• Max Rotation Speed: 3000 RPM
• Measurement Type: Rotary
• Type of Sensor: Optical
• Electronic Interface: Line Driver

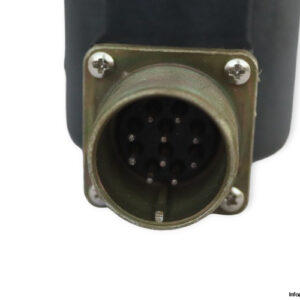

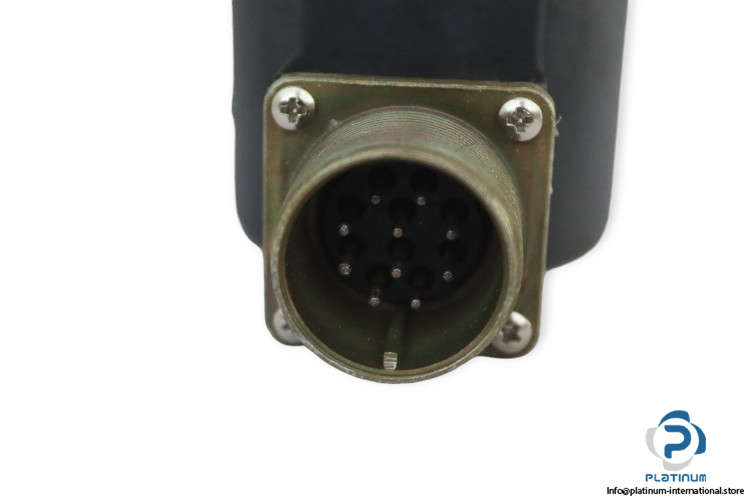

• Output Type: MIL Connector (10 Pins)
• Mounting Type: Torque Pin
• Shaft Type: Hollow Shaft
• Bore Diameter: 8 mm
• Direction Type: Radial
• Protection Degree: IP54
• Construction Size (Diameter): 63.5 mm
• Operating Temperature: -10 / +60°C
