ELTRA ERA350D8/24P6P8.683 INCREMENTAL LINEAR ENCODER

OPTICAL SCALE

ELTRA ERA350D8/24P6P8.683 optical scale offers linear incremental measurement over 350 mm range, with push-pull interface and high output frequency, designed for industrial-grade precision applications.

SKU: 991022 Category: Tags: , , , , , , , , , , , , , , , , , , ,
In stock: 2 pcs
Very low
Hurry! Only 2 left in stock.
Add to quote

ELTRA ERA350D8/24P6P8.683 OPTICAL SCALE

The ELTRA ERA350D8/24P6P8.683 is a high-precision optical scale engineered for linear measurement applications. Designed with incremental measuring principles and durable electronics, it ensures accuracy and performance even in demanding environments.

Manufacturer: ELTRA
Type: Optical Scale

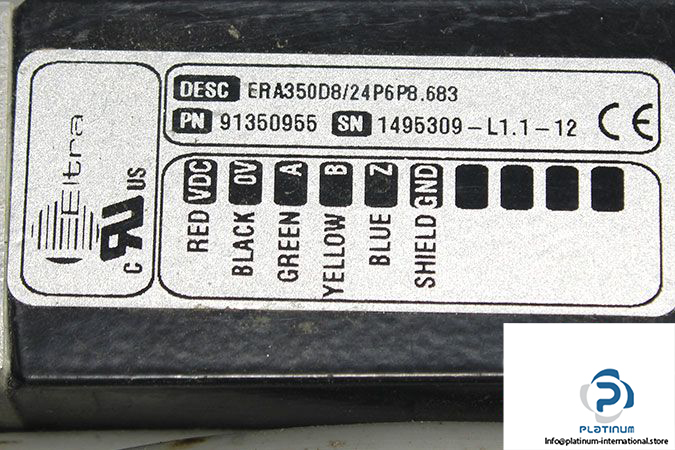

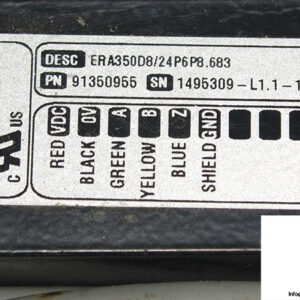

Model: ERA350D8/24P6P8.683
Part No.: 91350955
Serial No.: 1495309-L1.1-12

Technical Information

  • Measuring Range: 350 mm
  • Measurement Type: Linear
  • Principle of Operation: Incremental
  • Electronic Interface: Push Pull
  • Zero Pulse: Right Zero Index
  • Power Supply: 8“24 V DC

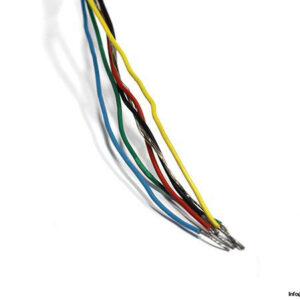

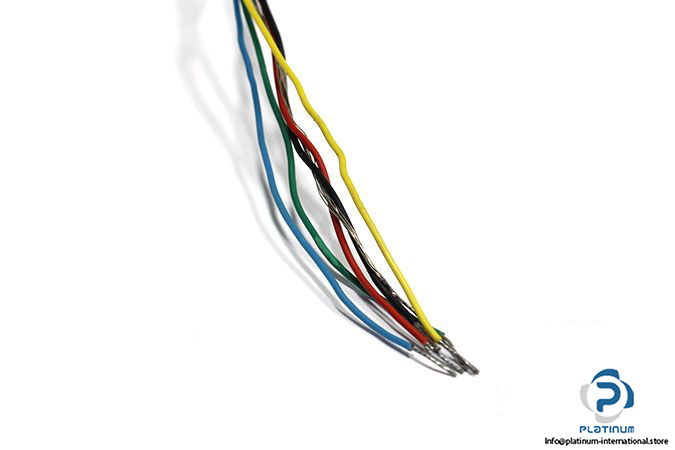

  • Electrical Connection: Cable 6-wire
  • Max Output Frequency: 100 kHz
  • Operating Temperature: -10 to 60 °C
Weight1,23 kg
