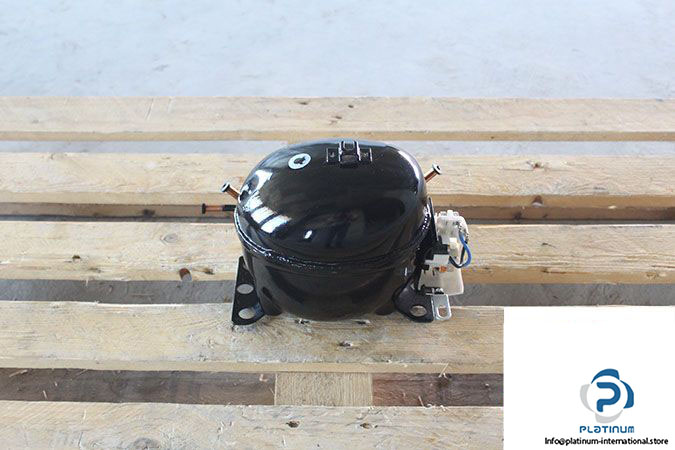

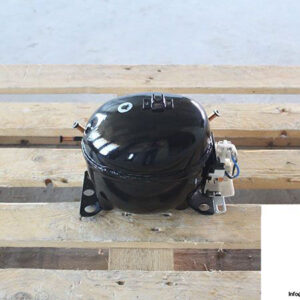

EMBRACO EMT2117GK COMPRESSOR
The Embraco EMT2117GK is a highly efficient single-phase compressor designed for use with R-404A refrigerant. Built to deliver optimal cooling performance, it features a compact design, quiet operation, and reliable engineering for commercial and industrial refrigeration systems.
Manufacturer: Embraco
Type: Compressor

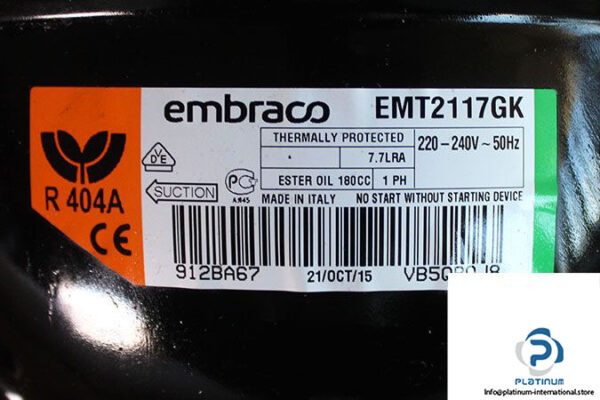

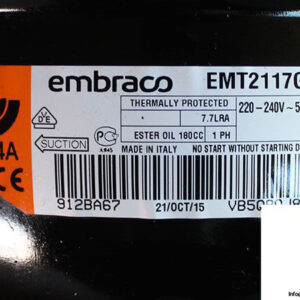

Model: EMT2117GK
Engineering Nr.: 912BA67
Phase: 1~ Single Phase
Technical Information
- Horsepower [Hp]: 1/4
- Rated Voltage [V]: 220 to 240
- Displacement [cm³]: 4.5
- Bore [mm]: 21.0
- Stroke [mm]: 6.5
- Nitrogen Charge [kgf/cm²]: 0.2 to 0.3
- Max Condensing Pressure Operating [kgf/cm²]: 25.7
- Max Condensing Pressure Peak [kgf/cm²]: 28.7
- Evaporating Temperature Range [°C]: -40 to 10
- Maximum Winding Temperature [°C]: 130
- Frequency [Hz]: 50
- LRA: 7.7 A
- Refrigerant: R-404A
- Lubricant Charge [ml]: 180
- Lubricant Type/Viscosity: ESTER / ISO22
