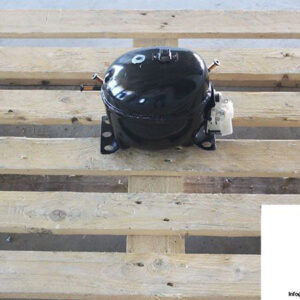

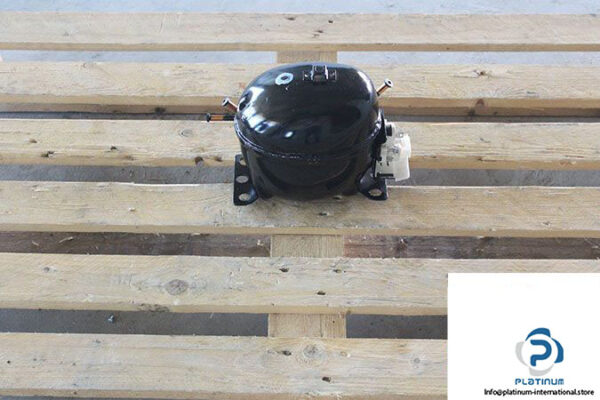

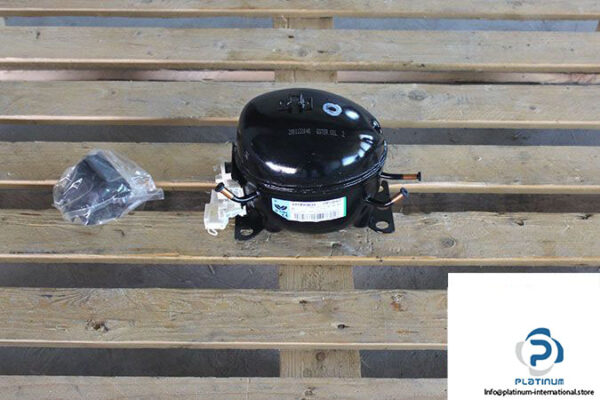

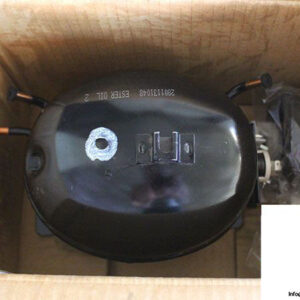

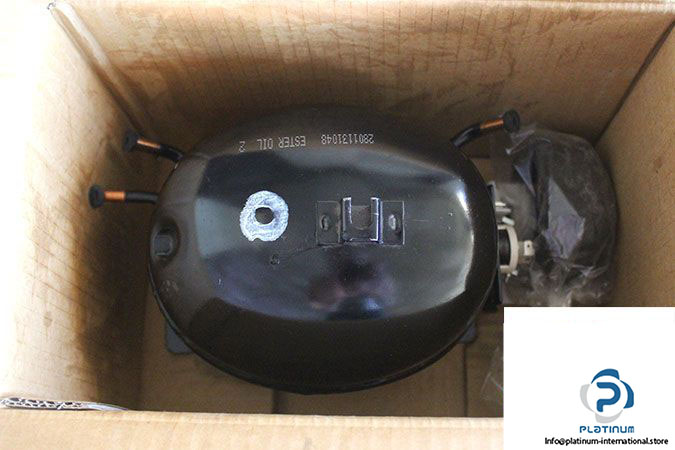

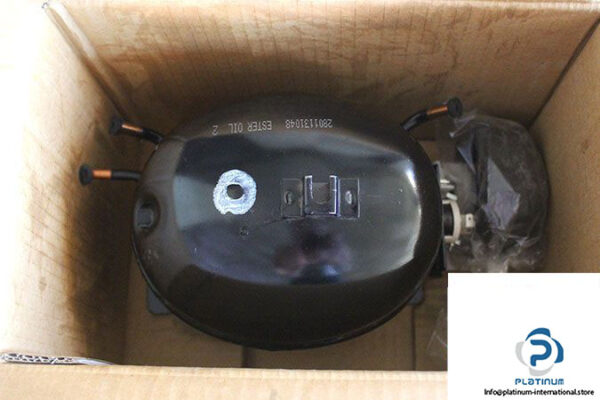

EMBRACO EMT36HLP COMPRESSOR
The Embraco EMT36HLP is a high-efficiency, single-phase refrigeration compressor engineered for commercial cooling systems. With a compact design and reliable thermal performance, it operates using R-404a refrigerant and ester oil, making it ideal for low to medium evaporating temperature applications.
Manufacturer: Embraco
Type: Compressor

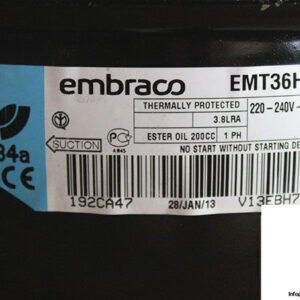

Model: EMT36HLP
Part No.: V13EBH7F
Engineering Nr.: 192CA47
Technical Information
- Phase: 1~ Single Phase
- Horsepower [Hp]: 1/10
- Power Input [W]: 108
- Rated Voltage [V]: 220 to 240
- Displacement [cm³]: 3.97
- Evaporating Temperature Range [°C]: -30 to 5
- Frequency [Hz]: 50
- Refrigerant: R-404a
- Lubricant Charge [ml]: 180
- Lubricant Type: POE 22
- Current: 3.8 A
- Oil Type: Ester oil 200CC
