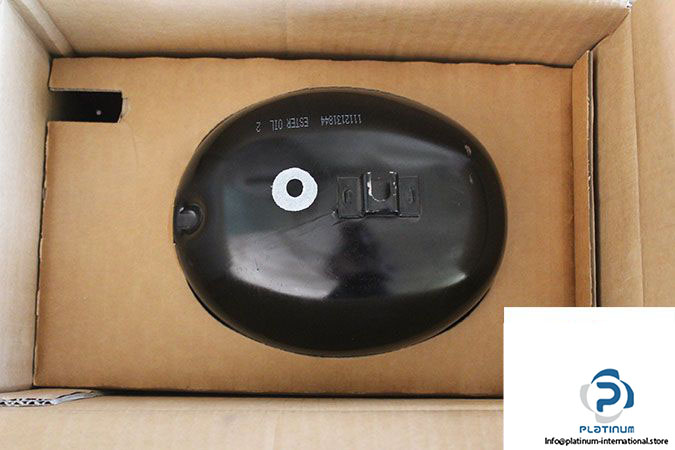

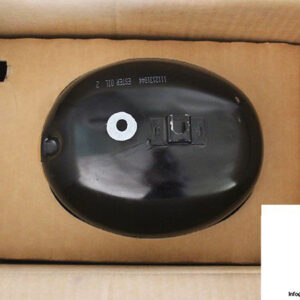

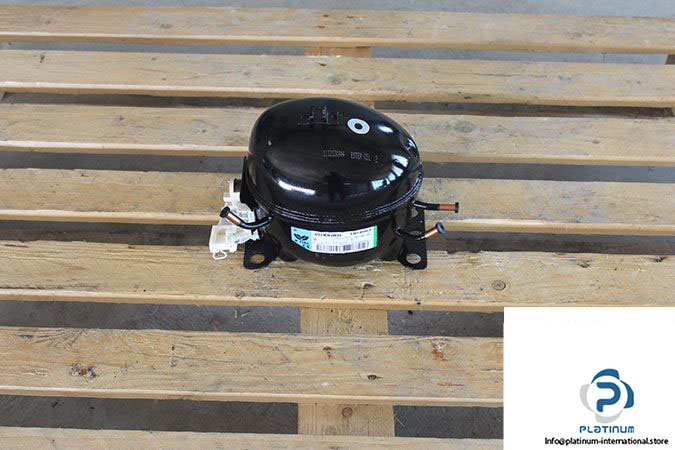

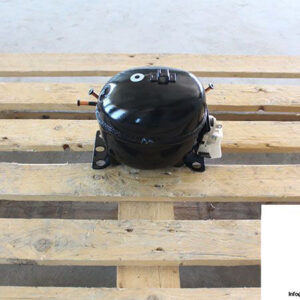

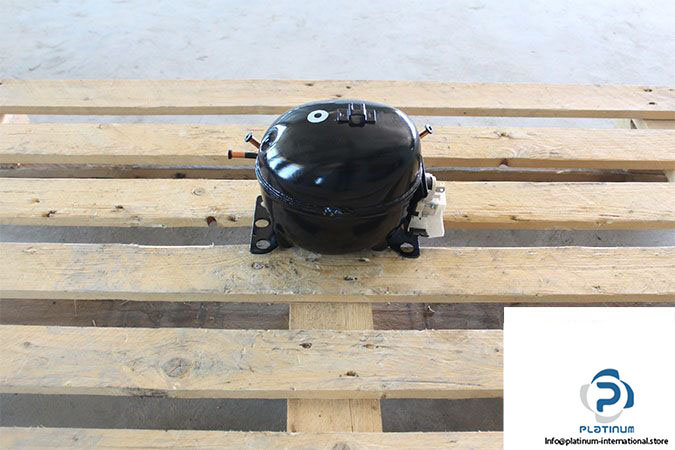

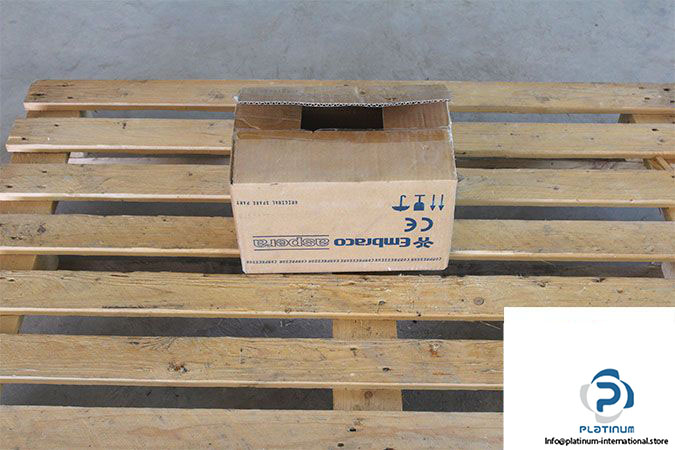

EMBRACO EMT49HLP COMPRESSOR
The Embraco EMT49HLP is a reliable, single-phase compressor engineered for high-efficiency cooling in low-temperature applications. With optimized displacement and mass flow, it ensures stable performance using R-134a refrigerant and ester-based lubrication. Ideal for refrigeration systems requiring dependable and compact cooling power.

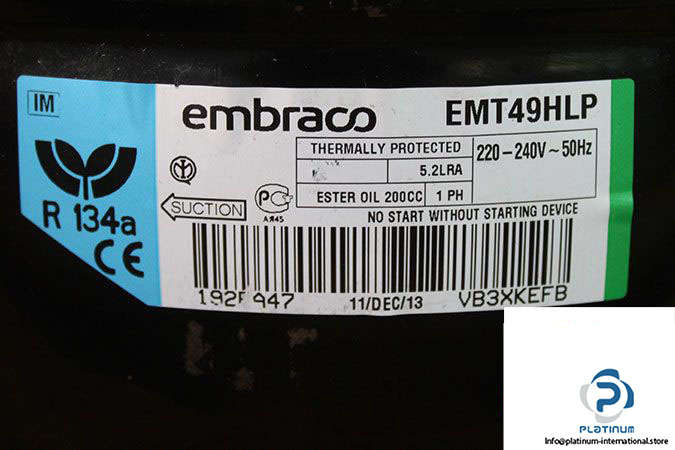

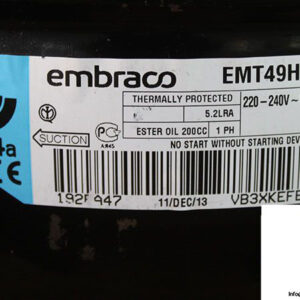

Manufacturer: Embraco
Type: Compressors
Model: EMT49HLP
Part No.: VB3XXEFB
Engineering Nr.: 192EA47
Phase: 1~ Single Phase
Technical Information
- Rated Voltage: 220“240 V
- Cooling Capacity: 151.05 W
- Displacement: 5.56 cm³
- Mass Flow Rate: 2.93 kg/h
- Range Temperature: -30 to -5 °C
- Frequency: 50 Hz
- LRA: 5.2
- Refrigerant: R-134a
- Oil Charge: 180 ml
- Lubricant Type: Polyester ISO22
- Oil: Ester oil 200CC
