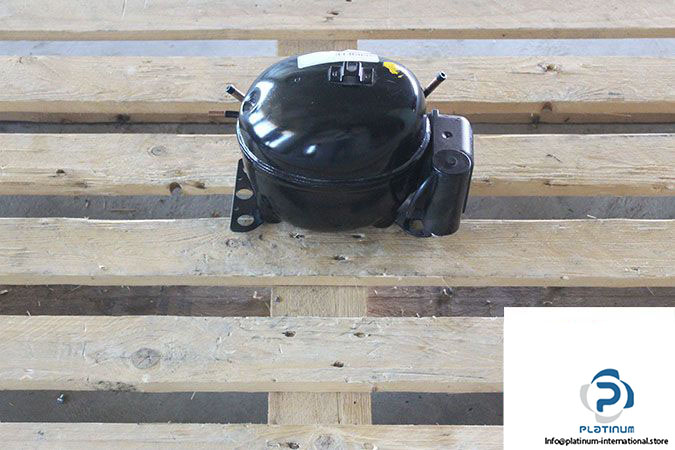

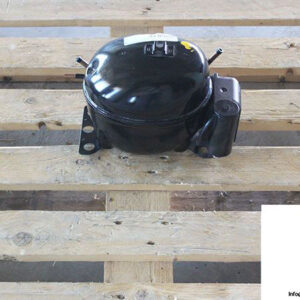

EMBRACO EMT6144Z COMPRESSOR
The Embraco EMT6144Z is a high-efficiency single-phase compressor engineered for use in refrigeration systems. Designed for consistent performance with R-134a refrigerant, this compact unit delivers 1/5 Hp with 222 W of rated power and 5.2 cm³ displacement. It offers reliable thermal protection and is lubricated with POE22, ensuring longevity and operational stability in demanding cooling environments.
Manufacturer: Embraco
Type: Compressors

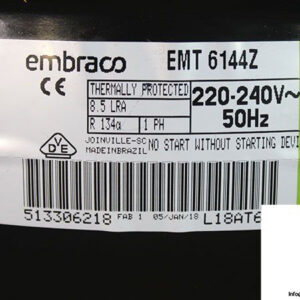

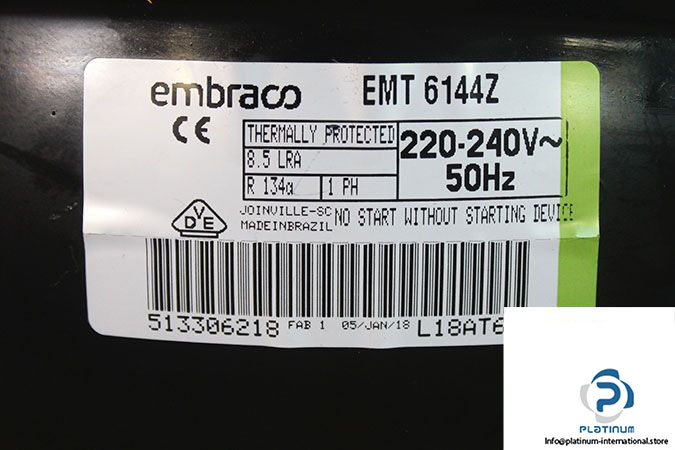

Model: EMT6144Z
Part No.: 513306218
Engineering Nr.: L18AT6SK
Phase: 1~ Single Phase
Technical Information
- Horsepower [Hp]: 1/5
- Rated Voltage [V]: 220 to 240
- LRA: 8.5 A
- Displacement [cm³]: 5.2
- Rated Power [W]: 222
- Maximum Winding Temperature [°C]: 130
- Frequency [Hz]: 50
- Refrigerant: R-134a
- Lubricant Charge [ml]: 180
- Lubricants Type: POE22
