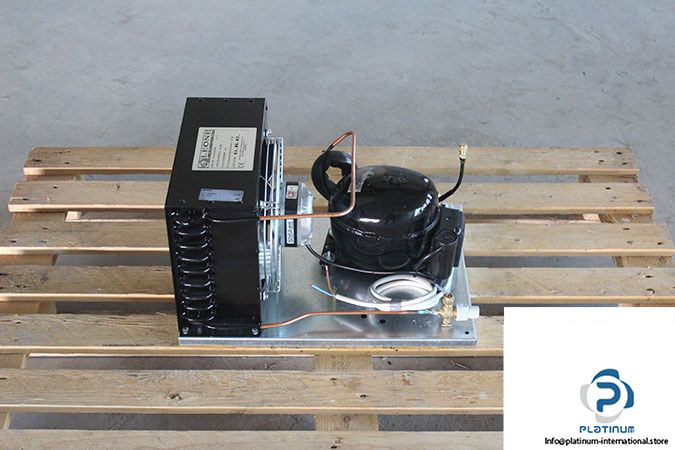

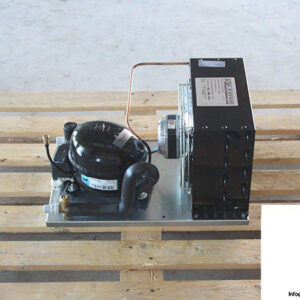

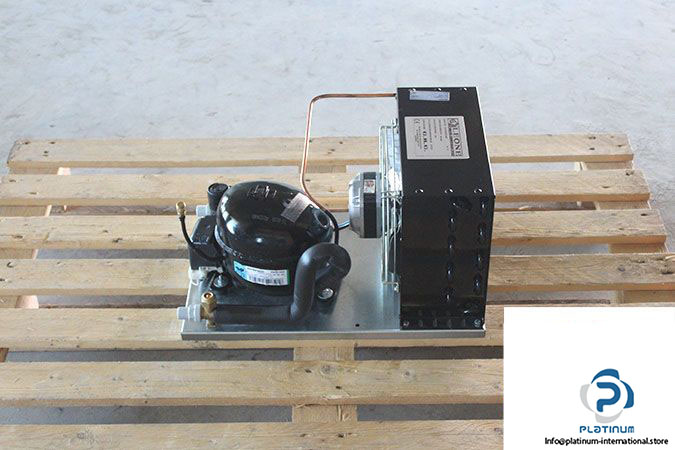

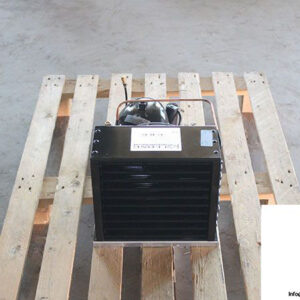

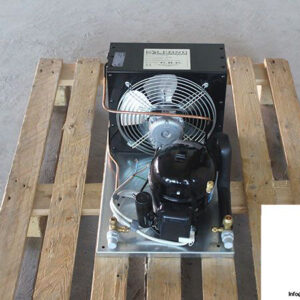

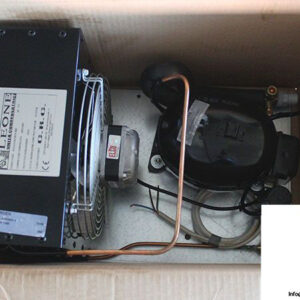

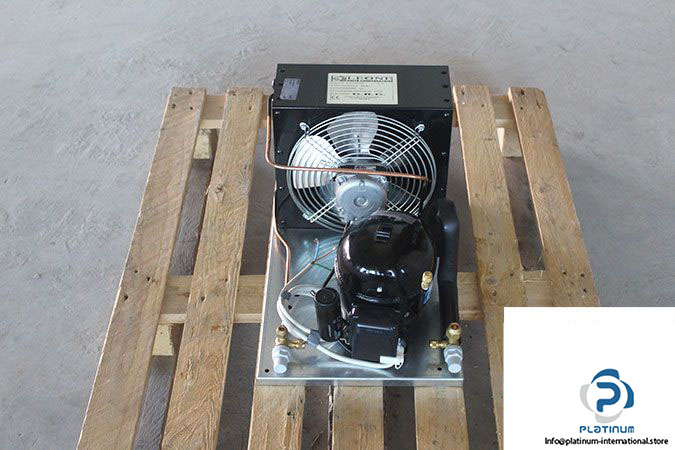

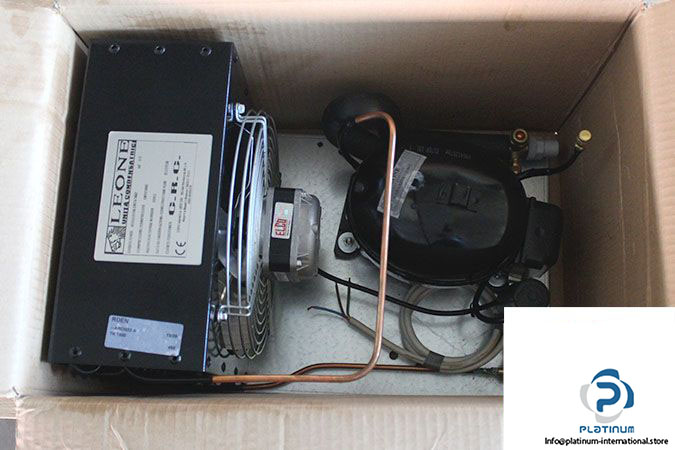

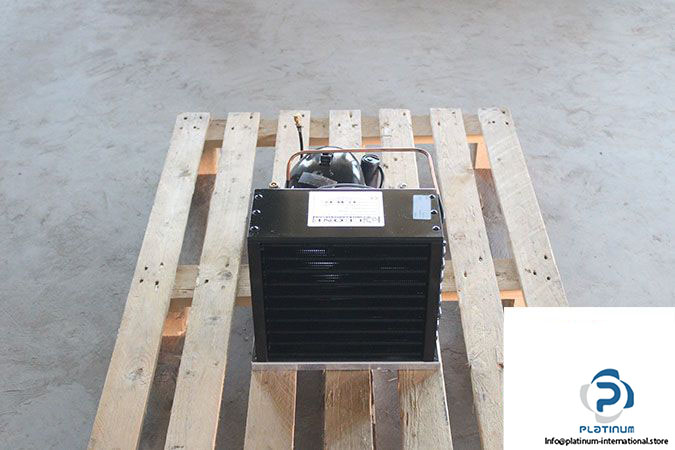

EMBRACO EMT6144Z COMPRESSOR WITH ELCO NET2T12PVN001 MOTOR

This Embraco compressor unit is engineered for refrigeration systems requiring reliability in medium to low temperature ranges. Combined with an Elco shaded pole motor, this setup is ideal for commercial cooling applications that demand durability, consistent performance, and efficient operation under variable loads.

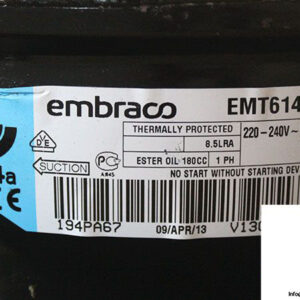

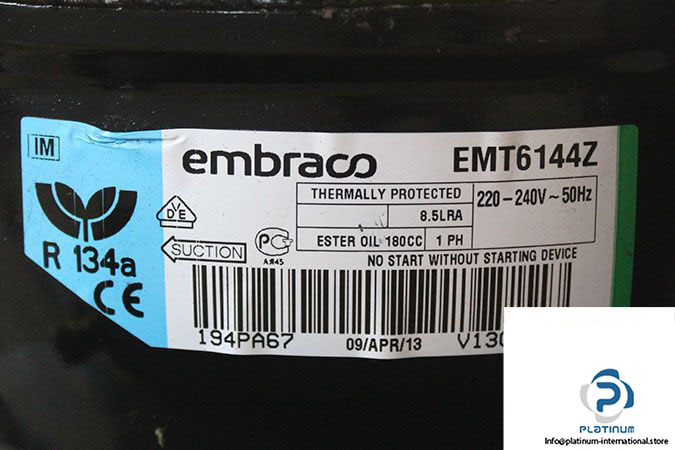

Manufacturer: Embraco
Type: Compressors
Model: EMT6144Z
Engineering Nr.: 194PA67
Phase: 1~ Single Phase

Technical Information

• Horsepower [Hp]: 1/5
• Rated Voltage [V]: 220 to 240
• Displacement [cm³]: 4.5
• Bore [mm]: 21.0
• Stroke [mm]: 15.0
• Range Temperature [°C]: -15 to 10
• Lubricant Type/Viscosity: ESTER / ISO22
• Locked Rotor Amperage [A]: 8.5
• Frequency [Hz]: 50
• Refrigerant: R-134a
• Lubricant Charge [ml]: 180

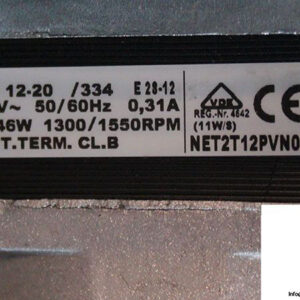

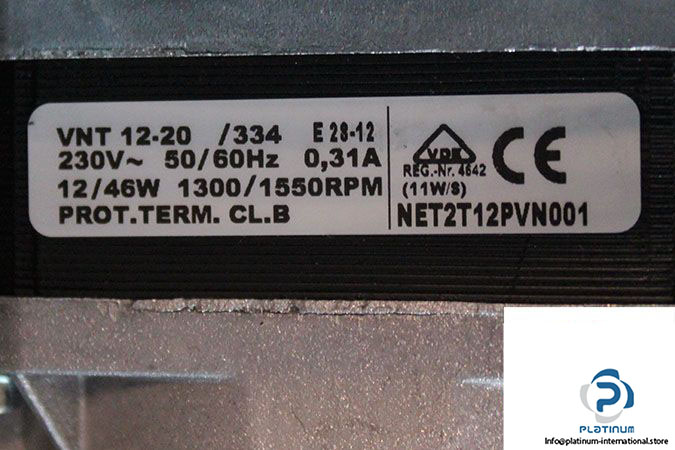

Attached Motor: ELCO NET2T12PVN001

• Manufacturer: Elco
• Type: Shaded Pole Motor
• Model: NET2T12PVN001
• Type Motor: VNT12-20/334
• Nominal Voltage [V]: 230
• Rated Current [A]: 0.31
• Power In [W]: 46
• Power Output [W]: 12
• Frequency [Hz]: 50/60
• Speed [rpm]: 1300/1550
• Degree of Protection [IP]: 44
• Insulation Class: B
