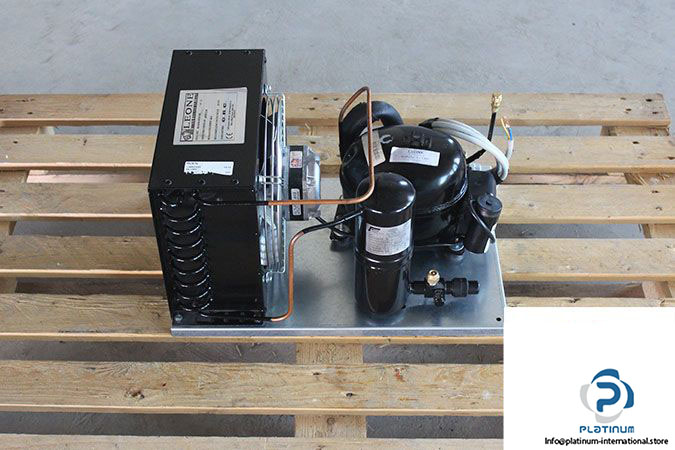

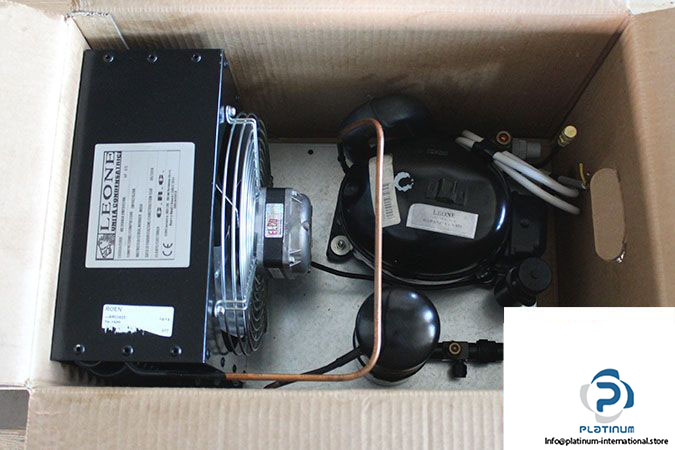

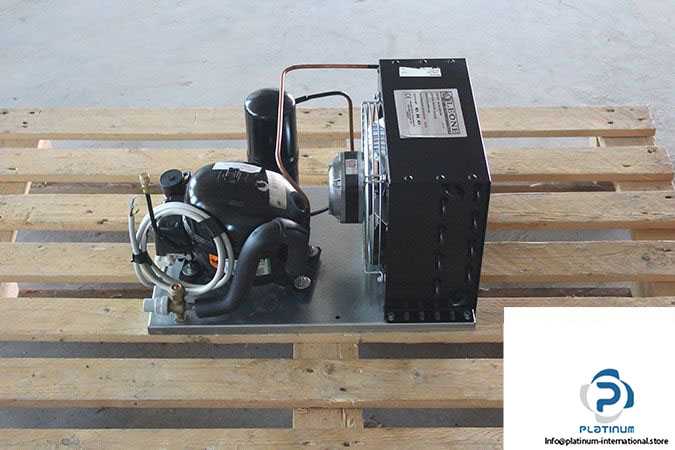

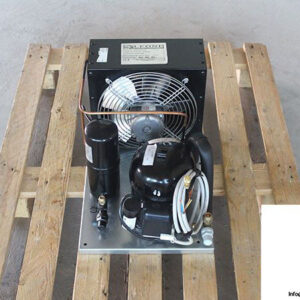

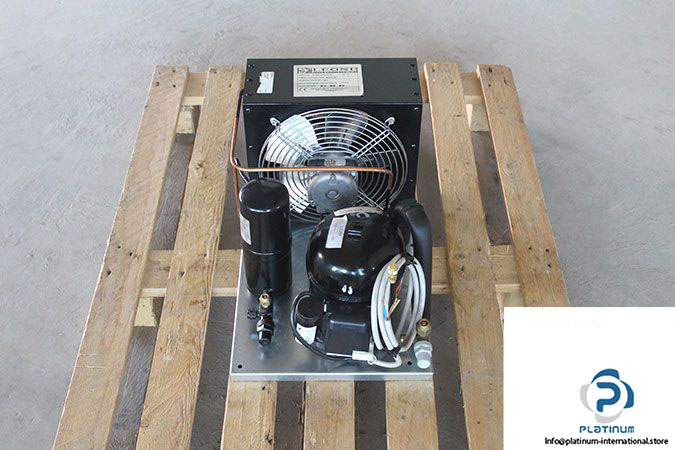

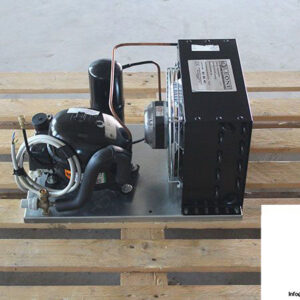

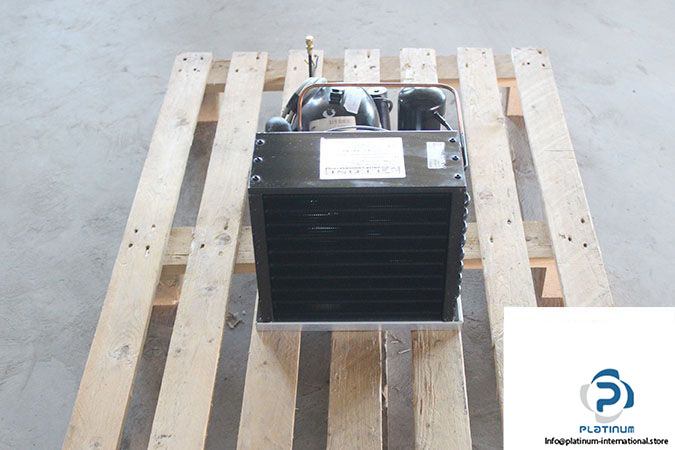

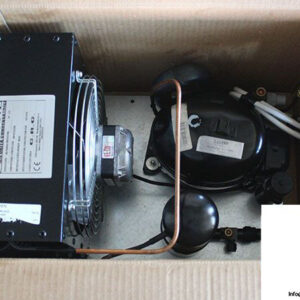

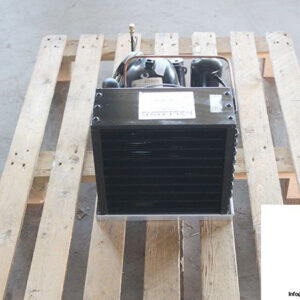

EMBRACO EMT6152GK COMPRESSOR KIT

The Embraco EMT6152GK is a robust refrigeration compressor ideal for medium and low-temperature applications. This model is engineered for high efficiency and is paired with an Elco shaded pole motor and Frigomec suction accumulator to ensure complete system performance and protection.

Manufacturer: Embraco
Type: Compressor

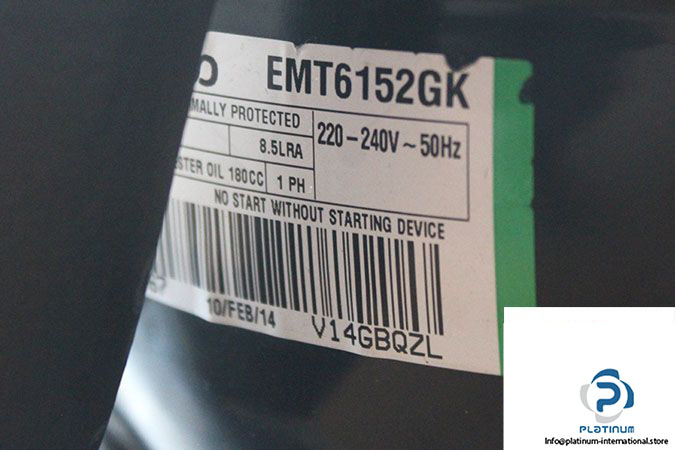

Model: EMT6152GK
Part No.: V14GBQZL
Code: UCLLE0404- EMT6152GK
Engineering Nr.: 912FA67
Phase: 1~ Single Phase

Technical Information

• Horsepower [Hp]: 1/4
• Rated Voltage [V]: 220 to 240
• Displacement [cm³]: 4.5
• Bore [mm]: 21.0
• Stroke [mm]: 13.0
• Range Temperature [°C]: -25 to 10
• Locked Rotor Amperage [A]: 8.5
• Lubricants Type/Viscosity: ESTER / ISO22
• Lubricant Charge [ml]: 180
• Frequency [Hz]: 50
• Refrigerant: R-404a

Included Components

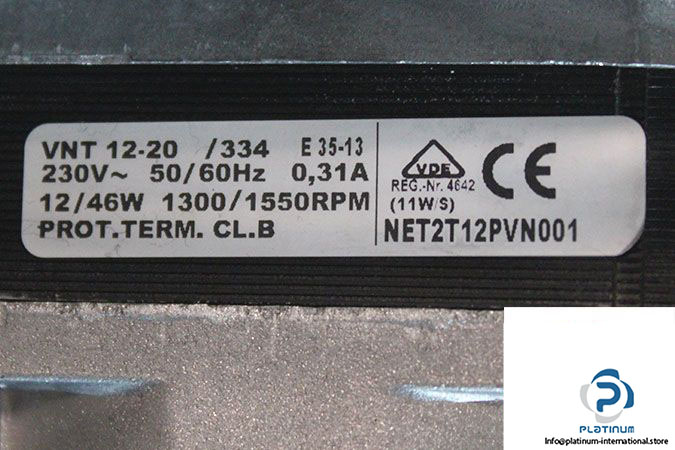

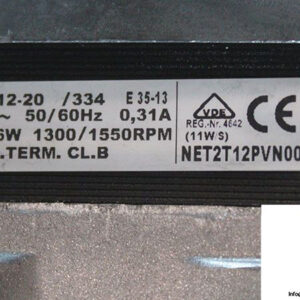

ELCO NET2T12PVN001 SHADED POLE MOTOR
Manufacturer: Elco
Type: Shaded Pole Motor
Model: NET2T12PVN001
Motor Type: VNT12-20/334

• Nominal Voltage [V]: 230
• Rated Current [A]: 0.31
• Power Input [W]: 46
• Power Output [W]: 12
• Frequency [Hz]: 50/60
• Speed [rpm]: 1300/1550
• Degree of Protection [IP]: 44
• Insulation Class: B

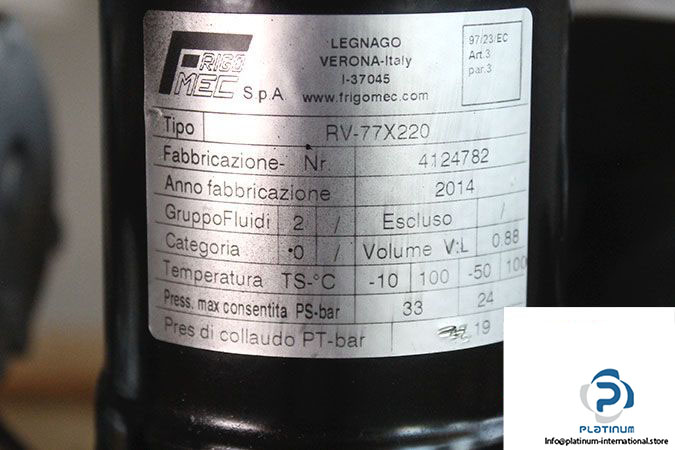

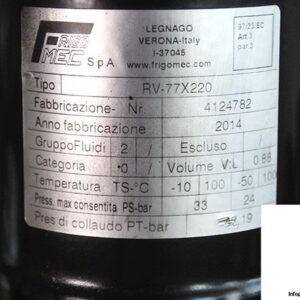

FRIGOMEC RV-77X220 SUCTION ACCUMULATOR
Manufacturer: Frigomec
Type: Suction Accumulator
Model: RV-77X220

• Fluids Group: 2
• Volume [L]: 0.88
• Temperature [°C]: -10 to 120 / -50 to 100
• Max Pressure [bar]: 33 / 24
• Test Pressure [bar]: 47.19
