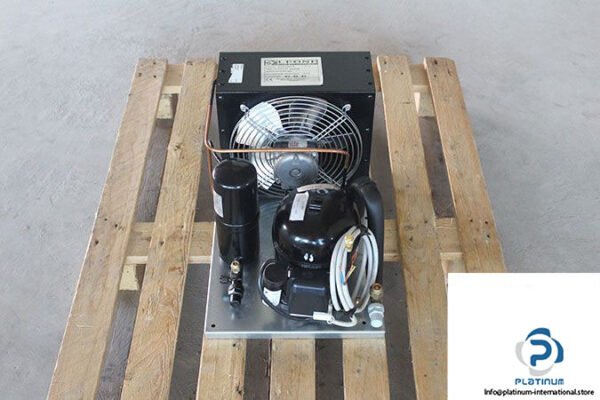

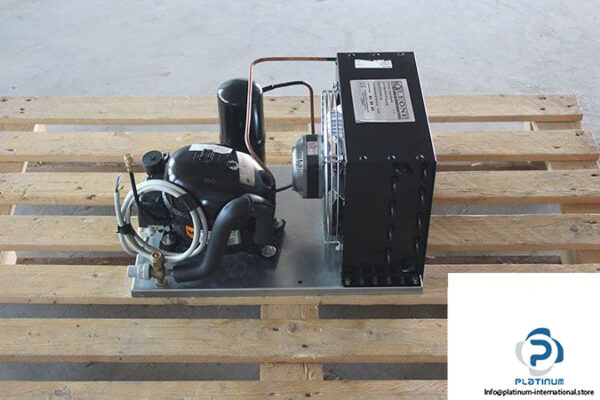

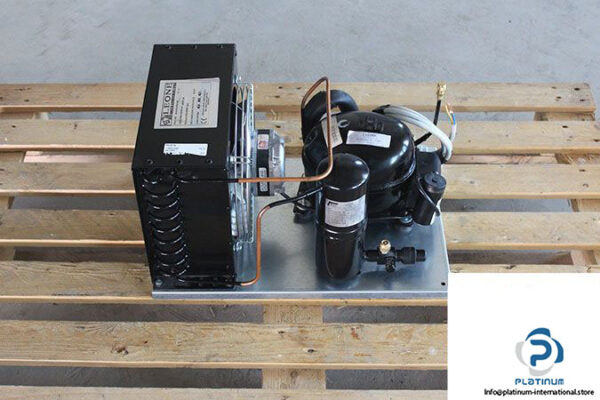

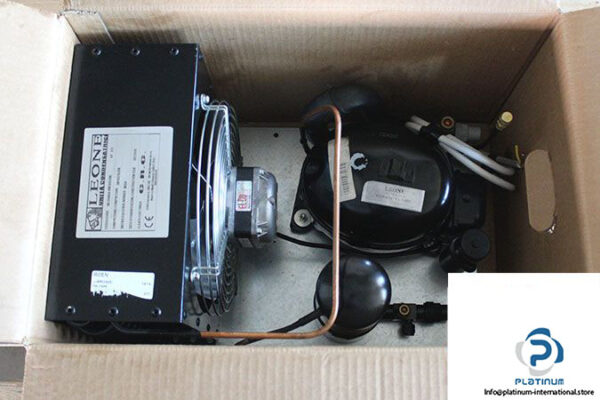

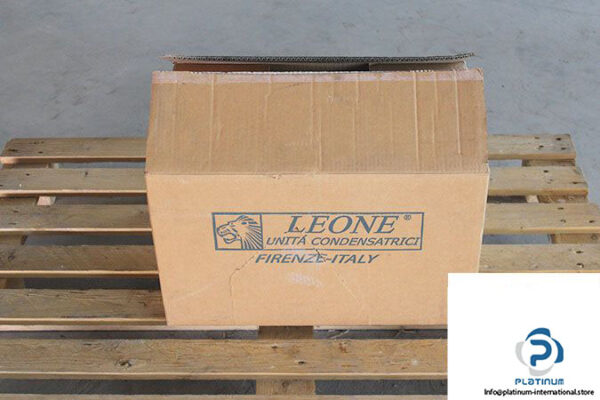

EMBRACO EMT6152GK COMPRESSOR KIT
The Embraco EMT6152GK is a robust refrigeration compressor ideal for medium and low-temperature applications. This model is engineered for high efficiency and is paired with an Elco shaded pole motor and Frigomec suction accumulator to ensure complete system performance and protection.

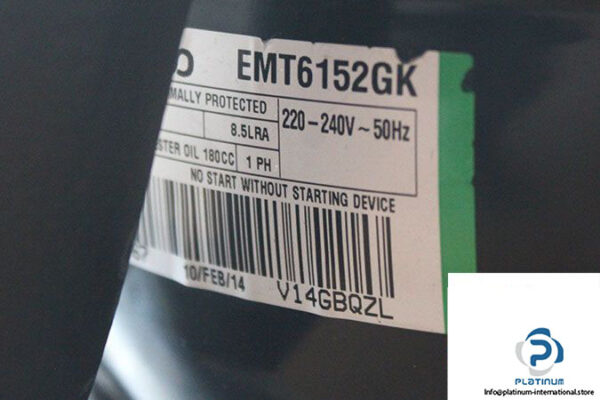

Manufacturer: Embraco
Type: Compressor
Model: EMT6152GK
Part No.: V14GBQZL
Code: UCLLE0404- EMT6152GK
Engineering Nr.: 912FA67
Phase: 1~ Single Phase
Technical Information
- Horsepower [Hp]: 1/4
- Rated Voltage [V]: 220 to 240
- Displacement [cm³]: 4.5
- Bore [mm]: 21.0
- Stroke [mm]: 13.0
- Range Temperature [°C]: -25 to 10
- Locked Rotor Amperage [A]: 8.5
- Lubricants Type/Viscosity: ESTER / ISO22
- Lubricant Charge [ml]: 180
- Frequency [Hz]: 50
- Refrigerant: R-404a
Included Components

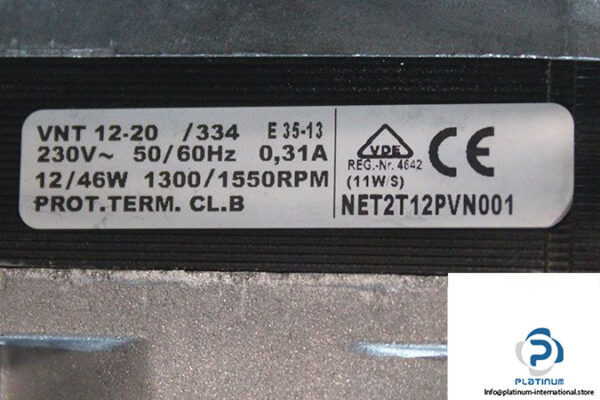

ELCO NET2T12PVN001 SHADED POLE MOTOR
Manufacturer: Elco
Type: Shaded Pole Motor
Model: NET2T12PVN001
Motor Type: VNT12-20/334
- Nominal Voltage [V]: 230
- Rated Current [A]: 0.31
- Power Input [W]: 46
- Power Output [W]: 12
- Frequency [Hz]: 50/60
- Speed [rpm]: 1300/1550
- Degree of Protection [IP]: 44
- Insulation Class: B

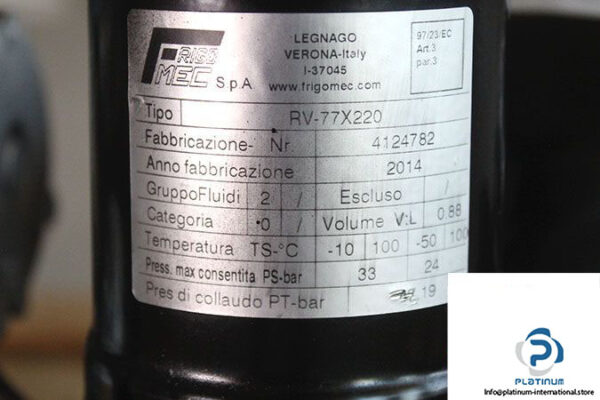

FRIGOMEC RV-77X220 SUCTION ACCUMULATOR
Manufacturer: Frigomec
Type: Suction Accumulator
Model: RV-77X220
- Fluids Group: 2
- Volume [L]: 0.88
- Temperature [°C]: -10 to 120 / -50 to 100
- Max Pressure [bar]: 33 / 24
- Test Pressure [bar]: 47.19
