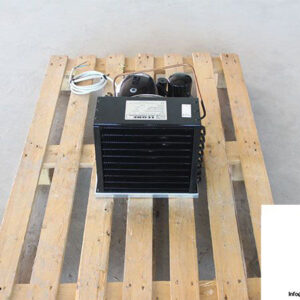

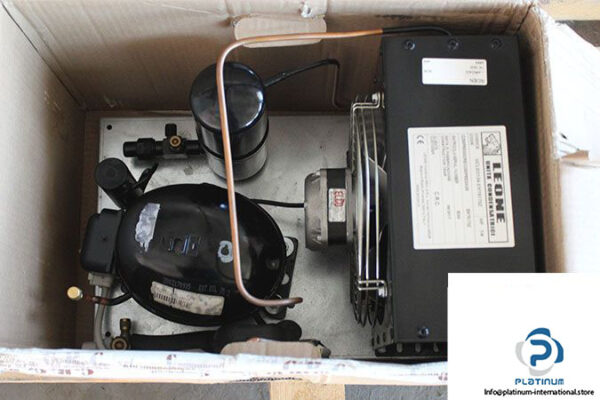

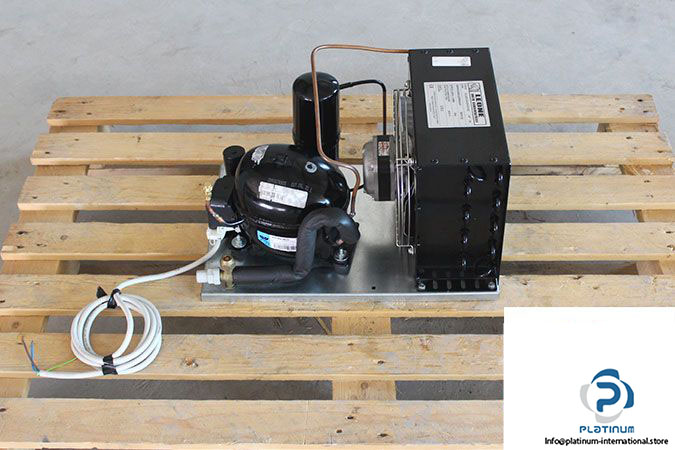

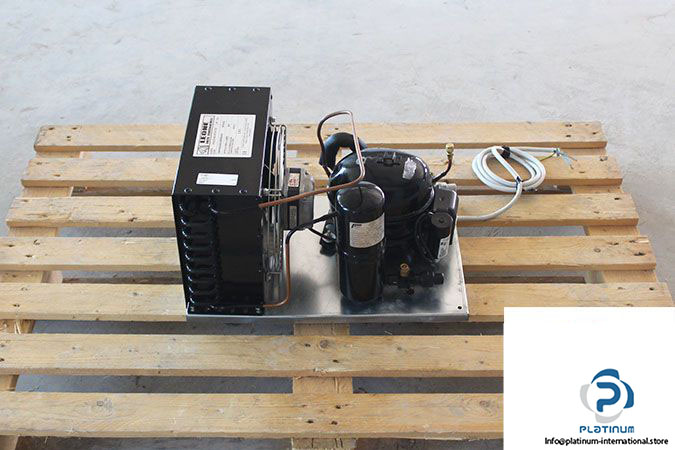

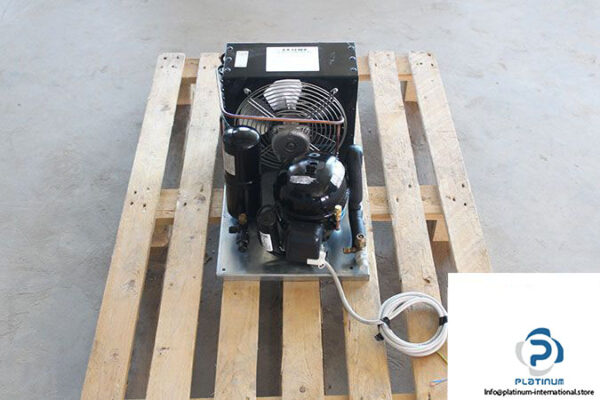

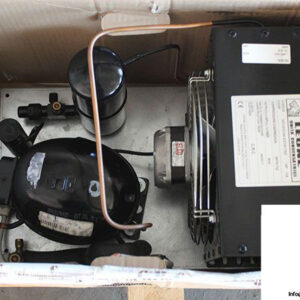

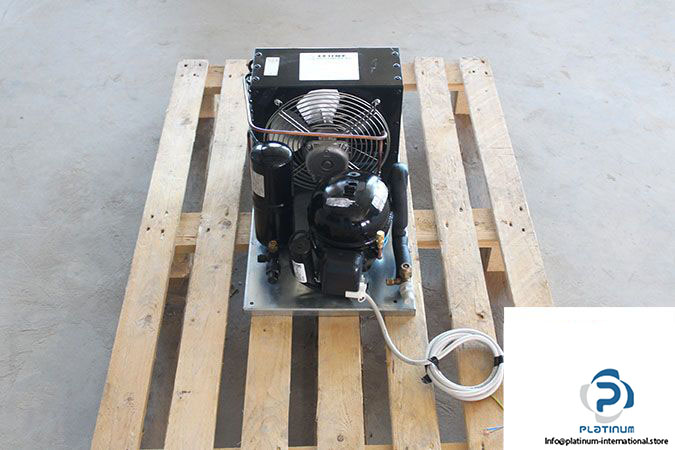

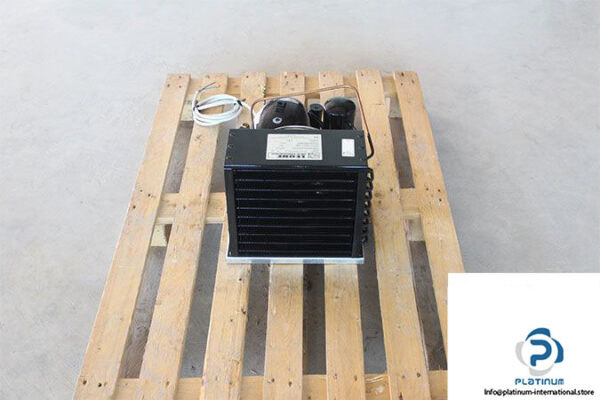

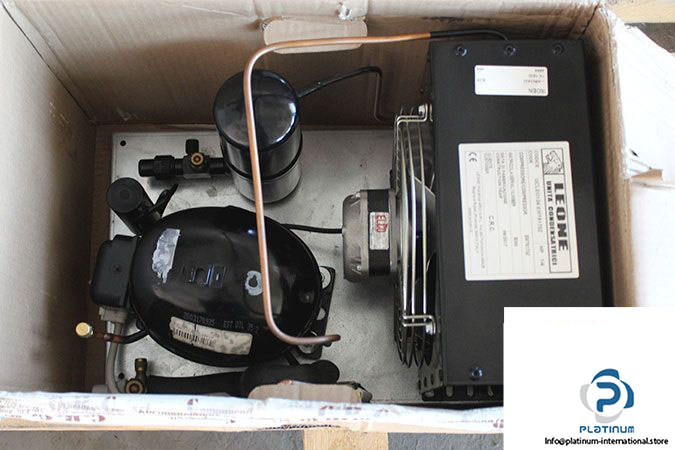

EMBRACO EMT6170Z COMPRESSOR PACKAGE

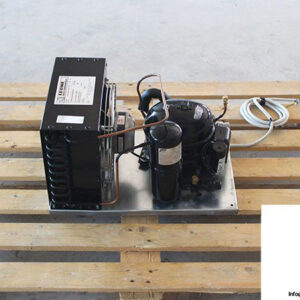

This complete refrigeration compressor solution features the Embraco EMT6170Z compressor, Elco shaded pole motor, and Frigomec RV-77X220 suction accumulator ” engineered for efficient cooling, reliability, and seamless integration in professional refrigeration systems.

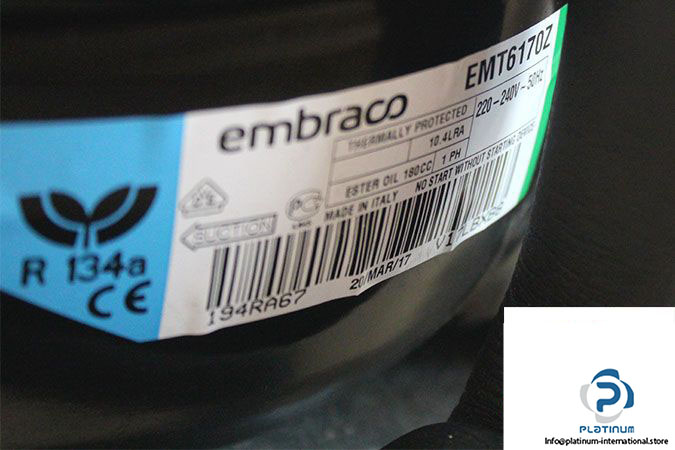

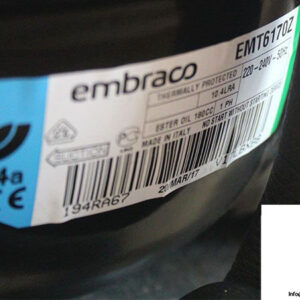

Manufacturer: Embraco
Type: Compressor
Model: EMT6170Z
Engineering Nr.: 194VA67
Phase: 1~ Single Phase

Technical Information

• Horsepower [Hp]: 1/3 “
• Rated Voltage [V]: 200-240
• Displacement [cm³]: 7.69
• Bore [mm]: 24.0
• Stroke [mm]: 17.0
• Range Temperature [°C]: -15 / 10
• Locked Rotor Amperage [A]: 10.4
• Lubricants Type/Viscosity: ESTER / ISO22
• Frequency [Hz]: 50
• Refrigerant: R-134a
• Lubricant Charge [ml]: 180

Attachments:

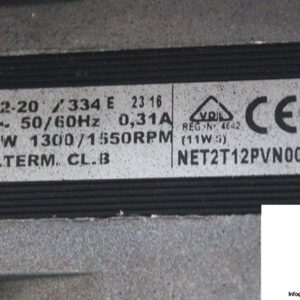

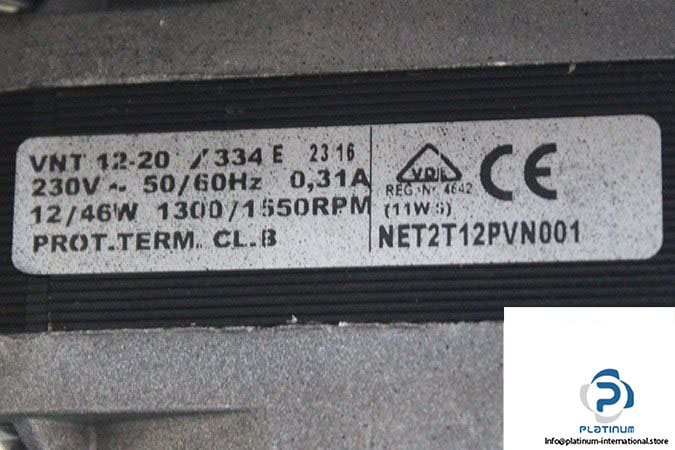

Manufacturer: Elco
Type: Shaded Pole Motor
Model: NET2T12PVN001
Motor Type: VNT12-20/334

• Nominal Voltage [V]: 230
• Rated Current [A]: 0.31
• Power Input [W]: 46
• Power Output [W]: 12
• Frequency [Hz]: 50/60
• Speed [rpm]: 1300/1550
• Degree of Protection [IP]: 44
• Insulation Class: B

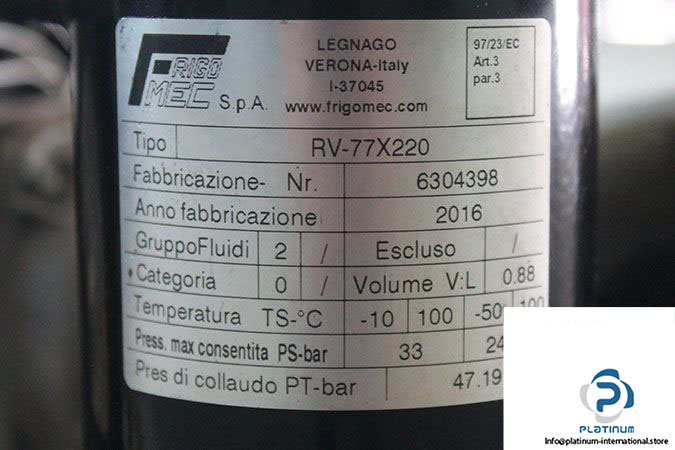

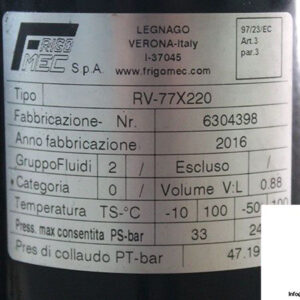

Manufacturer: Frigomec
Type: Suction Accumulator
Model: RV-77X220
Part No.: 6304398

• Fluids Group: 2
• Volume [L]: 0.88
• Temperature [°C]: -10 / 120 / -50 / 100
• Max Pressure [bar]: 33 / 24
• Test Pressure [bar]: 47.19
