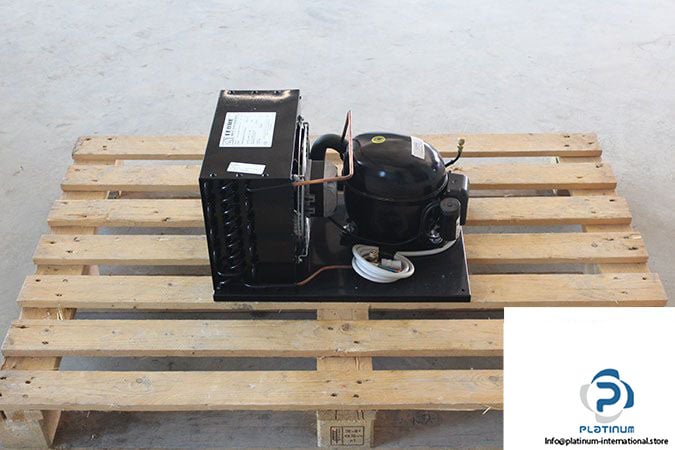

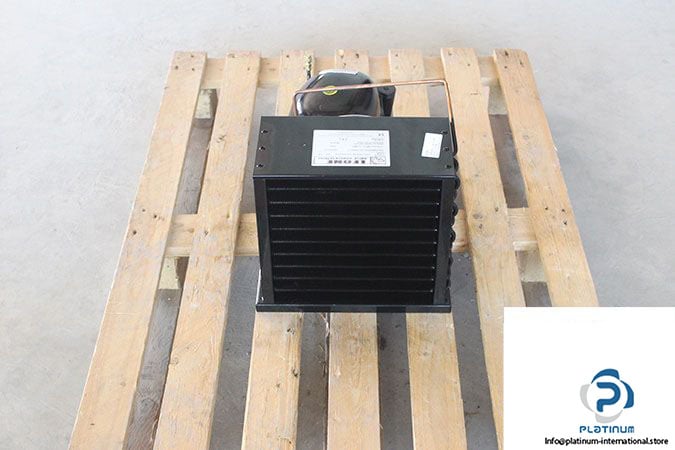

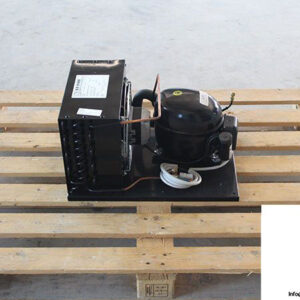

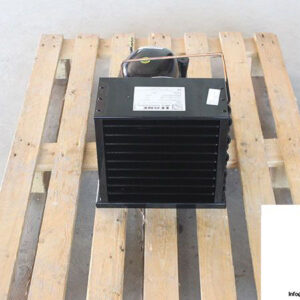

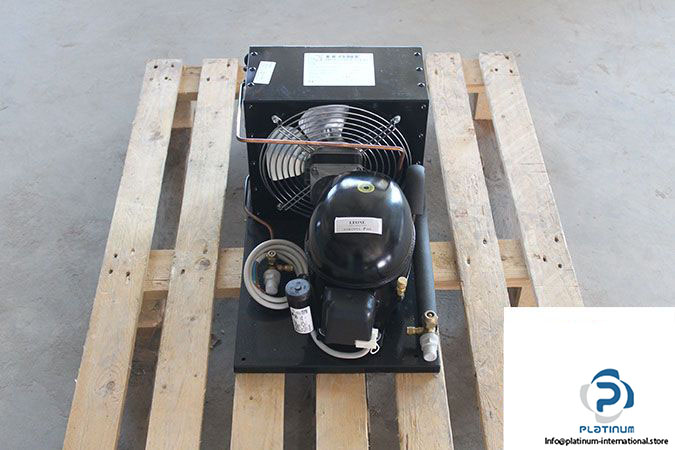

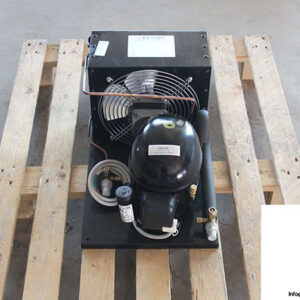

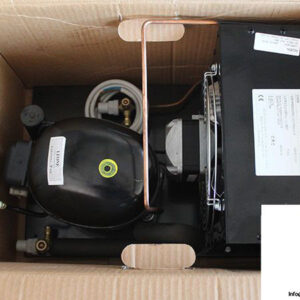

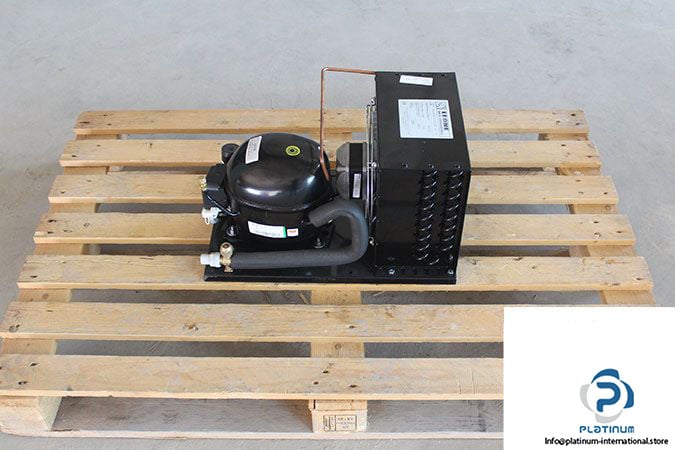

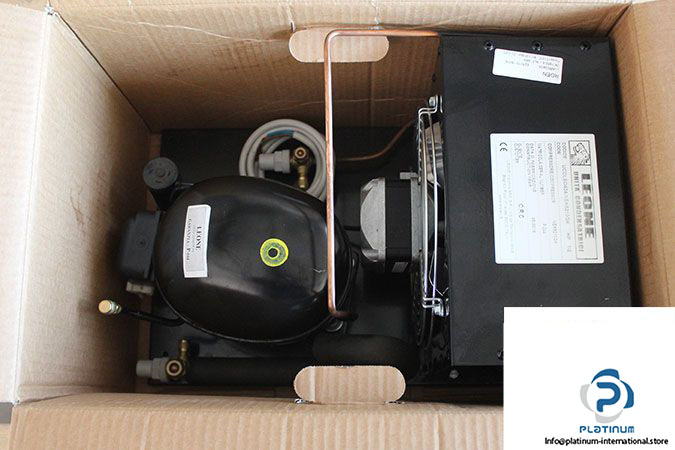

EMBRACO NEK6210GK COMPRESSOR WITH EBMPAPST FAN MOTOR

This Embraco NEK6210GK single-phase compressor is engineered for reliable refrigeration performance in low-temperature environments, featuring R-404a compatibility, compact design, and robust cooling efficiency. It comes equipped with an Ebmpapst M4Q045-CF01-01 axial fan motor to ensure effective ventilation, optimized for energy efficiency and durability under varying ambient conditions.

Manufacturer: Embraco
Type: Compressor

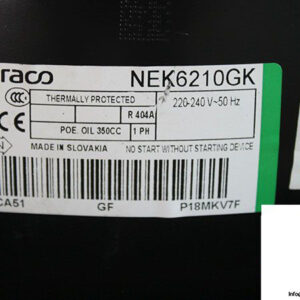

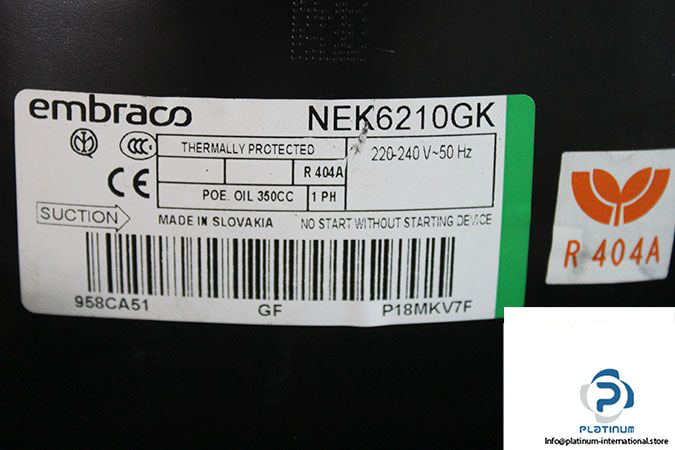

Model: NEK6210GK

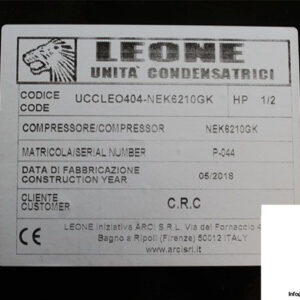

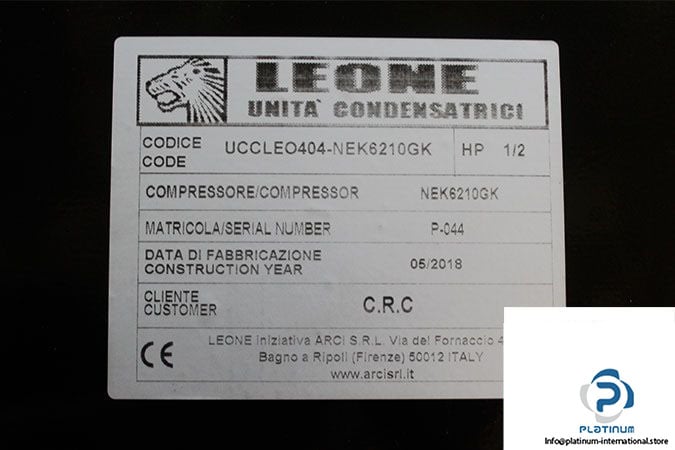

Code: UCCLO404- NEK6210GK
Part No.: P18MKV7F
Engineering Nr.: 958CA51
Phase: 1~ Single Phase

Technical Information “ Compressor

• Horsepower: 1/2 Hp
• Rated Voltage: 220 to 240 V
• Displacement: 8.77 cm³
• Bore: 26.497 mm
• Stroke: 7.96 mm
• Temperature Range: -20°C to 0°C
• Lubricant Type/Viscosity: ESTER / ISO22
• Frequency: 50 Hz
• Refrigerant: R-404a
• Lubricant Charge: 350 ml

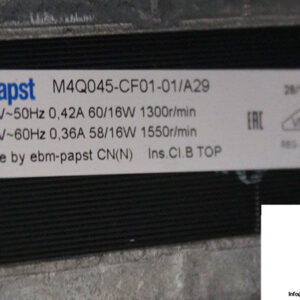

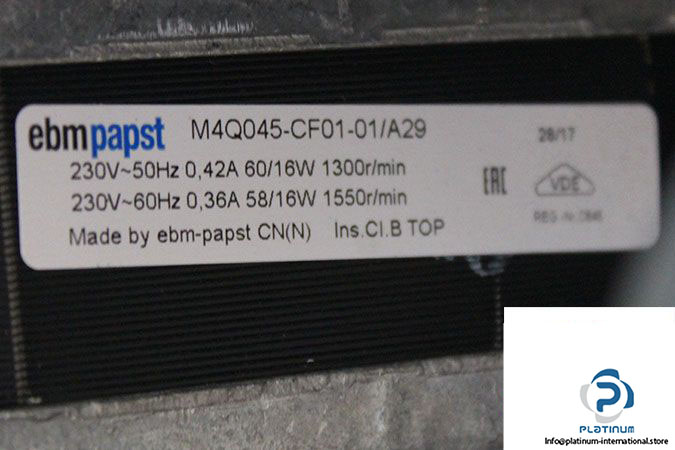

Attachment: EBM PAPST M4Q045-CF01-01/A29 MOTOR FAN

Technical Information “ Fan Motor

• Manufacturer: Ebmpapst
• Type: Motor Fan
• Model: M4Q045-CF01-01
• Nominal Voltage: 230/230 V
• Current Draw: 0.42/0.36 A
• Power Consumption: 60/58 W
• Power Output: 16/16 W
• Frequency: 50/60 Hz
• Speed: 1300/1550 rpm
• Ambient Temperature: -30°C to 40°C
• Protection Class: IP42
• Insulation Class: B
