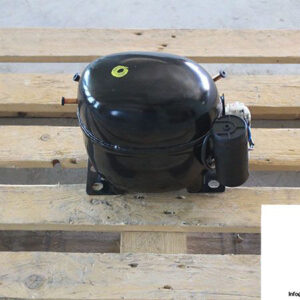

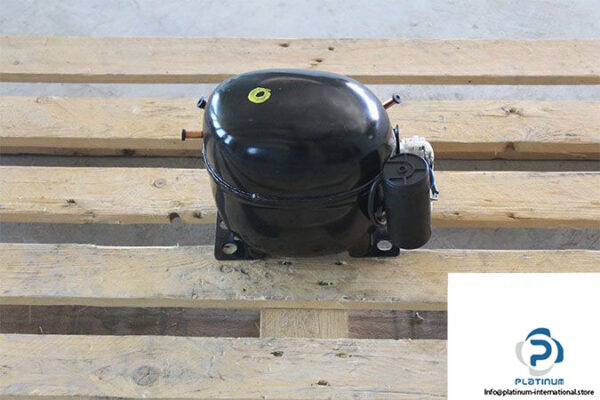

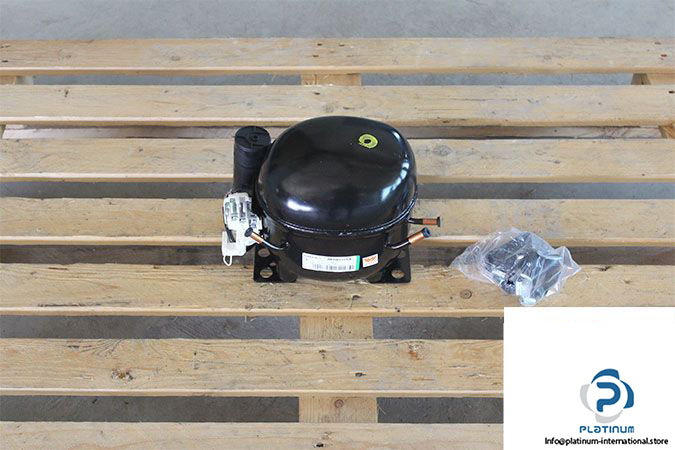

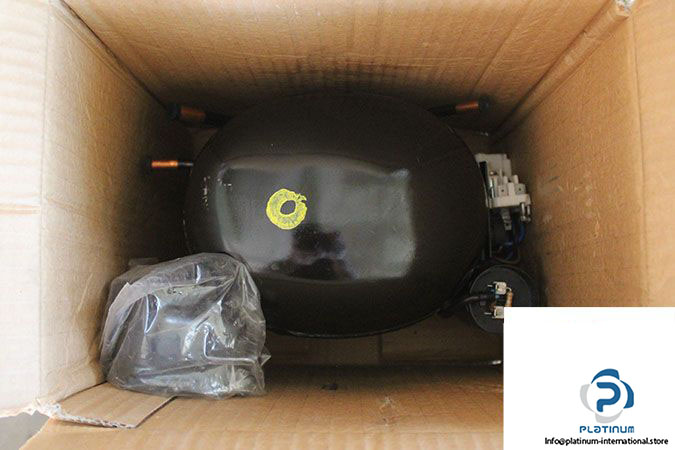

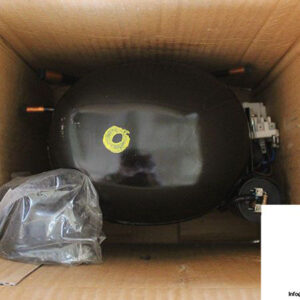

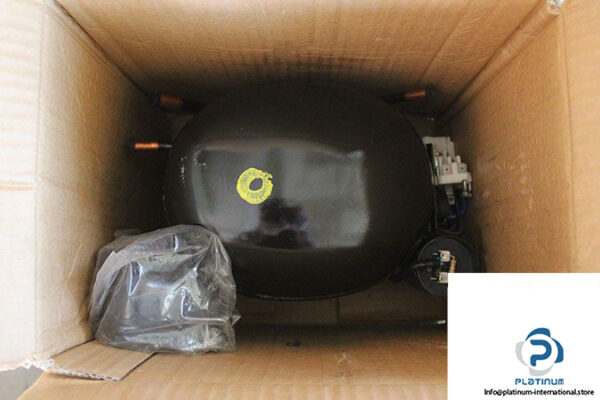

EMBRACO NEU6212GK COMPRESSOR
The Embraco NEU6212GK is a high-performance single-phase compressor engineered for refrigeration applications within a wide temperature range. Designed for reliability and energy efficiency, this model supports R-404A refrigerant and operates on a 220“240 V system, delivering powerful cooling with a compact footprint.

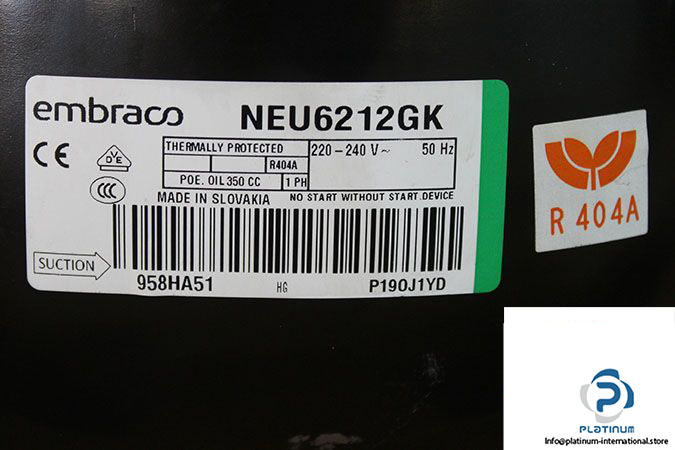

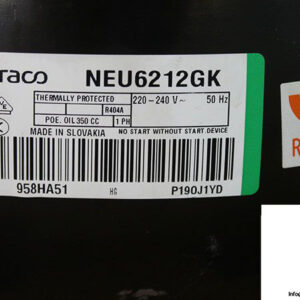

Manufacturer: Embraco
Type: Compressor
Model: NEU6212GK
Part No.: P190J1YD
Engineering Nr.: 958HA51
Phase: 1~ Single Phase
Technical Information
- Horsepower [Hp]: 1.2
- Rated Voltage [V]: 220 to 240
- Displacement [cm³]: 8.77
- Bore [mm]: 26.5
- Stroke [mm]: 15.92
- Fan Air Flow [m³/h]: 520
- Range Temperature [°C]: -20 to 10
- Frequency [Hz]: 50
- Refrigerant: R-404A
- Oil Charge [ml]: 350
- Oil Type Viscosity: ISO22
