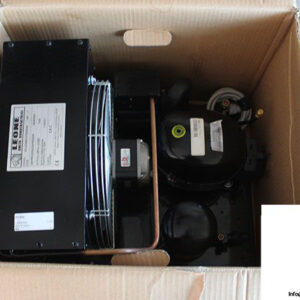

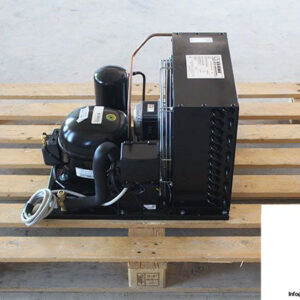

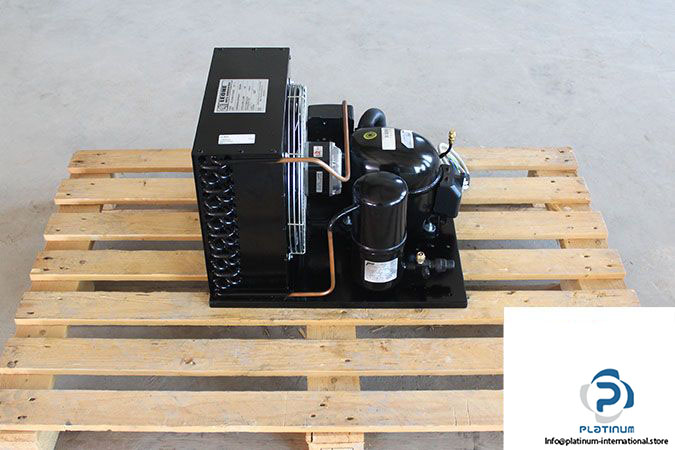

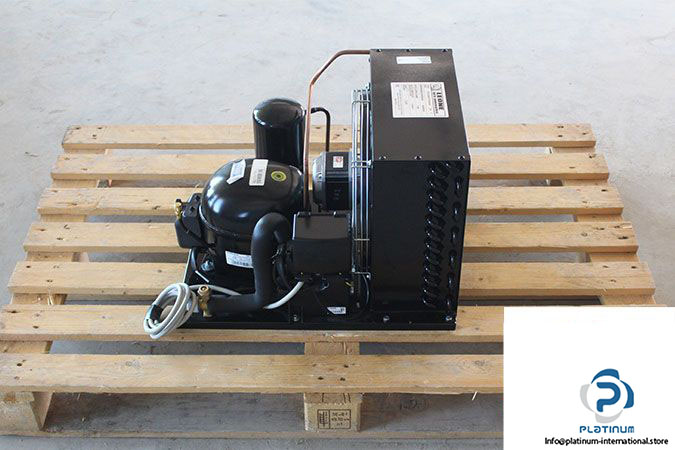

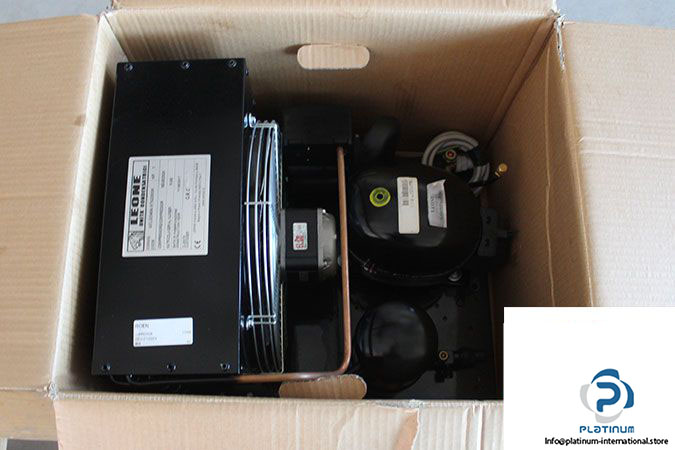

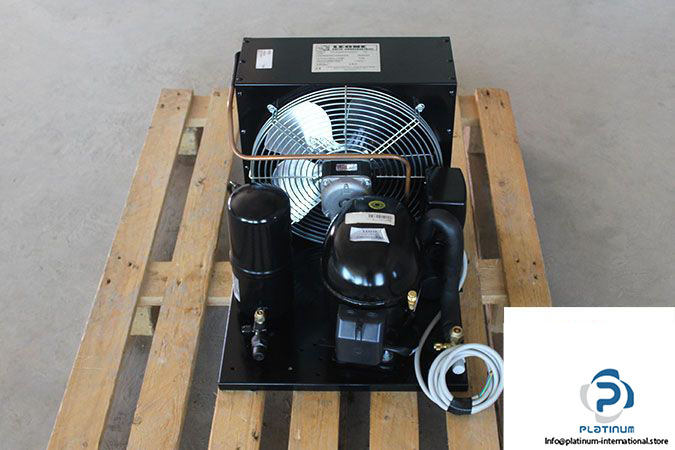

EMBRACO NEU6220GK COMPRESSOR SET

This high-performance single-phase compressor unit by Embraco is engineered for reliable refrigeration in demanding temperature ranges. Paired with an ELCO shaded pole motor and a Frigomec suction accumulator, this integrated set ensures optimized performance, energy efficiency, and system protection in commercial cooling systems.

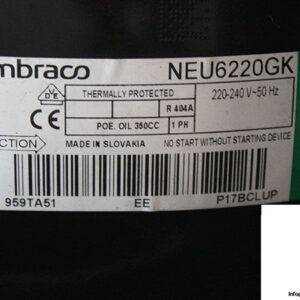

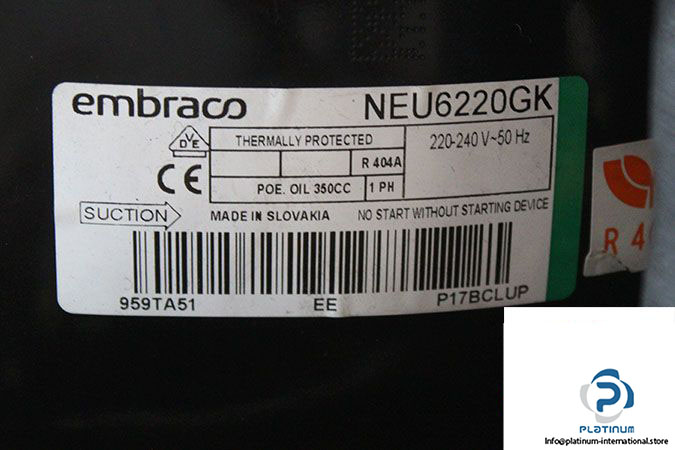

Manufacturer: Embraco
Type: Compressor
Model: NEU6220GK
Part No.: P17BCLUP

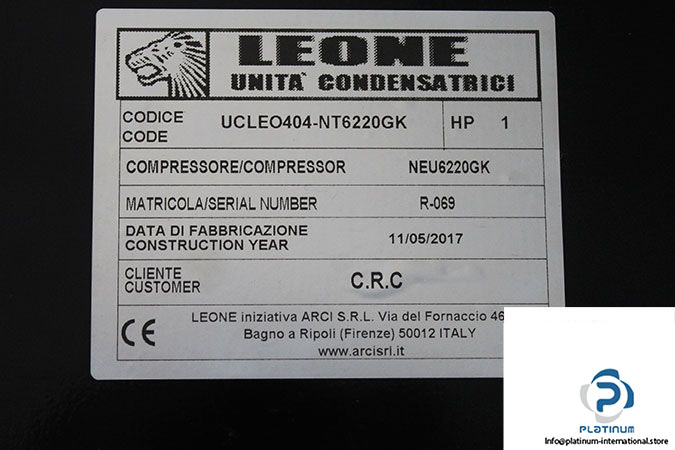

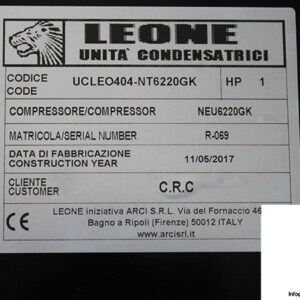

Code: UCLEO404- NT6220GK
Engineering Nr.: 959TA51
Phase: 1~ Single Phase

Technical Information

• Horsepower [Hp]: ¾
• Rated Voltage [V]: 220 to 240
• Displacement [cm³]: 14.28
• Bore [mm]: 30.157
• Stroke [mm]: 20.0
• Range Temperature [°C]: -20 to 10
• Lubricant Type/Viscosity: ESTER / ISO22
• Frequency [Hz]: 50
• Refrigerant: R-404A
• Lubricant Charge [ml]: 350

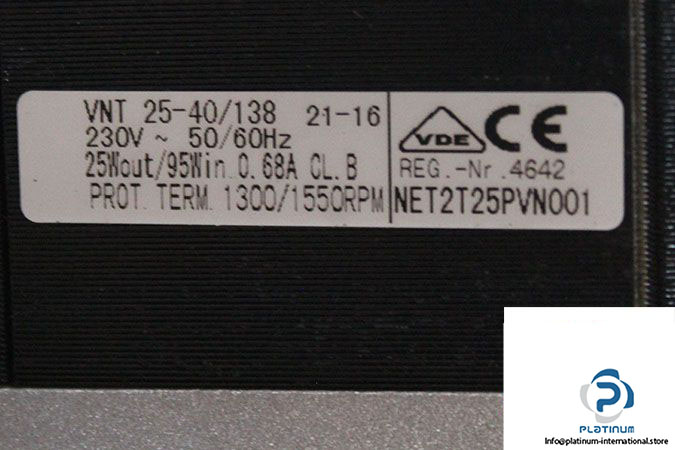

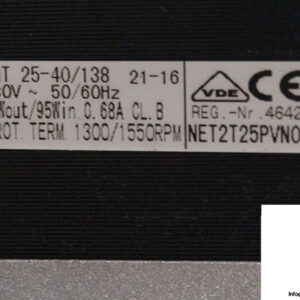

Included Attachment “ ELCO Shaded Pole Motor

Manufacturer: Elco
Model: NET2T25PVN001
Type Motor: VNT25-40/138

• Nominal Voltage [V]: 230
• Rated Current [A]: 0.68
• Power In [W]: 95
• Power Output [W]: 25
• Frequency [Hz]: 50/60
• Speed [rpm]: 1300/1550
• Degree of Protection [IP]: 44
• Insulation Class: B

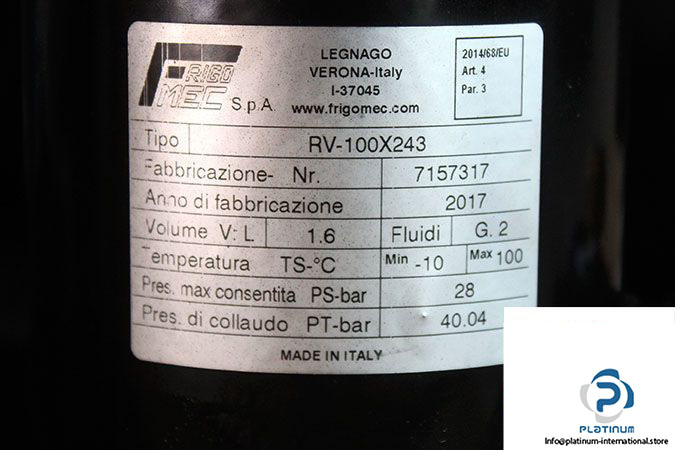

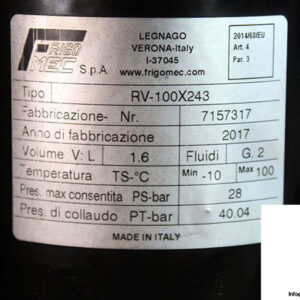

Included Attachment “ FRIGOMEC Suction Accumulator

Manufacturer: Frigomec
Model: RV-100X243
Type: Suction Accumulators

• Fluids Group: 2
• Volume [L]: 1.6
• Temperature [°C]: -10 to 100
• Max Pressure [bar]: 28
• Test Pressure [bar]: 40.04
