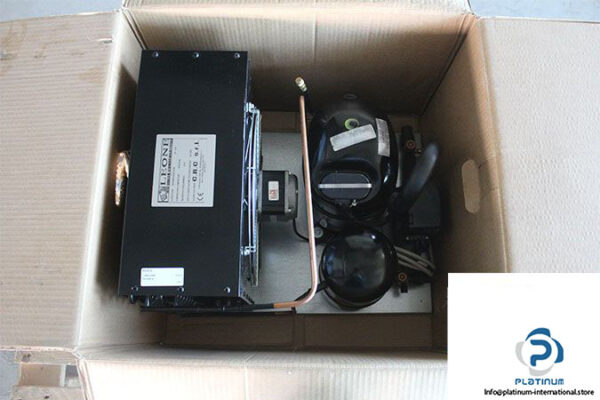

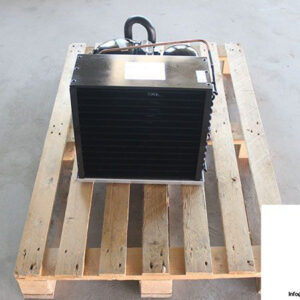

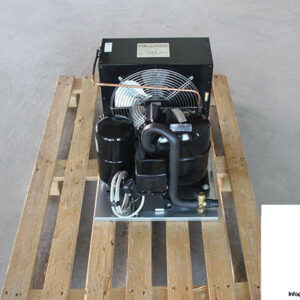

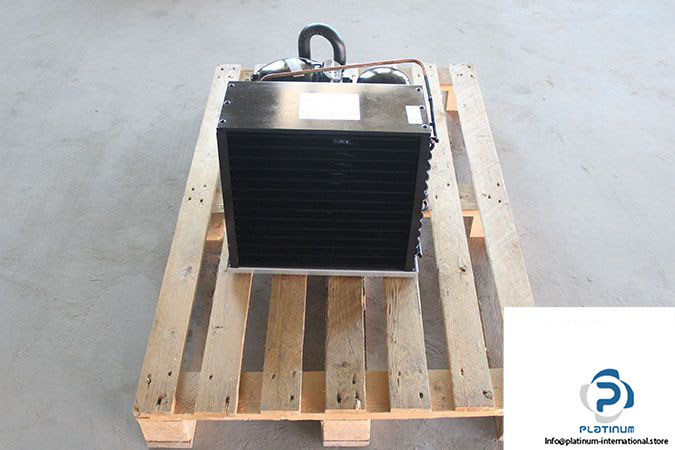

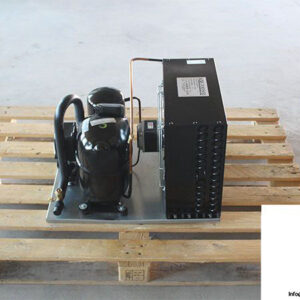

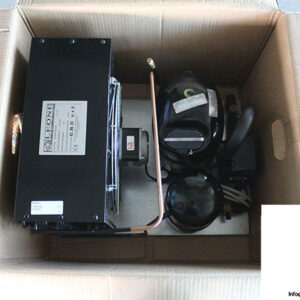

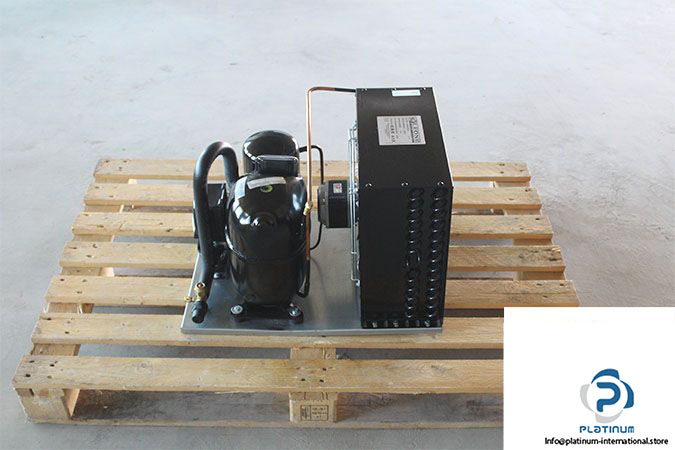

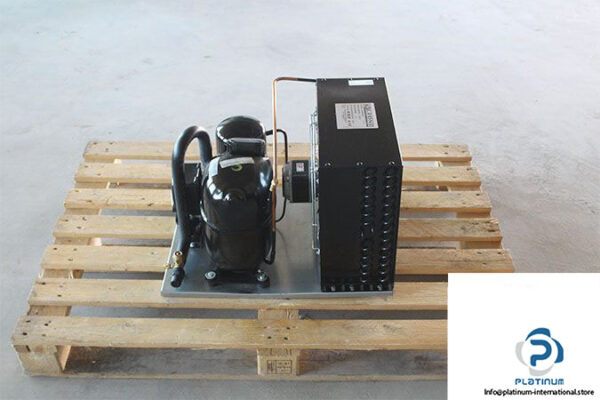

EMBRACO NJ9232GK COMPRESSOR SET

This high-efficiency single-phase compressor set by Embraco is engineered for refrigeration applications demanding precise cooling within the -20°C to 0°C range. It includes a powerful shaded pole motor by Elco and a robust suction accumulator by Frigomec for safe and stable operation in commercial systems.

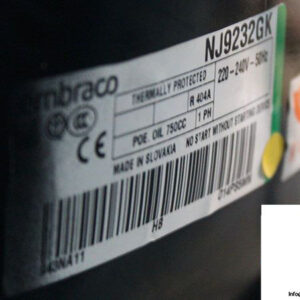

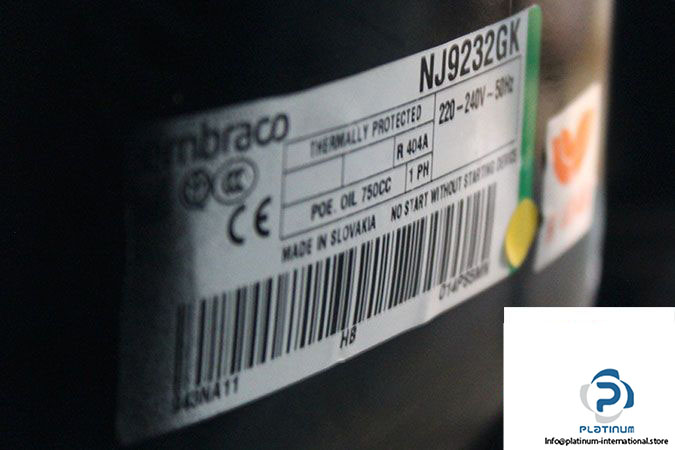

Manufacturer: Embraco
Type: Compressor
Model: NJ9232GK

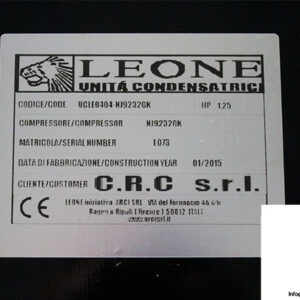

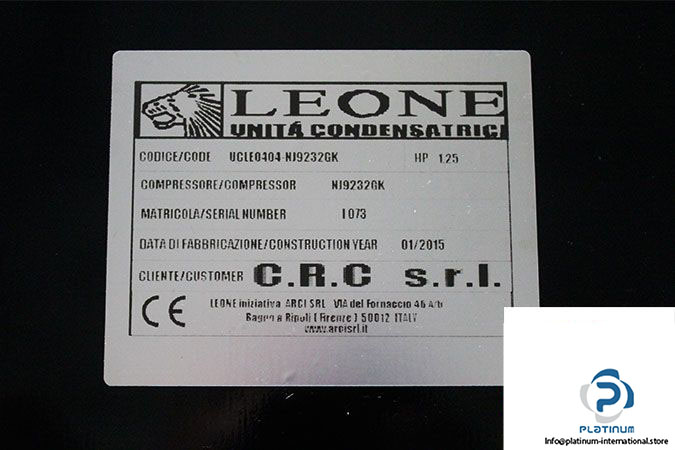

Code: UCLE0404- NJ9232GK
Engineering Nr.: 943NA01
Phase: 1~ Single Phase

Technical Information

• Horsepower [Hp]: 1 ¼
• Rated Voltage [V]: 200 to 240
• Displacement [cm³]: 26.11
• Bore [mm]: 41.77
• Stroke [mm]: 9.533
• Range Temperature [°C]: -20 to 0
• Lubricant Type/Viscosity: ESTER / ISO22
• Frequency [Hz]: 50
• Refrigerant: R-404a
• Lubricant Charge [ml]: 750

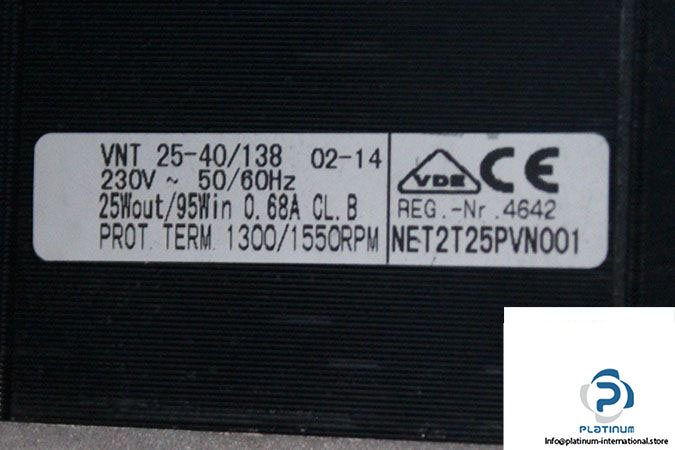

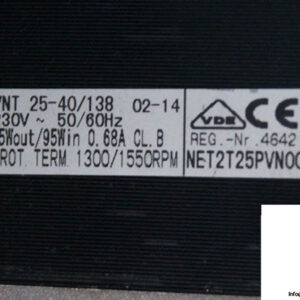

Attachment: ELCO NET2T25PVN001 SHADED POLE MOTOR

• Manufacturer: Elco
• Type: Shaded Pole Motor
• Model: NET2T25PVN001
• Motor Type: VNT25-40/138
• Nominal Voltage [V]: 230
• Rated Current [A]: 0.68
• Power In [W]: 95
• Power Output [W]: 25
• Frequency [Hz]: 50/60
• Speed [rpm]: 1300/1550
• Degree of Protection [IP]: 44
• Insulation Class: B

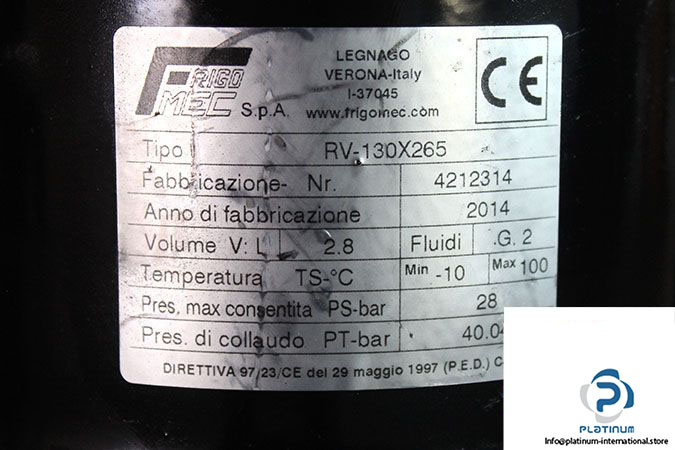

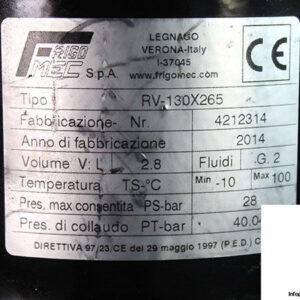

Attachment: FRIGOMEC RV-130X265 SUCTION ACCUMULATOR

• Manufacturer: Frigomec
• Type: Suction Accumulator
• Model: RV-130X265
• Part No.: 4212314
• Fluids Group: 2
• Volume [L]: 2.8
• Temperature Range [°C]: -10 to 100
• Max Pressure [bar]: 28
• Test Pressure [bar]: 40.04
