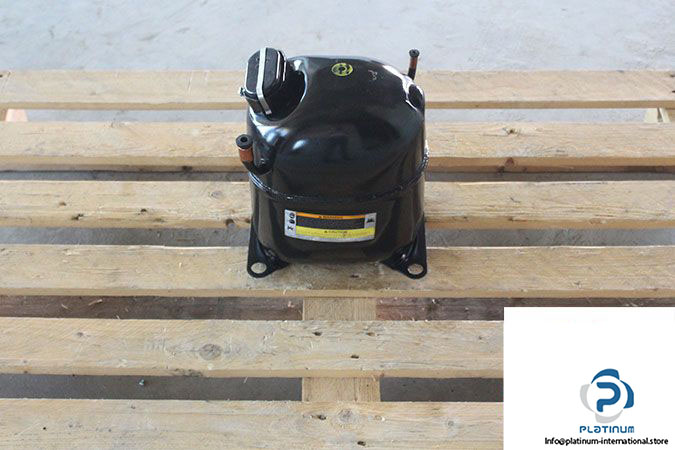

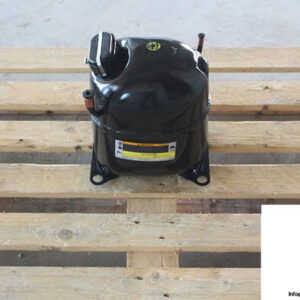

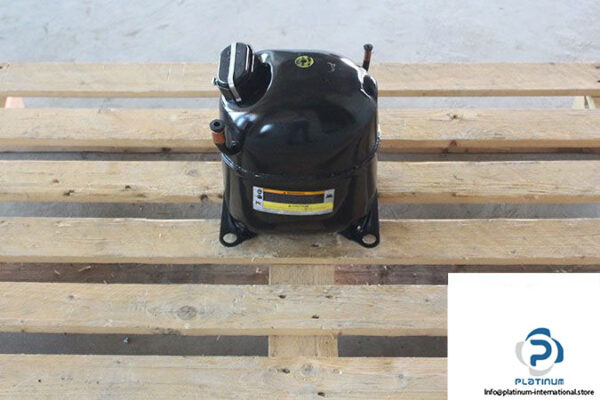

EMBRACO NJ 9238GK COMPRESSOR

The Embraco NJ 9238GK is a high-performance single-phase compressor designed for reliable and efficient refrigeration systems. With a 1.5 HP motor, advanced winding protection, and R-134a refrigerant compatibility, it delivers robust performance for medium-temperature applications.

Manufacturer: Embraco
Type: Compressor
Model: NJ 9238GK
Part No.: OB5UD3H7
Engineering Nr.: 943RV11
Phase: 1~ Single Phase

Technical Information

• Horsepower: 1 1/2 HP
• Rated Voltage: 230 V
• Displacement: 32.67 cm³
• Bore: 41.77 mm
• Stroke: 23.85 mm
• Maximum Winding Temperature: 130°C
• Max Condensing Pressure (Operating): 25.7 kgf/cm²
• Max Condensing Pressure (Peak): 28.7 kgf/cm²
• Evaporating Temperature Range: -20 to 10°C
• Frequency: 50 Hz
• Refrigerant: R-134a
• Lubricant Charge: 750 ml
• Lubricant Type/Viscosity: ESTER / ISO22
