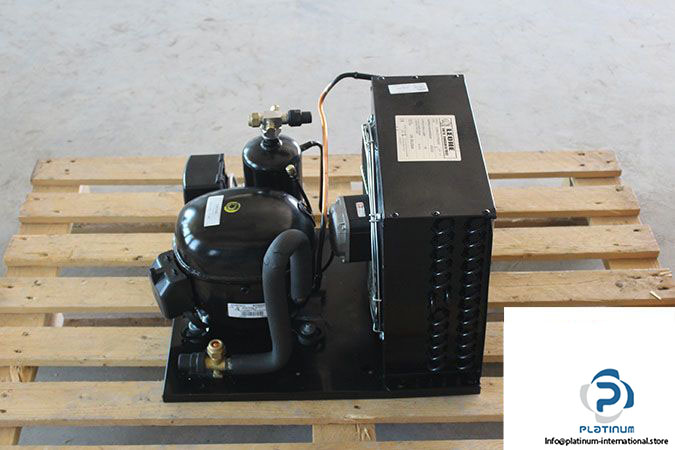

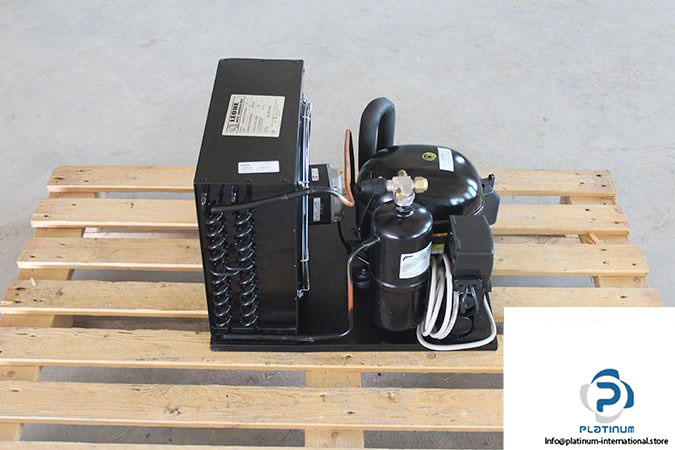

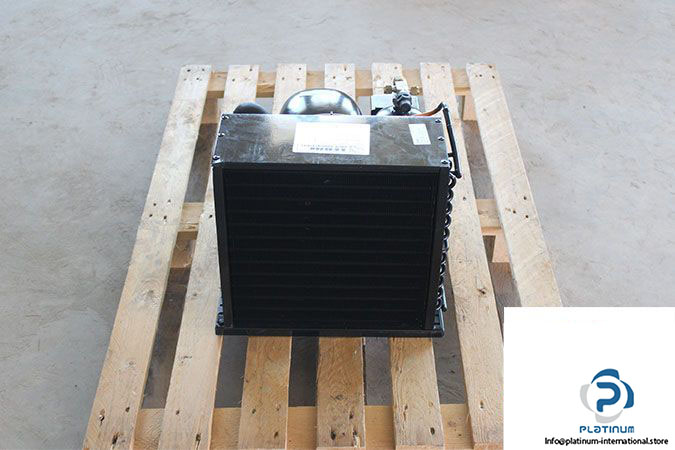

EMBRACO NT 6222GK COMPRESSOR ASSEMBLY

This high-performance Embraco compressor unit is engineered for refrigeration systems requiring robust, energy-efficient cooling under varying conditions. The assembly includes a shaded pole motor from Elco and a suction accumulator from Frigomec, offering a complete, integrated solution for commercial cooling applications.

Manufacturer: Embraco
Type: Compressor
Model: NT 6222GK
Part No.: MB8AD1GX
Code: UC404LEO- NT 6222GK
Engineering Nr.: 922CA04
Phase: 1~ Single Phase

Technical Information

• Horsepower: 1 Hp
• Rated Voltage: 200 to 240/230 V
• Displacement: 17.39 cm³
• Bore: 34.12 mm
• Stroke: 19.03 mm
• Range Temperature: -20°C to 10°C
• Lubricants Type/Viscosity: ESTER / ISO22
• Frequency: 50/60 Hz
• Refrigerant: R-404A
• Lubricant Charge: 450 ml

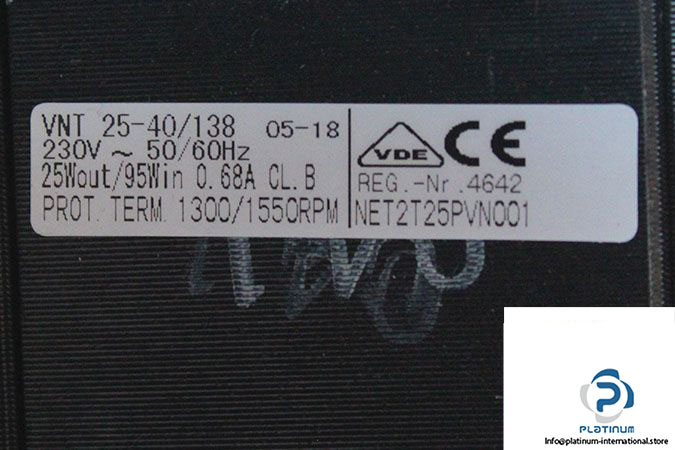

Attached Component: ELCO SHADED POLE MOTOR

• Manufacturer: Elco
• Model: NET2T25PVN001
• Type Motor: VNT25-40/138
• Nominal Voltage: 230 V
• Rated Current: 0.68 A
• Power Input: 95 W
• Power Output: 25 W
• Frequency: 50/60 Hz
• Speed: 1300/1550 rpm
• Protection Degree: IP44
• Insulation Class: B

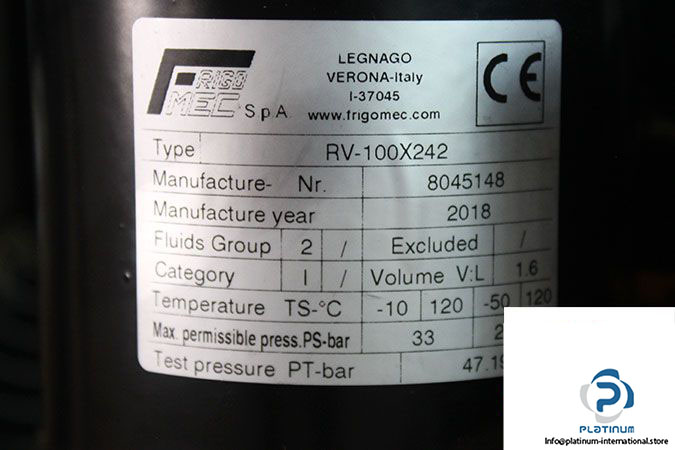

Attached Component: FRIGOMEC SUCTION ACCUMULATOR

• Manufacturer: Frigomec
• Type: Suction Accumulator
• Model: RV-100X242
• Part No.: 8045148
• Fluids Group: 2
• Volume: 1.6 L
• Temperature Range: -10 to 120°C / -50 to 120°C
• Max Pressure: 33/24 bar
• Test Pressure: 47.19 bar
