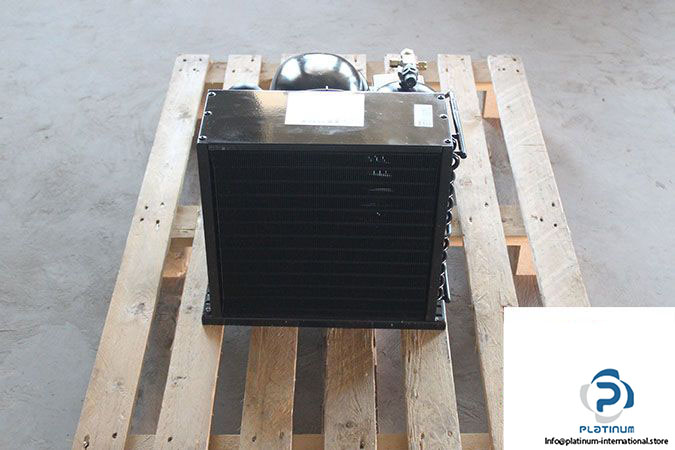

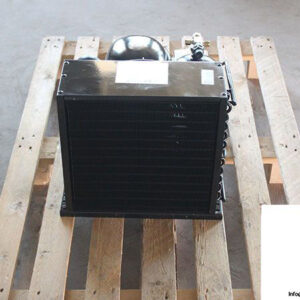

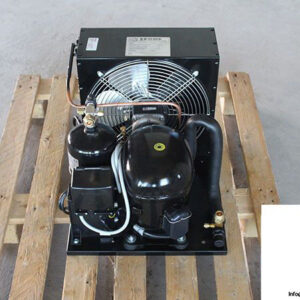

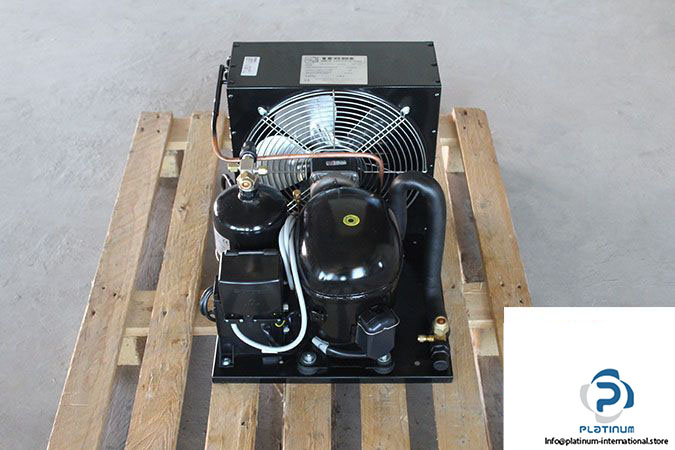

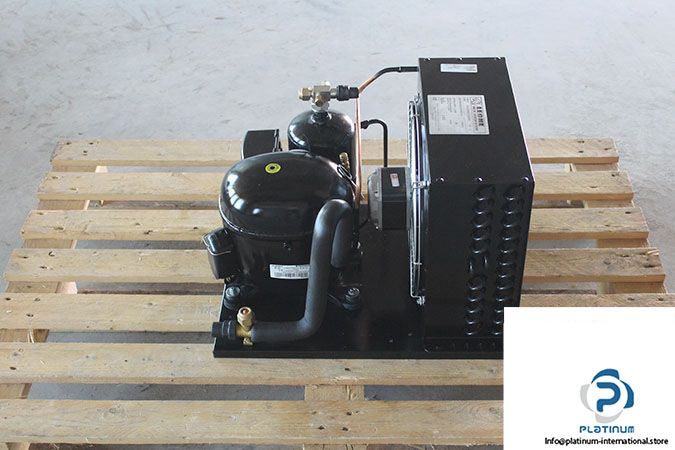

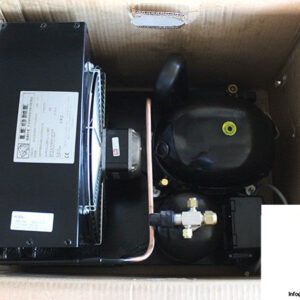

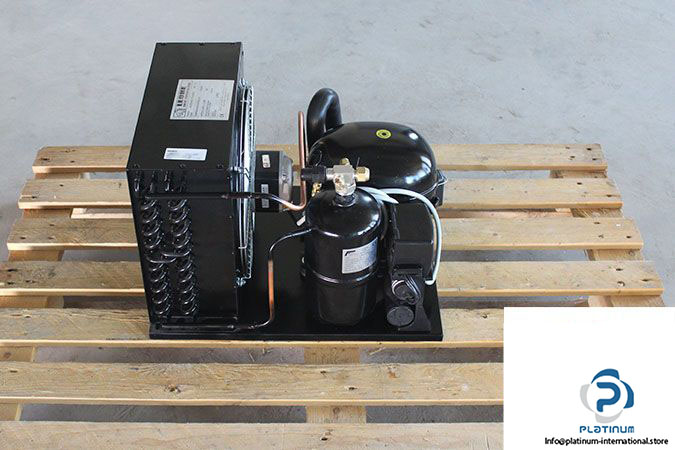

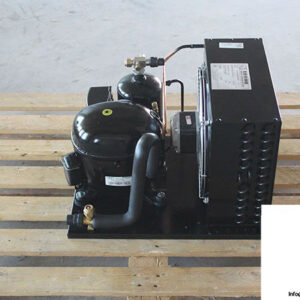

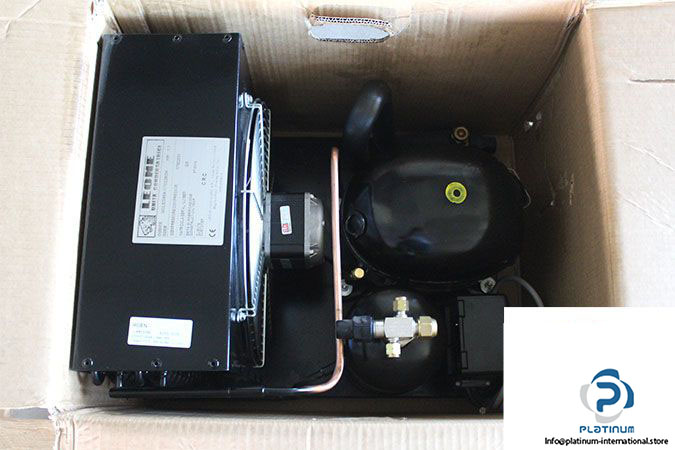

EMBRACO NT6226GK COMPRESSOR SET

This comprehensive compressor solution includes the Embraco NT6226GK single-phase compressor, paired with a high-efficiency Elco shaded pole motor and a Frigomec suction accumulator. Engineered for low to medium temperature refrigeration systems, it delivers reliable performance with R-404a refrigerant, ester-based lubrication, and durable components built to industrial standards.

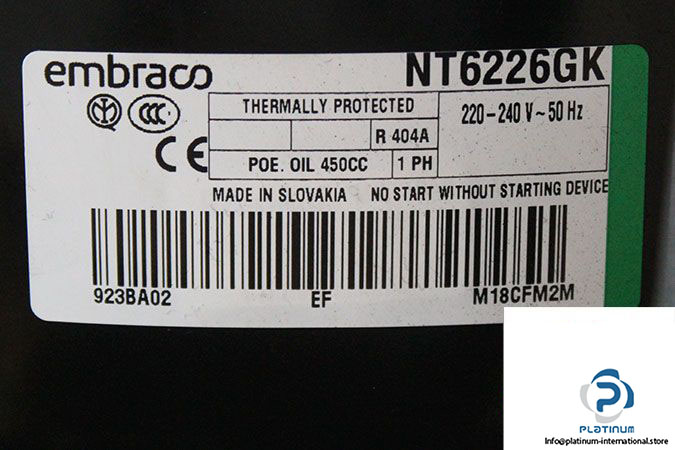

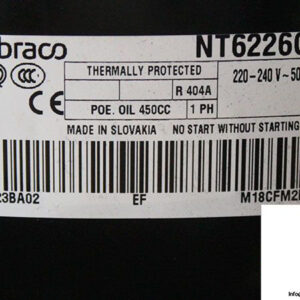

Manufacturer: Embraco
Type: Compressors
Model: NT6226GK
Part No.: M18CFM2M

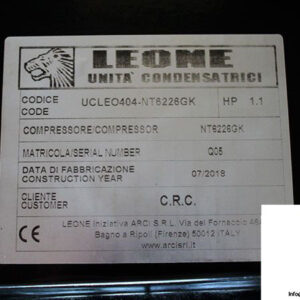

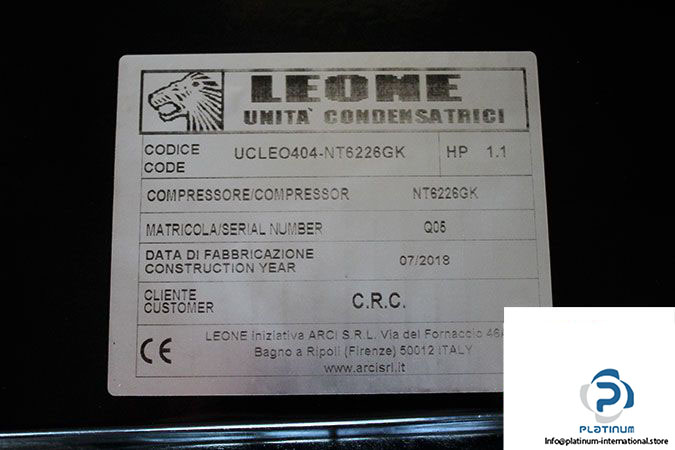

Code: UCLEO404-NT6226GK
Engineering Nr.: 923BA02
Phase: 1~ Single Phase

Technical Information

• Horsepower [Hp]: 1+
• Rated Voltage [V]: 200 to 240
• Displacement [cm³]: 22.4
• Bore [mm]: 37.0
• Stroke [mm]: 20.83
• Range Temperature [°C]: -25 to 10
• Lubricants Type/Viscosity: ESTER / ISO22
• Frequency [Hz]: 50
• Refrigerant: R-404a
• Lubricant Charge [ml]: 450

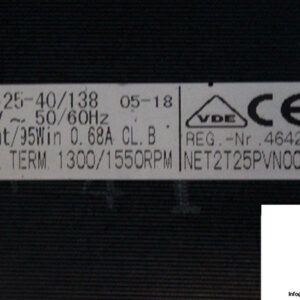

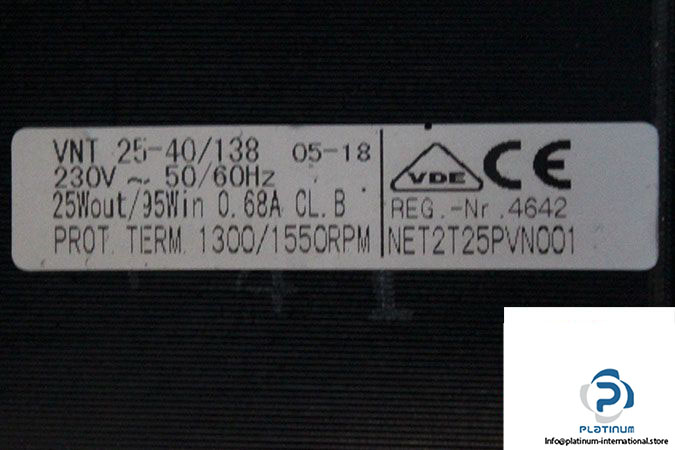

Attached Motor – Elco NET2T25PVN001

• Manufacturer: Elco
• Type: Shaded Pole Motor
• Model: NET2T25PVN001
• Type Motor: VNT25-40/138
• Nominal Voltage [V]: 230
• Rated Current [A]: 0.68
• Power In [W]: 95
• Power Output [W]: 25
• Frequency [Hz]: 50/60
• Speed [rpm]: 1300/1550
• Degree of Protection [IP]: 44
• Insulation Class: B

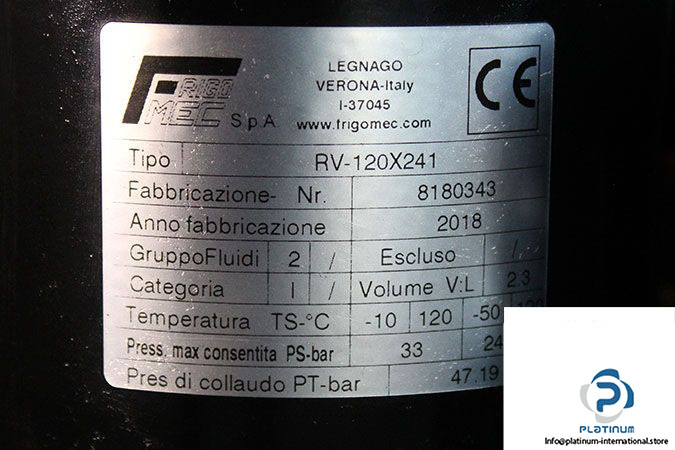

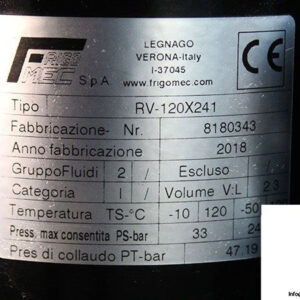

Suction Accumulator – Frigomec RV-120X241

• Manufacturer: Frigomec
• Type: Suction Accumulators
• Model: RV-120X241
• Part No.: 8180343
• Fluids Group: 2
• Volume [L]: 2.3
• Temperature [°C]: -10 to 120 / -50 to 100
• Max Pressure [bar]: 33 / 24
• Test Pressure [bar]: 47.19
