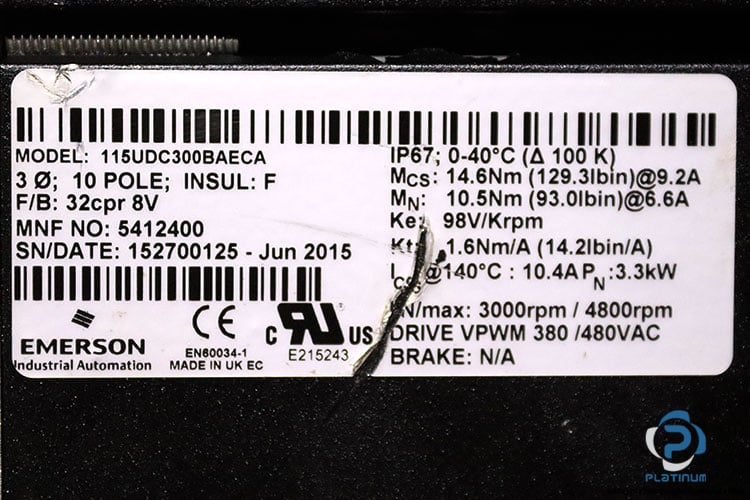

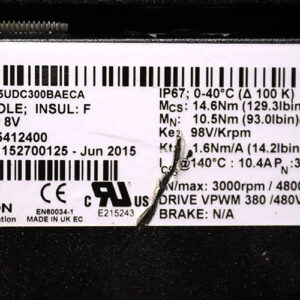

Manufacturer: EMERSON

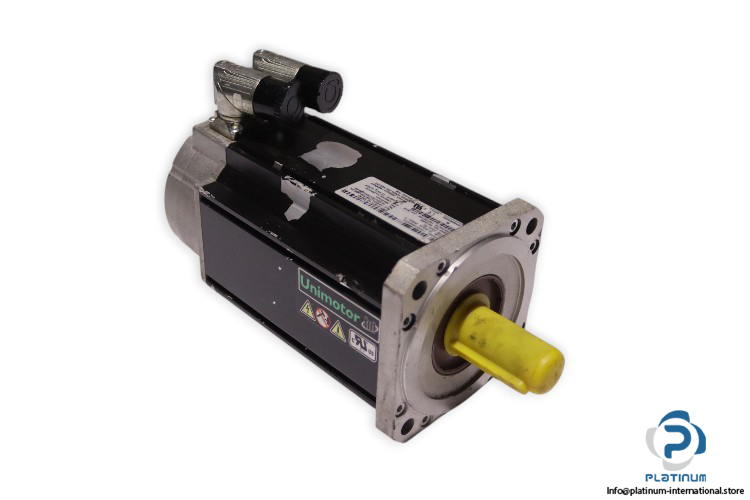

Type: Servo Motor
Model: 115UDC300BAECA
MNF No.: 5412400

Rated Voltage: 380/480 V
Rated Power: 3.3 kW
Rated Torque: 10.5 Nm
Stall Torque: 14.6 Nm
Rated Current: 6.6 A
Stall Current: 9.2 A
Rated Speed: 3000 rpm
Max. Speed: 4800 rpm
Ke: 98 V/Krpm
Kt: 1.6 Nm/A
Protection Class [IP]: 67
Temperature: 0 … 40 °C
Poles: 10
Insulation Class: F
