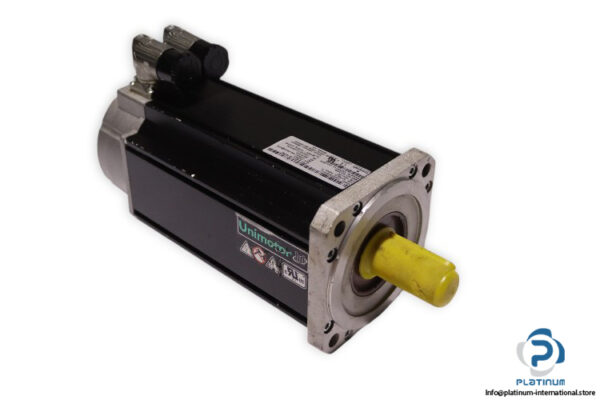

Manufacturer: EMERSON
Type: Servo Motor

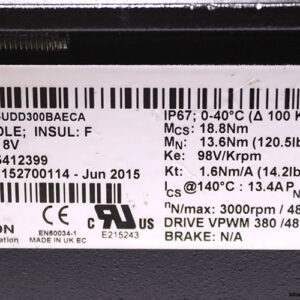

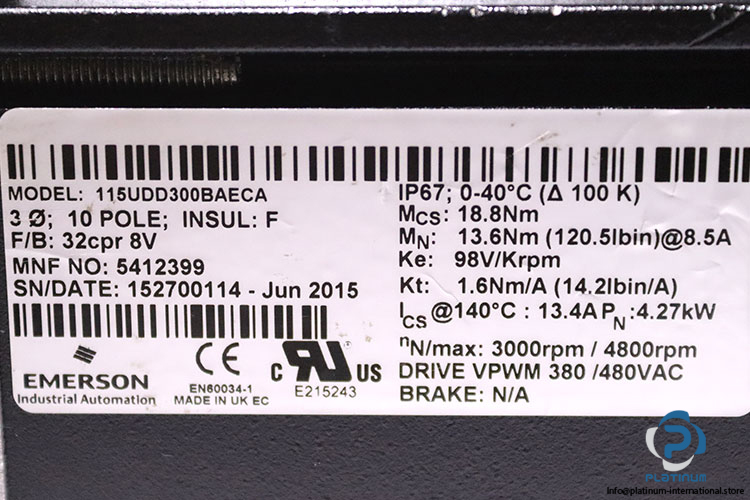

Model: 115UDD300BAECA
MNF No.: 5412399

Rated Voltage: 380/480 V
Rated Power: 4.27 kW
Rated Torque: 13.6 Nm
Stall Torque: 18.8 Nm
Rated Current: 8.5 A
Stall Current [A]:
Rated Speed: 3000 rpm
Max. Speed: 4800 rpm
Ke: 98 V/Krpm
Kt: 1.6 Nm/A
Protection Class [IP]: 65
Temperature: 0 … 40 ° C
Poles: 10
Insulation Class: F
