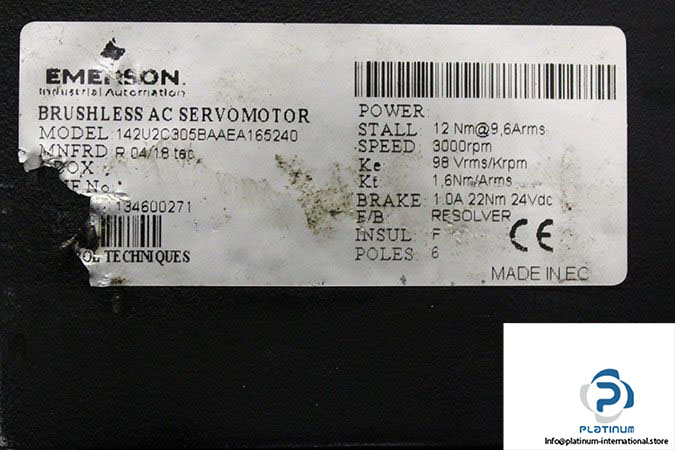

Manufacturer: Emerson

Type: Brushless AC Servo Motors

Model: 142 U2C305BAAEA165240

Frame Size: 142

Stall Current [A]: 9.6

Still Torque [Nm]: 12

Rated Speed [rpm]: 3000

Constant Voltage [Vrms/krpm]: 98

Constant Torque [Nm/Arms]: 1.6

Number of Poles: 6

Brake Voltage [VDC]: 24

Brake Current [A]: 1.0

Brake Torque [Nm]: 22

Insulation Class: F

Weight [kg]: 16.6
