ENCODER PRODUCTS 716*0200-O-S-4-S-S-N INCREMENTAL ‎SHAFT ENCODER

INDUSTRIAL ENCODER

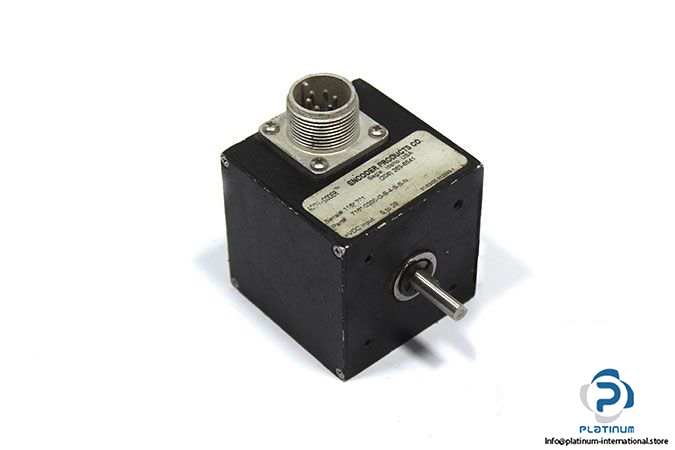

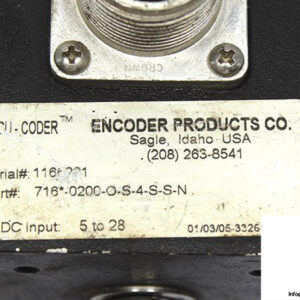

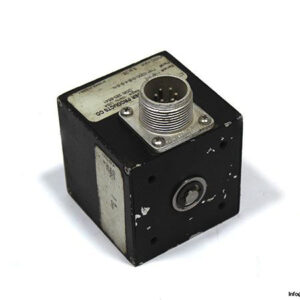

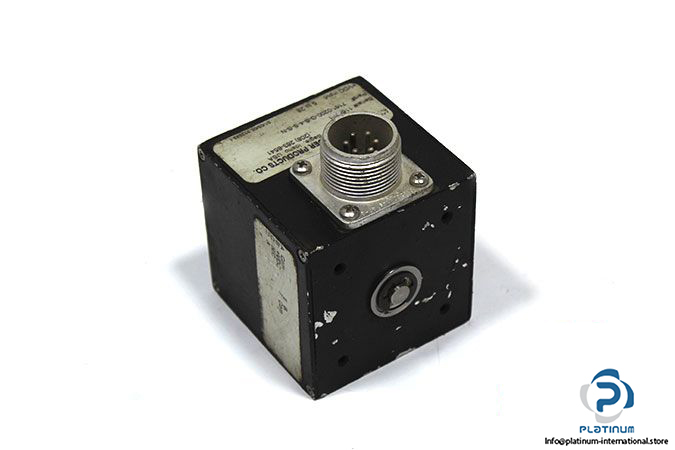

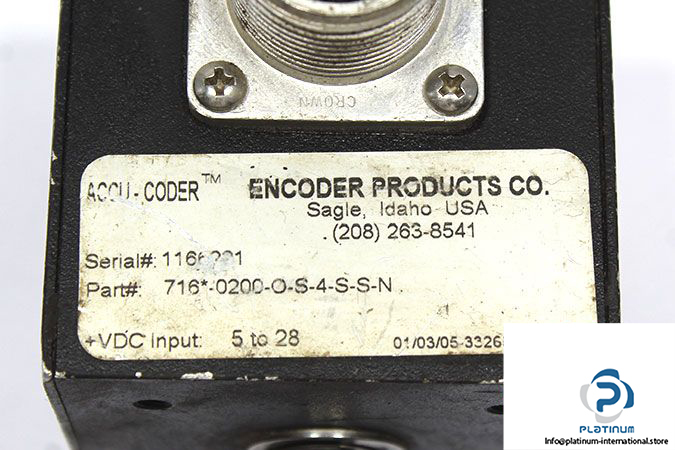

Precision 716 series encoder by Encoder Products Co with 200 CPR, single 1/4 in shaft, 6-pin MS connector, and pull-up resistor output. Handles up to 6000 RPM and 5“28 VDC input.

SKU: 979933 Category: Tags: , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

ENCODER PRODUCTS CO 716*0200-O-S-4-S-S-N ENCODER

Engineered for reliability and precision, the 716 series encoder from Encoder Products Co delivers dependable signal feedback for motion control applications. Designed to operate in demanding environments, it supports a wide input voltage range and high RPM, making it ideal for automated systems and industrial machinery.

Manufacturer: Encoder Products Co
Type: Encoder
Model: 716*0200-O-S-4-S-S-N
Ref No.: 01/03/05-3326

Technical Information

  • Cycles Per Revolution (CPR): 200
  • Output Type: Pull-Up Resistor
  • Shaft Diameter: 1/4 in
  • Shaft Type: Single

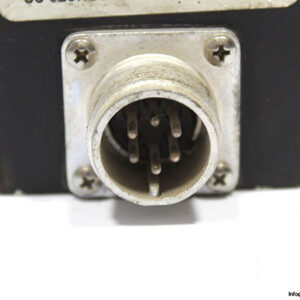

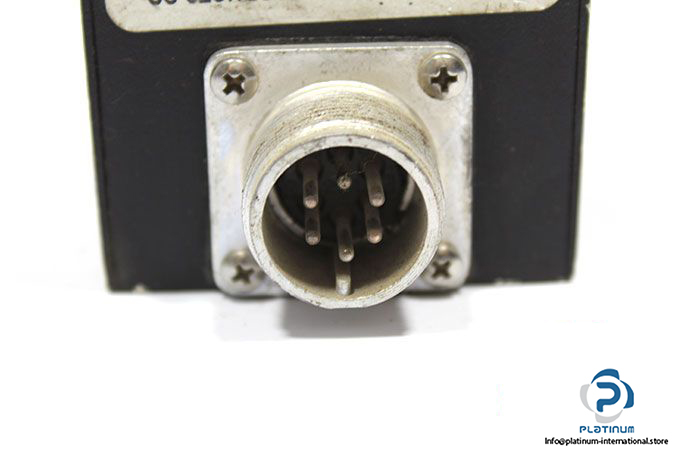

  • Connector Type: 6-pin MS
  • Input Voltage: 5 to 28 VDC
  • Input Current: Max. 80 mA
  • Rise Time: <1 µs
  • Speed: Max. 6000 RPM
  • Shaft Material: 303 Stainless Steel
Weight0,2 kg
