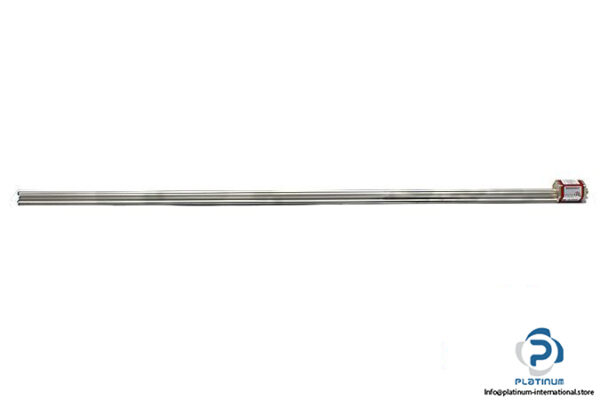

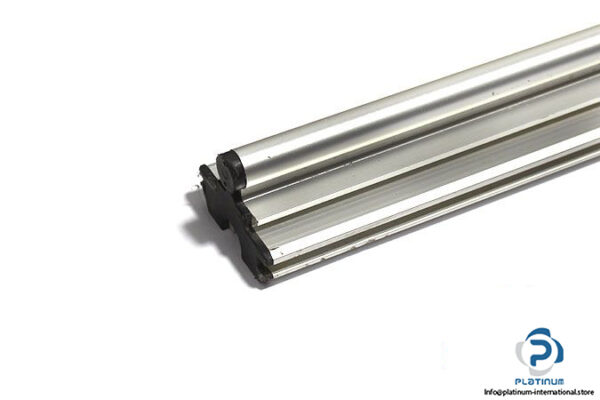

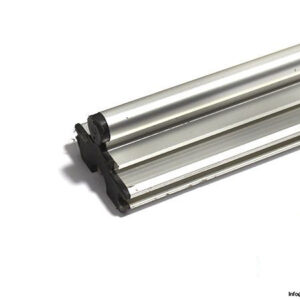

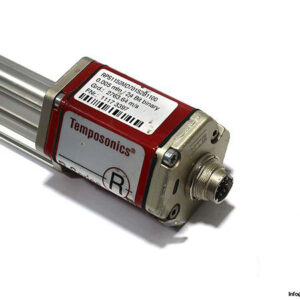

MTS SENSOR / TEMPOSONICS RPS1150MD701S2B1100 LINEAR-POSITION SENSOR
Engineered for precise motion control in the most demanding industrial environments, the RPS1150MD701S2B1100 sensor by MTS Sensor / Temposonics offers high accuracy, repeatability, and robust performance. Ideal for continuous operation under high-pressure and harsh conditions, this linear-position sensor supports reliable measurements over a long electrical stroke.

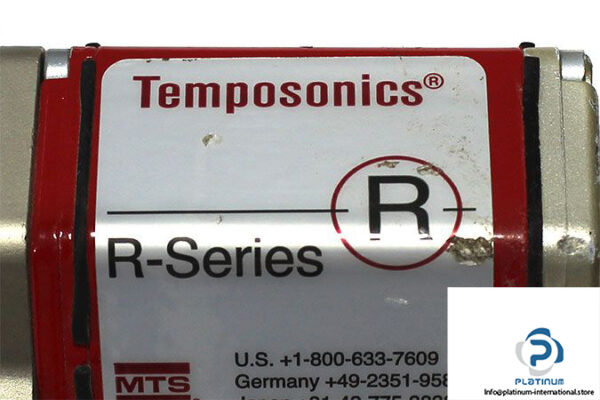

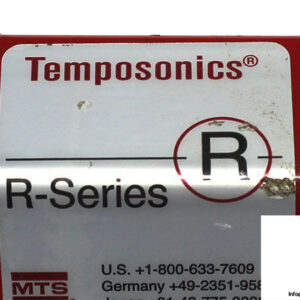

Manufacturer: MTS Sensor / Temposonics
Type: Linear-Position Sensor

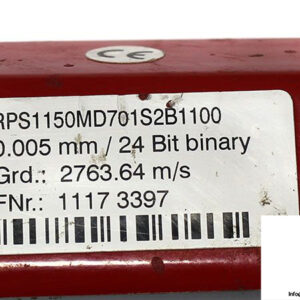

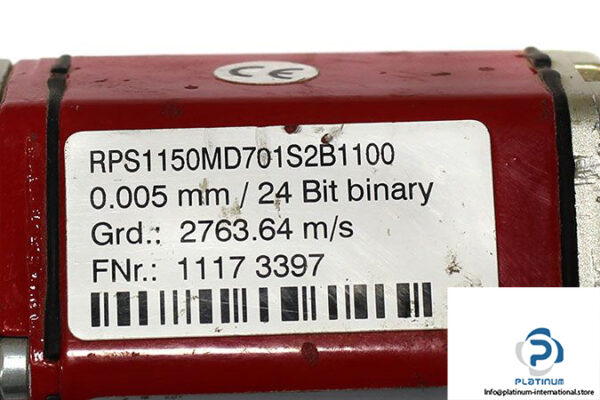

Model: RPS1150MD701S2B1100
Grade: 2763.64 m/s
Factory Number: 11173397
Technical Specifications
- Repeatability: Within 0.001%
- Electrical Stroke: 1150 mm
- Input Voltage: +24 Vdc (+20% “ 15%)
- Resolution: 0.005 mm
- Filtering Performance: Standard, no filter
- Signal Options: Measuring direction forward, async
- Data Length: 24 bits
- Output Format: Binary

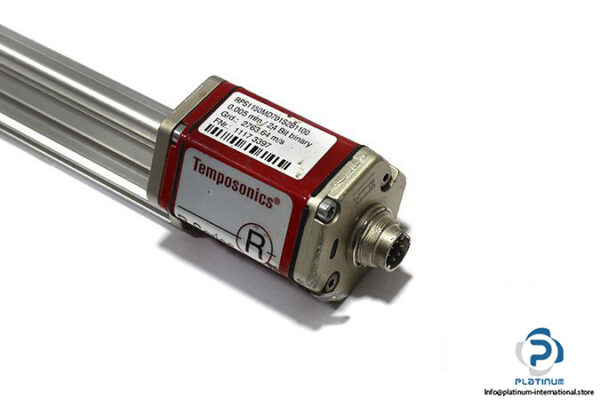

- Integral Connector: 7-pin DIN (M16), male, standard
- Protection Class: IP65
Key Features
- Continuous Operation in Harsh Industrial Conditions
- Withstands High-Pressure Environments
- Designed for Fast, Precision Motion Control
