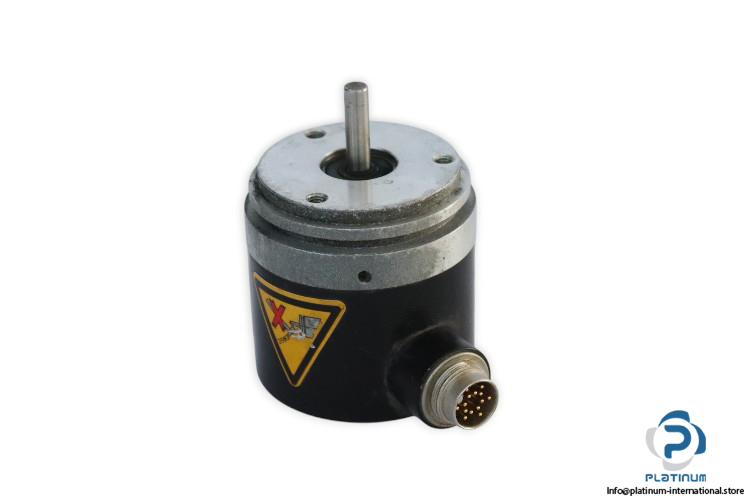

BALLUFF BDG6360305Z065200065 INCREMENTAL ENCODER

The Balluff BDG6360305Z065200065 is a high-precision incremental encoder engineered for industrial automation tasks requiring exact pulse feedback and robust durability. With a stainless-steel body, IP64 protection, and compact form, it ensures long-lasting performance in demanding environments.

Manufacturer: BALLUFF
Type: Incremental Encoder

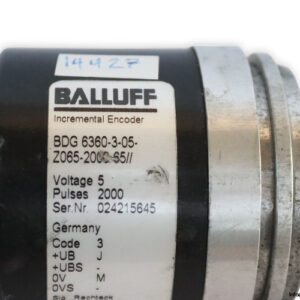

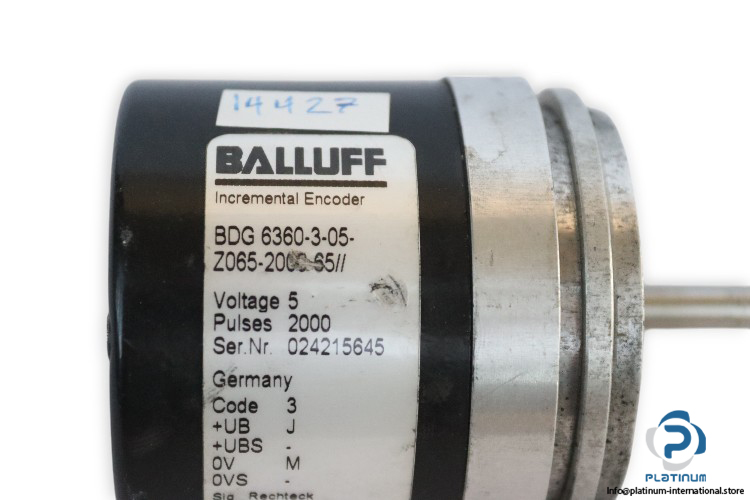

Model: BDG6360305Z065200065

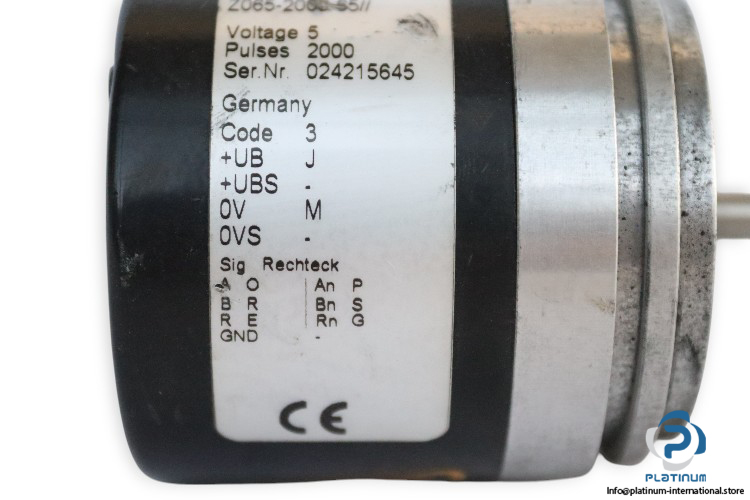

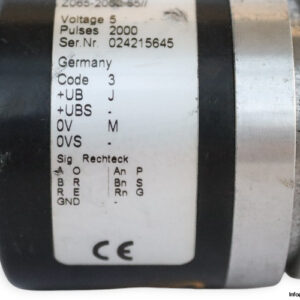

Serial No.: 024215645

Technical Information

• Series: BDG 6360
• Shaft Diameter: 6 mm
• Pulse Rate: 2000 PPR
• Rotating Speed Max.: 10,000 rpm
• Operating Voltage: 5 V DC
• Current Consumption Max.: 100 mA
• Shaft Load Rating: 10 N Axial / 20 N Radial
• Output Function: Push-Pull
• Output Ratings: 10 / 30 V, 20 mA
• Signal: Square Wave / Sinusoidal
• Electrical Connection: Male Connector, 14-Pin
• Flange Diameter: 50 mm
• Total Diameter: 58 mm
• Material: Stainless Steel
• Protection Class: IP64
• Temperature Range: 0 / 80 °C
• Dimensions: 55 x 58 mm
