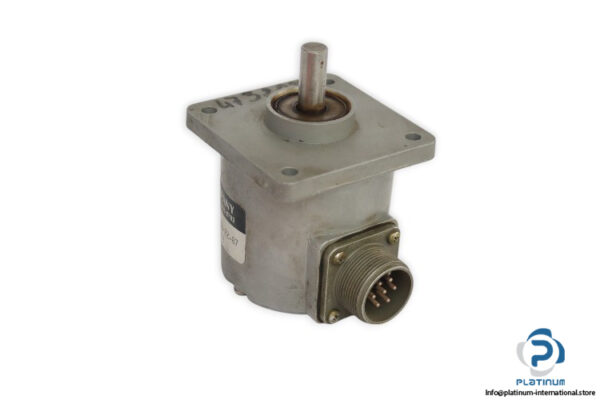

BEI H25D-SS-720-ABZ Incremental Encoder
The BEI H25D-SS-720-ABZ is a rugged and precise incremental encoder designed for industrial automation and motion control applications. Engineered with a stainless steel shaft and a durable die-cast aluminum housing, it delivers accurate feedback with 720 pulses per revolution (PPR) and high resistance to environmental conditions.
Manufacturer: BEI
Type: Incremental Encoder

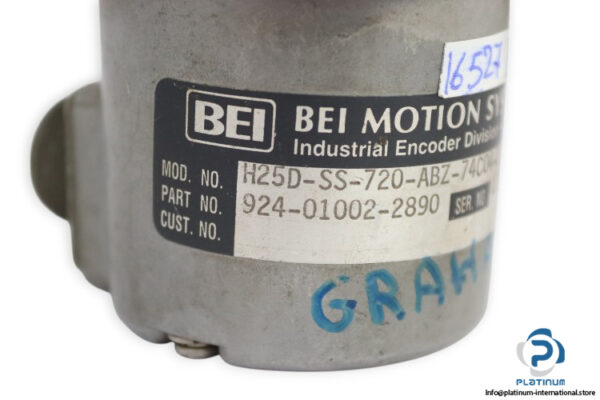

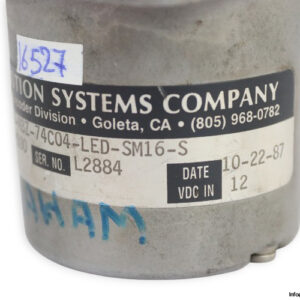

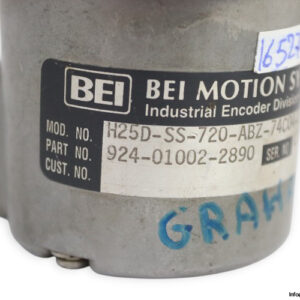

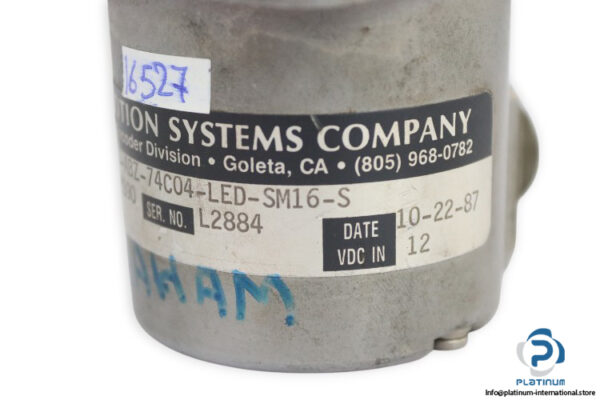

Model: H25D-SS-720-ABZ-74C04-LED-SM16-S
Part No.: 924-01002-2890
Technical Data:
- Diameter: 2.5 inch
- Supply Voltage: 5 to 28 VDC
- Flange Type: Square Flange
- Shaft Seal Configuration: Shaft Seal
- Number of Channels: Dual with Index
- Shaft Material: Stainless Steel
- Bearing Housing: Die-cast aluminum with protective finish

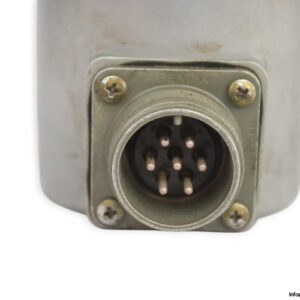

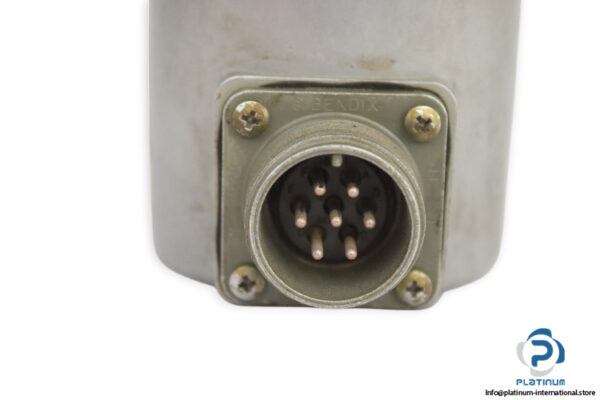

- Connection Type: Radial military connector (7 pins)
- Resolution: 720 pulses per revolution (PPR)
