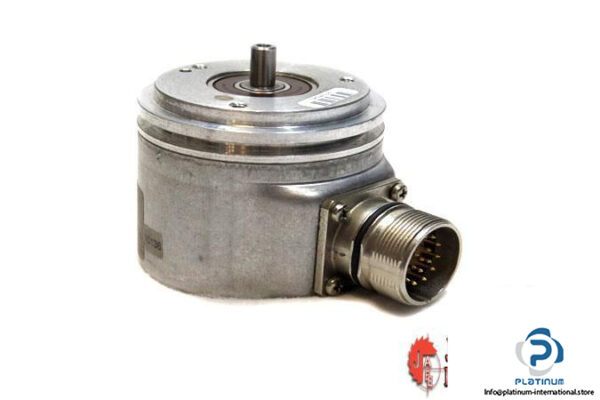

HENGSTLER AC58/0360ES.41PGV ABSOLUTE ENCODER
The HENGSTLER AC58/0360ES.41PGV is a high-precision absolute encoder engineered for reliable performance in industrial automation and motion control systems. Built with robust materials and designed for durability, this encoder ensures accurate position feedback under demanding environmental conditions.
Manufacturer: HENGSTLER
Type: Absolute Encoder
Model: AC58/0360ES.41PGV

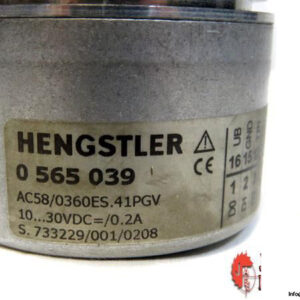

Part No: 0565039
Serial No.: 733229/001/0208
Technical Information

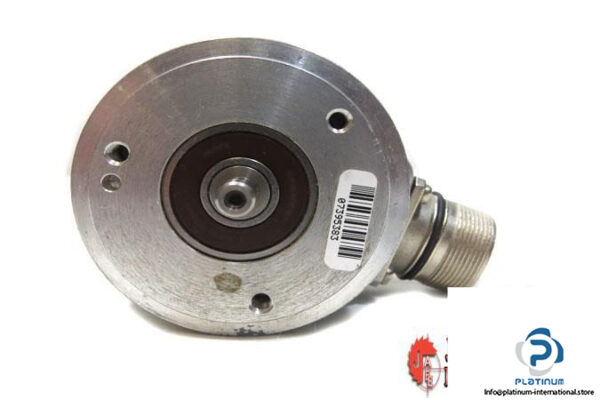

- Flange Type: Synchro Flange
- Shaft Type: Solid Shaft
- Shaft Diameter: 6 mm
- Material (Shaft): Stainless Steel
- Material (Housing): Aluminum
- Voltage Supply: 10 / 30 VDC
- Output Code: Parallel Gray
- Output Current: 30 mA per Bit
- Housing Diameter: 58 mm

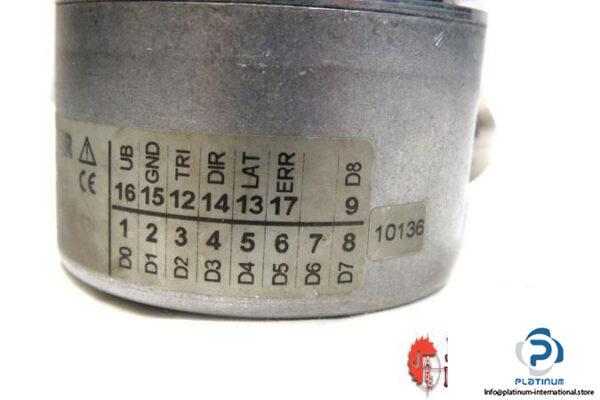

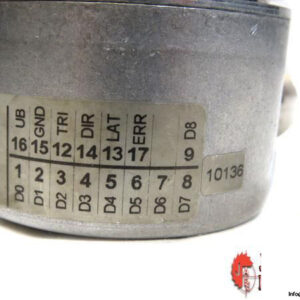

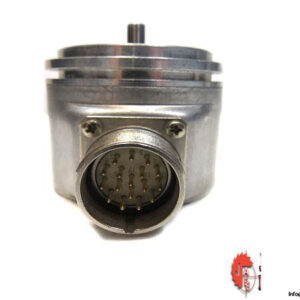

- Connection Type: M23 Connector (Conin), Axial
- Protection Class: IP64
- Operating Temperature: -40 / 85 °C
