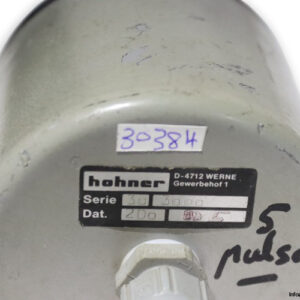

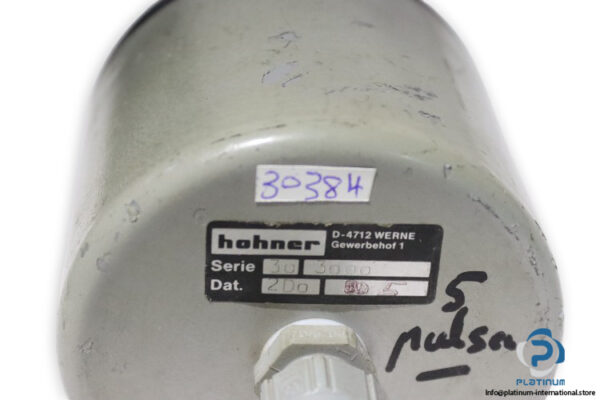

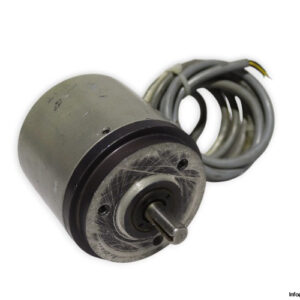

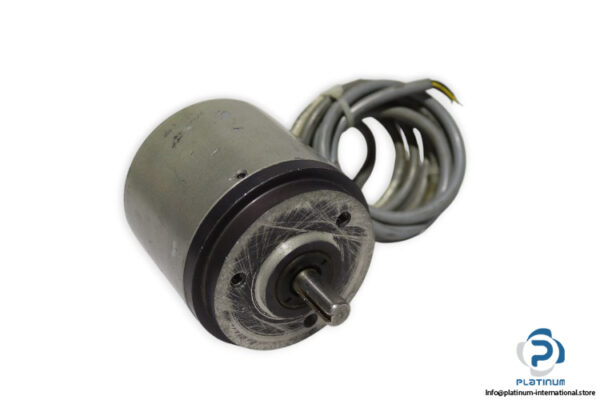

Hohner 303000 Incremental Encoder
The Hohner 303000 is a precision incremental encoder from the 30 series, designed for reliable performance in motion control and industrial automation. Built with durable materials, IP65 protection, and long bearing life, it ensures accurate signal output and extended service life.
Manufacturer: Hohner
Type: Incremental Encoder
Model: 303000
Series: 30
Code: 2 Do
Technical information
- Shaft: 12 mm
- External Diameter: 90 mm
- Protection: IP65
- Output Signal: A
- Pulses: 5 PPR
- Temperature Range: -20 to 80 °C

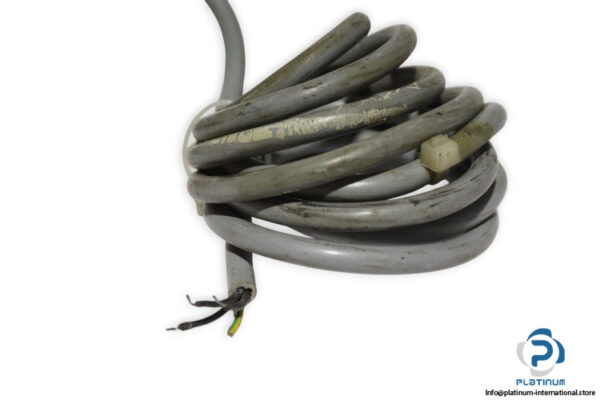

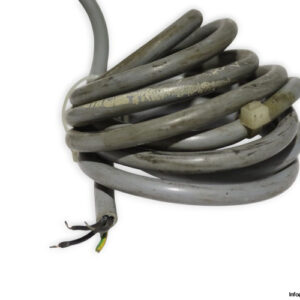

- Connection: Axial cable
- Output Circuits: NPN 5/24 V (11 to 30 V DC)
- Current: 40 mA
- Length of Cable: Up to 50 m
- No. of Revolutions Permitted: 6000 rpm
- Materials: Cover: Aluminium, Housing: Aluminium, Shaft: Stainless Steel
- Bearings Lifetime: 1 × 10^10 revolutions
