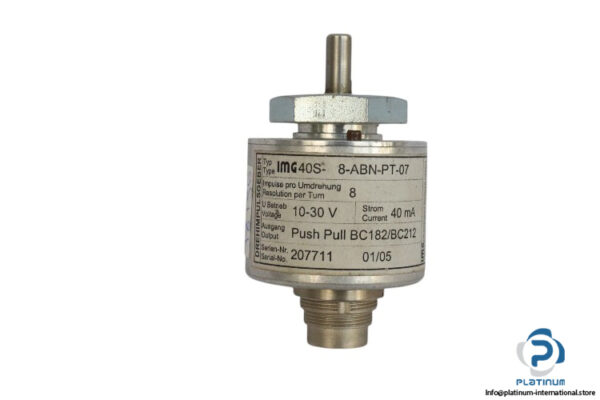

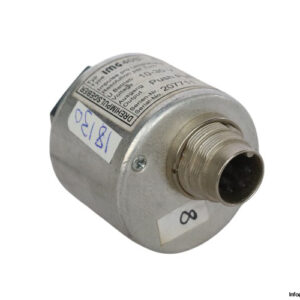

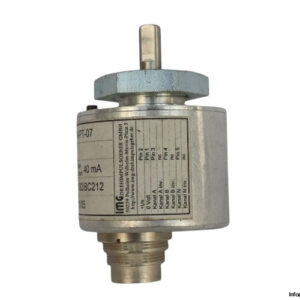

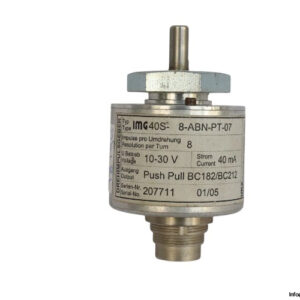

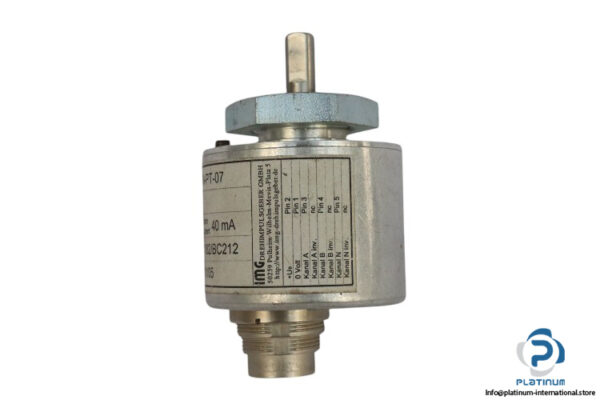

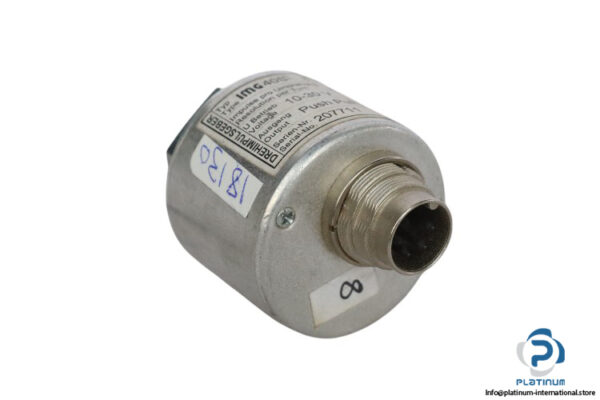

IMG IMG40S8ABNPT07 Incremental Encoder
The IMG40S8ABNPT07 is a high-precision incremental encoder designed for industrial applications requiring reliable motion control feedback. With its robust solid shaft and high-quality materials, it ensures durability and performance in demanding environments.
Key Details:
- Manufacturer: IMG
- Type: Incremental Encoder
- Model: IMG40S8ABNPT07
Technical Information:
- Shaft Type: Solid Shaft
- Operating Voltage: 10 to 30 V DC
- Input Current: 40 mA
- Output Load: 80 mA
- Shaft Diameter: 6 mm
- Resolution: 8 Resolution/turn
- Protection Degree: IP64
- Output Circuit: Push Pull
- Output Signals: A, B, N
- Connection: Connector M16, 5-Pins
- Flange: 40 mm
Materials:
- Housing: Aluminum solid
- Shaft: Stainless Steel
Environmental Conditions:
- Operating Temperature: 0 to +80 °C
The IMG40S8ABNPT07 incremental encoder is an excellent choice for precise motion control applications, offering reliable performance in industrial automation systems.
