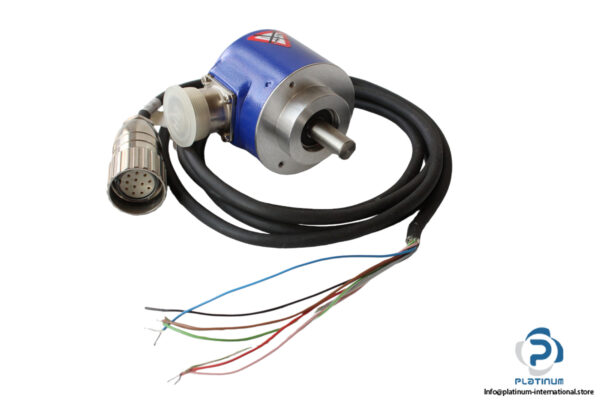

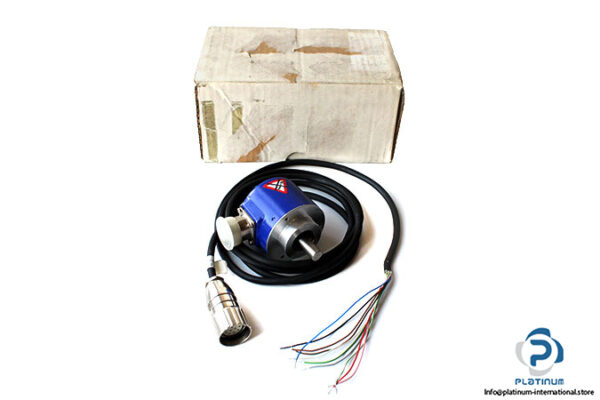

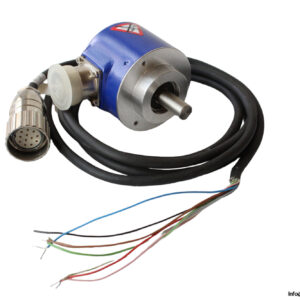

IVO GI355.070C313 INCREMENTAL ENCODER

The IVO GI355.070C313 is a high-precision incremental encoder engineered for demanding industrial environments. With a resolution of up to 360 PPR, rugged housing, and flexible connectivity, it ensures reliable signal transmission and precise feedback for motion control systems.

Manufacturer: IVO
Type: Incremental Encoder

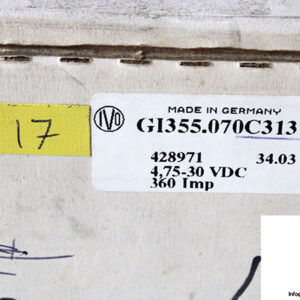

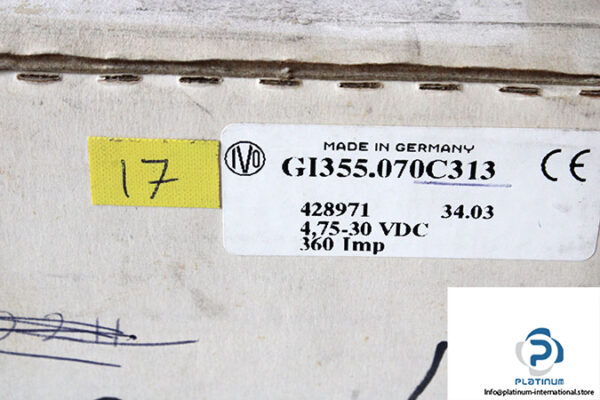

Model: GI355.070C313
Part No.: 428971 34.03

Technical Information

• Supply Voltage: 4.75 / 30 VDC
• Flange Type: Clamping flange
• Shaft Diameter: 10 mm
• Resolution Max.: 360 Pulse Per Revolution (PPR)
• Output Circuit: Line driver/RS422, Push-pull, Short-circuit proof
• Operating Speed: ‰¤10000 rpm
• Output Frequency: ‰¤150 kHz
• Connection: Connector M23, 12-pin, Cable 1 m
• Protection Class: IP 54
• Housing Material: Aluminium
• Operating Temperature: -25 / +100 °C
