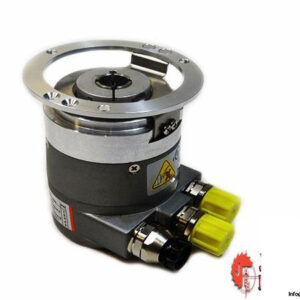

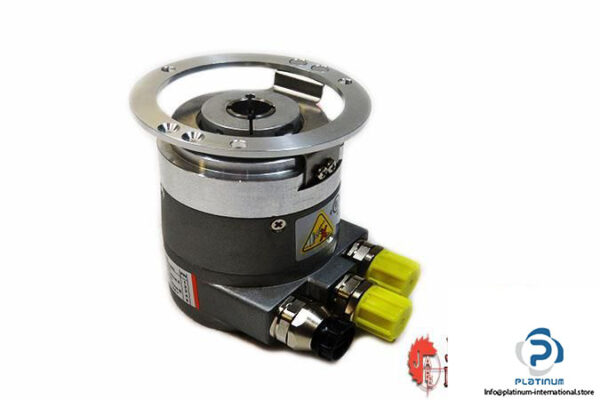

KÃœBLER 8.5878.4432.3112 ABSOLUTE ENCODER

The Kübler Absolute Encoder 8.5878.4432.3112 is a robust and highly precise encoder, engineered for demanding industrial environments. With high resolution and reliable PROFIBUS DP communication, it ensures optimal position feedback performance even in harsh conditions.

Manufacturer: Kübler
Type: Absolute Encoder

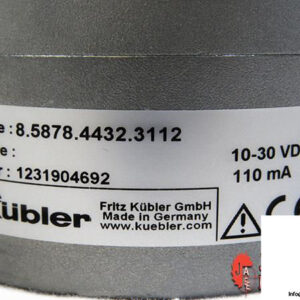

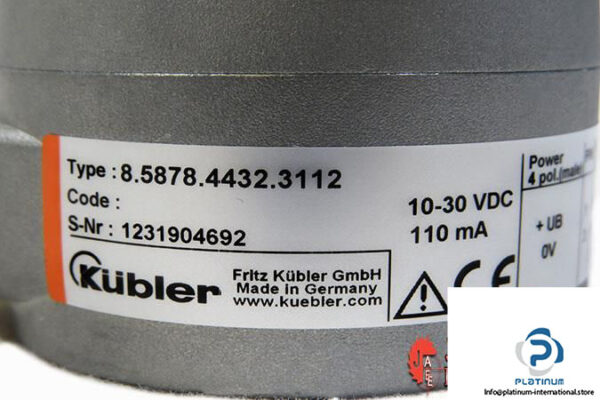

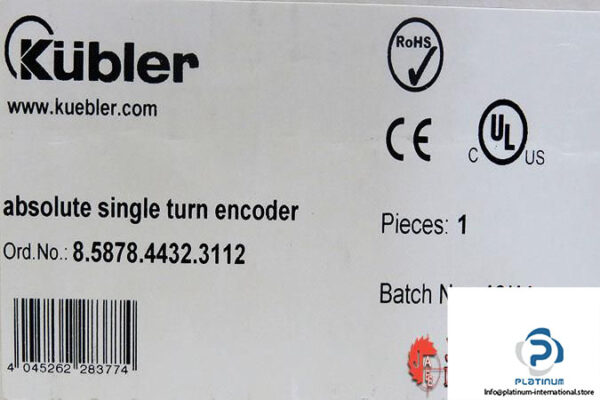

Model: 8.5878.4432.3112
Serial No.: 1231904692

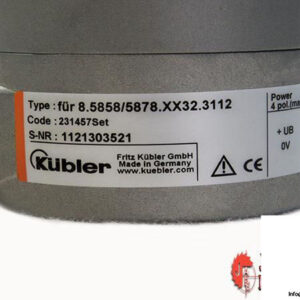

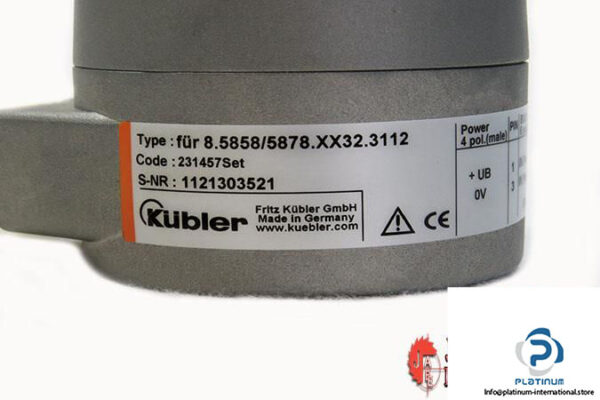

Order No.: 8.5858/5878.XX32.3112
Code: 231457set
Reference No.: 1121303521

Technical Information

• Flange Design: Stator Coupling

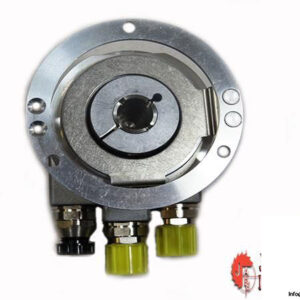

• Shaft Design: Blind Hollow Shaft
• Shaft Diameter: 12 mm
• Voltage Supply: 10 / 30 VDC
• Resolution: 16 bit (Singleturn)
• Max. Current Consumption: 110 mA

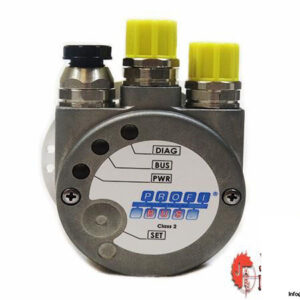

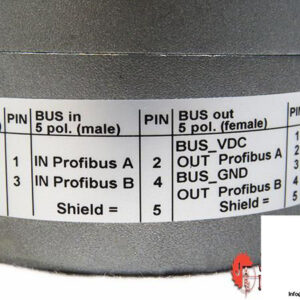

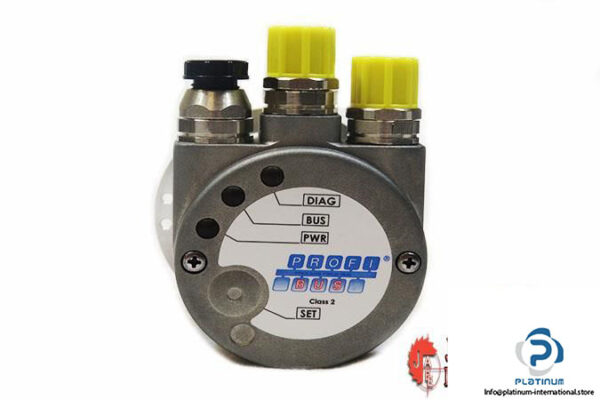

• Interface: PROFIBUS DP
• Type of Connection: M12 Connector, 12-Pin, Radial
• Baud Rate: Max. 12 Mbit/s
• Protection Class: IP65
• Operating Temperature: -40 / 80 °C
