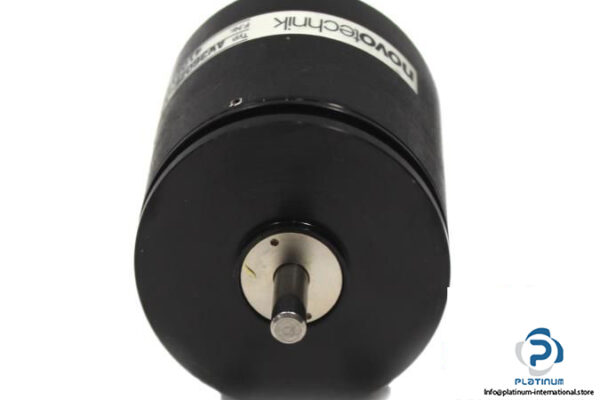

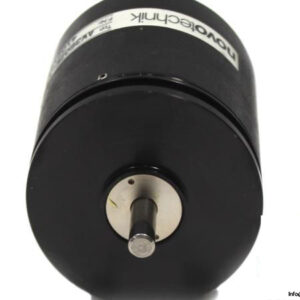

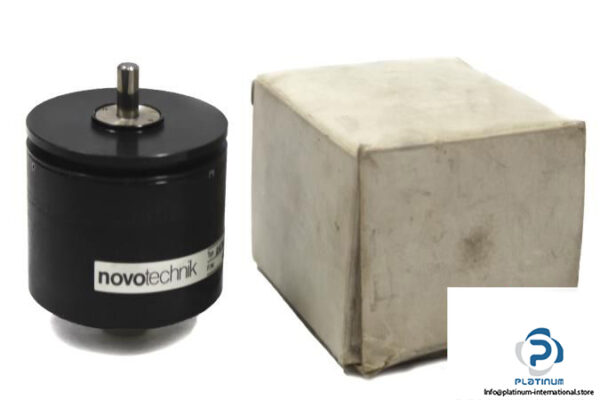

NOVOTECHNIK AW360ZE-10 HYBRID POTENTIOMETER
The AW360ZE-10 Hybrid Potentiometer by Novotechnik is an industrial-grade rotary sensor built for high precision and reliability in motion control applications. Its advanced hybrid circuitry and 12-bit resolution provide consistent angular position sensing over a full 360° range. Ideal for demanding environments, this potentiometer ensures accuracy, durability, and easy integration with control systems.
Manufacturer: NOVOTECHNIK
Type: HYBRID POTENTIOMETER

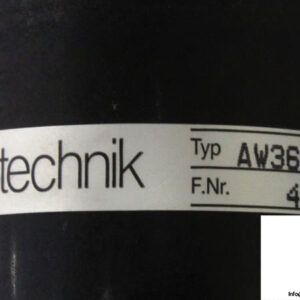

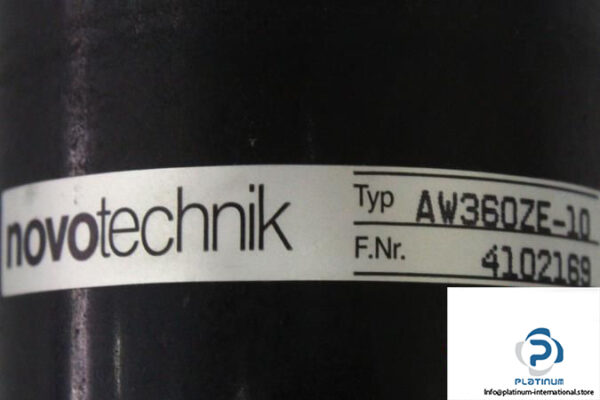

Model: AW360ZE-10

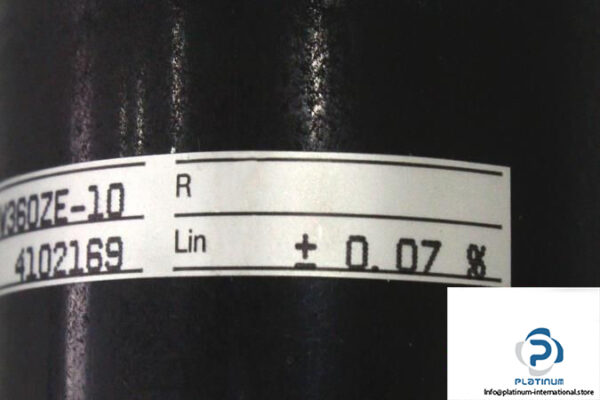

Part No.: 4102169
Technical Information
- Shaft Type: Sealed Shaft
- Mounting: 3 Mounting Clamps Z-3-31
- Shaft Diameter: 6 mm
- Resolution: 12 bit
- Voltage Supply: 15 VDC
- Electrical Circuitry: Hybrid Circuit Integrated into Housing
- Angular Range: Full 360°

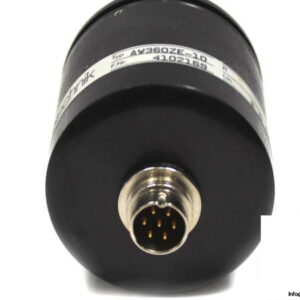

- Connection Type: 7-pin Connector
- Protection Class: IP65

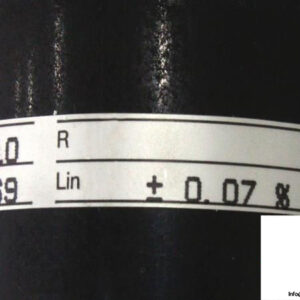

- Linearity: 0.07%
- Temperature Range: 0 / 70 °C
