Sick|Stegmann A3M60B-S1PB013X13 Absolute Encoder
The Sick|Stegmann A3M60B-S1PB013X13 is a compact and high-precision absolute encoder designed for industrial automation and motion control. With Profibus interface, high 13-bit resolution, and durable construction, it ensures reliable performance in demanding environments.
Manufacturer: Sick|Stegmann
Type: Absolute Encoder
Model: A3M60B-S1PB013X13

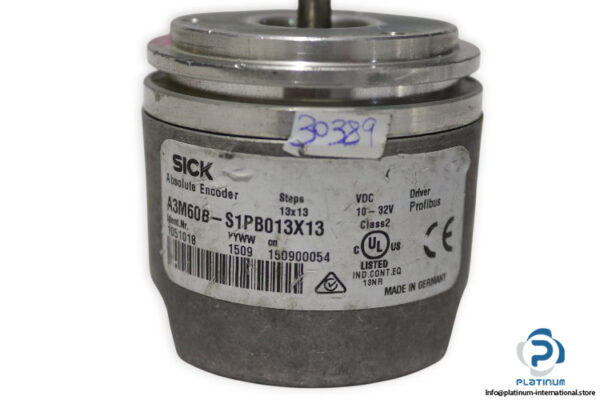

Yyww/cn: 1509 150900054
Part No.: 1051018
Technical information
- Voltage: 10 to 32 V DC
- Step: 13 x 13
- Driver: Profibus
- Class: 2
- Number of Steps per Revolution (Max. Resolution): 8192 (13 bit)
- Number of Revolutions: 8192 (13 bit)
- Initialization Time: Approx. 1 s

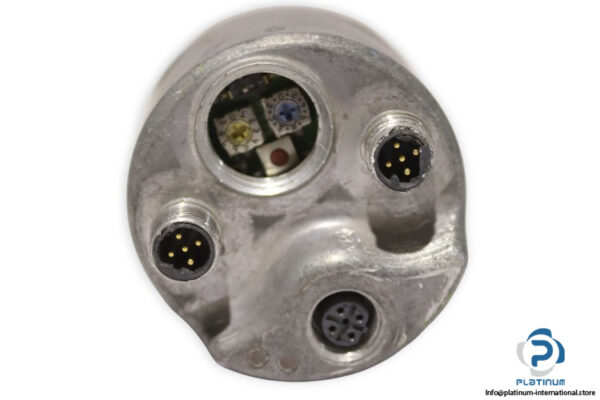

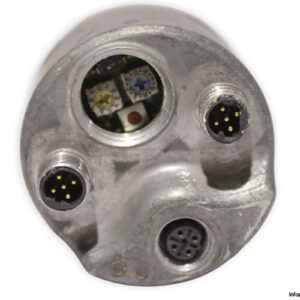

- Connection Type: Male connector, 2x, M12, 5-pin, axial; Female connector, 1x, M12, 5-pin, axial
- Power Consumption: ‰¤ 1.5 W
- Material: Stainless steel / Aluminum
- Operating Temperature: -10 °C to +70 °C
- Shaft Diameter: 6 mm
- Shaft Length: 10 mm

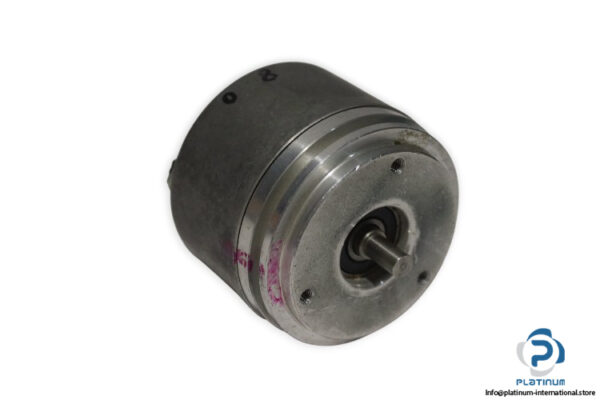

- Mechanical Design: Solid shaft, Servo flange
