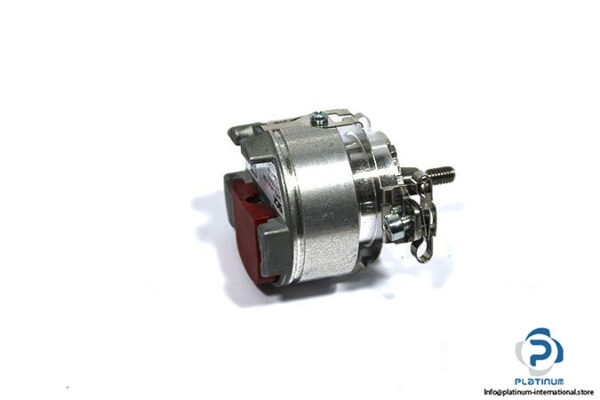

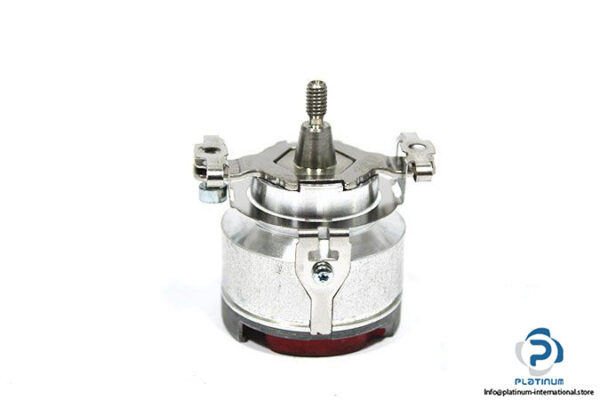

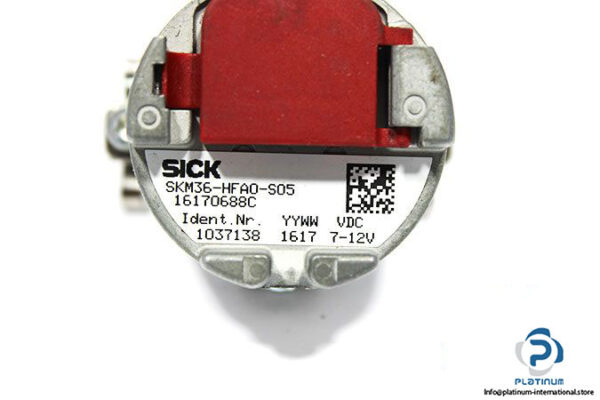

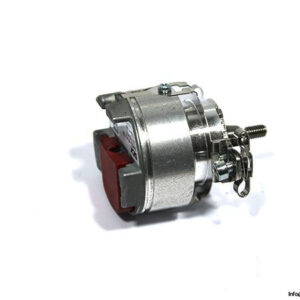

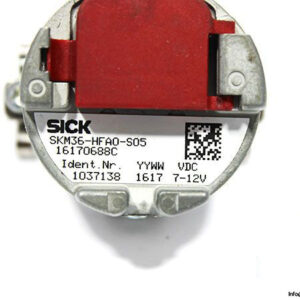

SICK SKM36-HFAO-S05 ROTARY MOTOR FEEDBACK SYSTEM
The SKM36-HFAO-S05 by SICK is a high-resolution rotary motor feedback system with HIPERFACE® interface, delivering precise positioning and speed feedback. Designed for high-performance servo applications with compact mounting options and wide temperature endurance.
Manufacturer: SICK
Type: Motor Feedback Systems Rotary Hiperface
Model: SKM36-HFAO-S05
Id No.: 16170688C
Part No.: 1037138 1617
Technical Information
- Shaft Type: Tapered shaft
- Flange Type / Stator Coupling: Spring mounting plate, stator coupling
- Sine/Cosine Periods Per Revolution: 128
- Absolute Revolutions (ascertainable): 4096
- Code Type (Absolute Value): Binary
- Communication Interface: HIPERFACE®
- Connection Type: Male connector, 8-pin, radial
- Supply Voltage: 7“12 V DC
- Power Consumption (Without Load): 60 mA
- Operating Speed: 9,000 min»¹ (U/min)
- Operating Temperature Range: “20 °C to +110 °C
