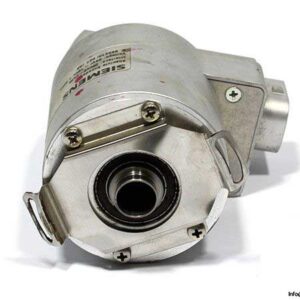

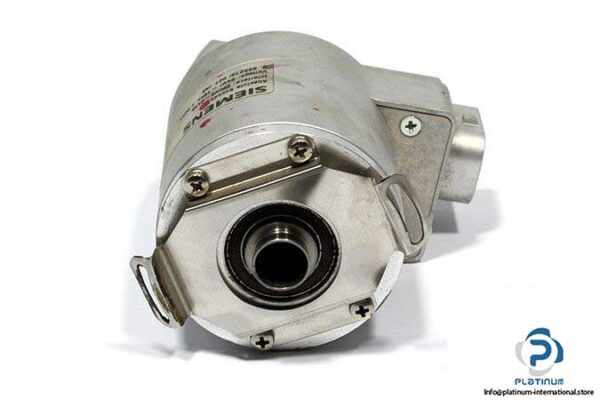

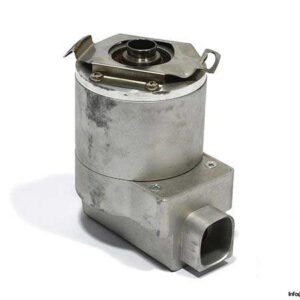

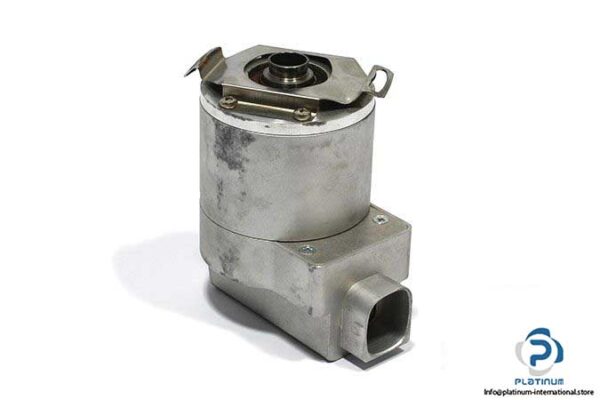

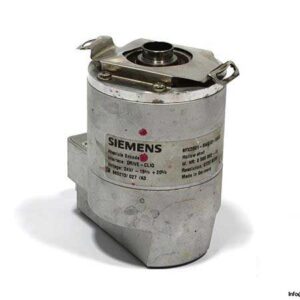

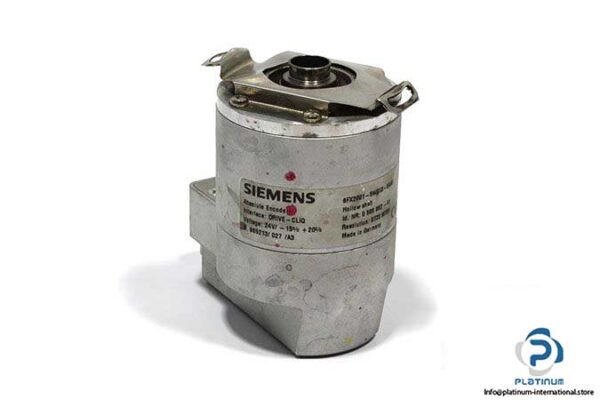

SIEMENS ABSOLUTE ENCODER “ MODEL 6FX2001-5WD13-0AA1

This premium Siemens Absolute Encoder is engineered for precision feedback in motion control systems. With high-resolution output and robust build quality, it is designed to meet demanding industrial automation standards, offering dependable performance and communication via DRIVE-CLiQ interface.

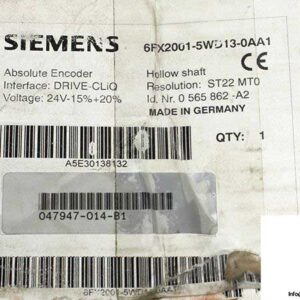

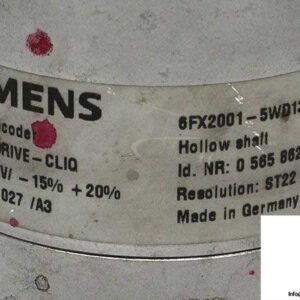

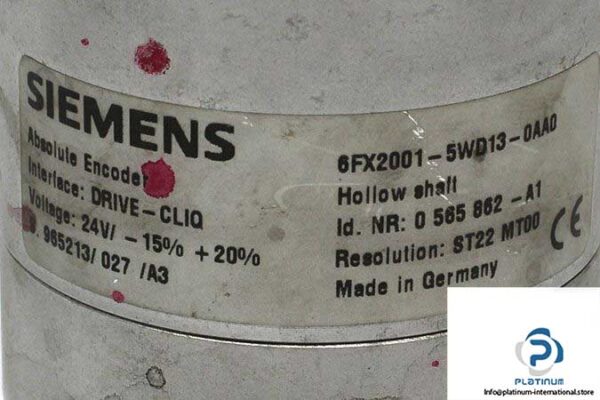

Manufacturer: SIEMENS
Type: Absolute Encoder

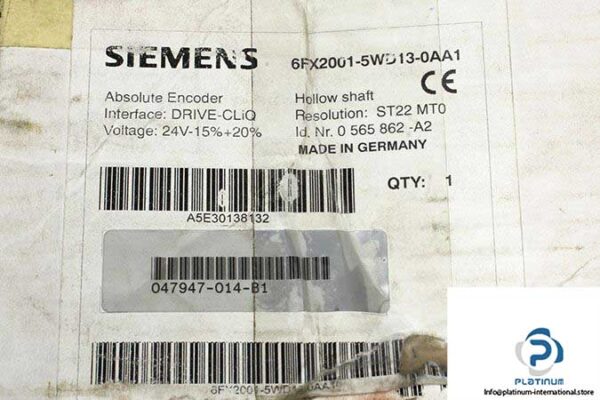

Model: 6FX2001-5WD13-0AA1
ID No.: 0 565 862-A1
Reference No.: 965213/027/A3
Successor: 6FX2001-5WD13-0AA0

Technical Information

• Shaft Version: Hollow Shaft
• Shaft Diameter: 12 mm
• Flange Type: Torque Bracket
• Operating Voltage: 24 V DC
• Resolution: 22 bit
• Transmission Rate: 100 Mbit/s
• Incremental Track: 2048 S/R, 1 Vpp (encoder-internal only)
• Measurement Deviation (Angle Rotation): 36″
• Manner of Function: Single-turn
• Interface: DRIVE-CLiQ
• Encoder Output Design: PNO Encoder Profile V4.1
• Connection Type: DRIVE-CLiQ Connector, Radial
• Protection Class: IP64
• Temperature Range: -20 / 100 °C
