SIKO WH58M-0029 ANGLE ENCODER

The SIKO WH58M-0029 is a high-precision angle encoder designed for demanding industrial applications. With a 12-bit resolution and SSI interface, this encoder delivers reliable performance in motion control and automation systems. It is built with a durable through hollow shaft and IP65-rated protection, ensuring longevity in harsh conditions.

Manufacturer: SIKO
Type: Angle Encoder
Model: WH58M-0029

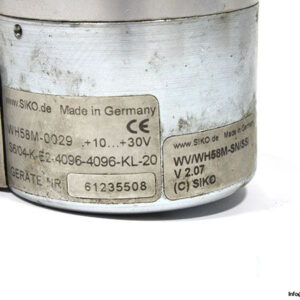

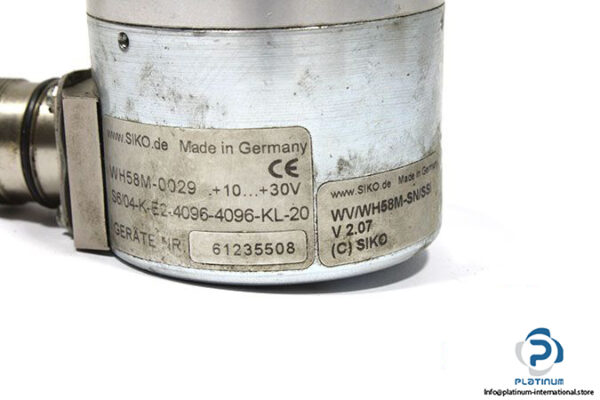

Order Code: S6/04-K-E2-4096-4096-KL-20
MRN: WH58M-S6/04-K-E2-4096-4096-KL-20

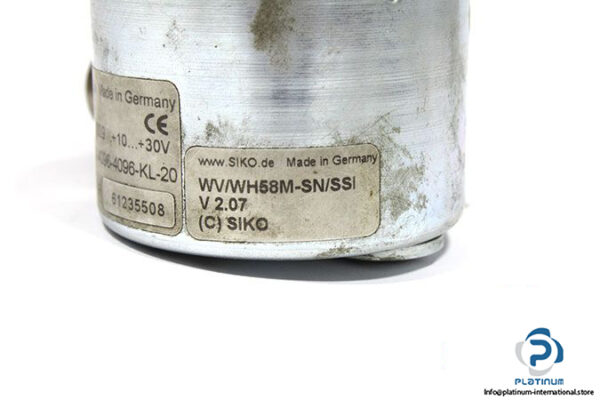

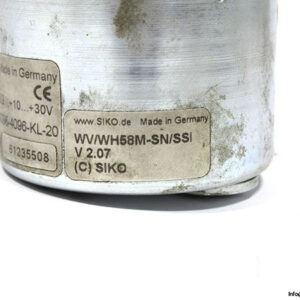

Ref No.: 61235508 / WV/WH58M-SN/SSI V 2.07

Technical Information

• Speed: max. 6000 rpm

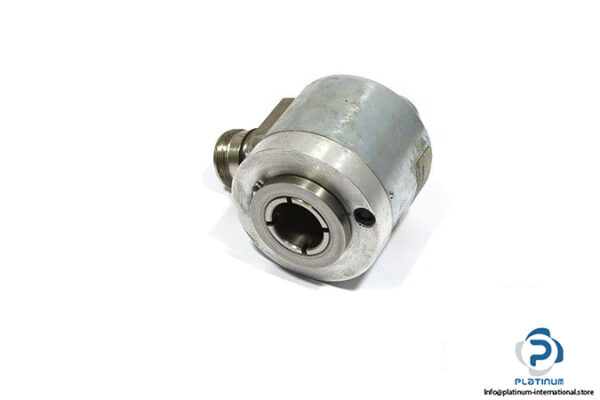

• Shaft Type: Through hollow shaft with clamp ring
• Shaft Size: 20 mm
• Protection: IP65
• Operating Voltage: 10 / 30 V DC
• Interface / Protocol: SSI with external calibration input

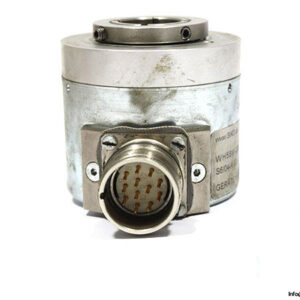

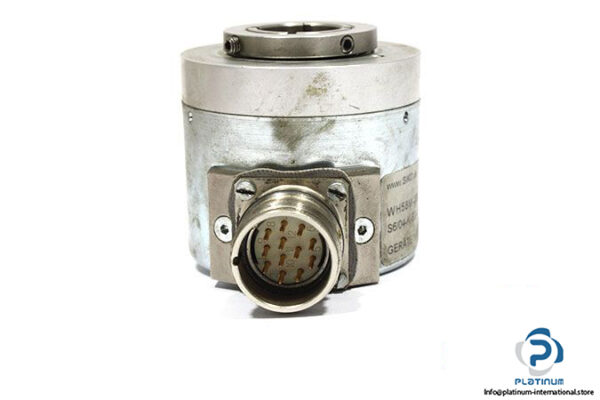

• Connection Type: Connector M23, 12-pin
• Steps per Revolution: 4096
• Resolution: 12 bit
• Temperature Range: -20 … +100 °C
