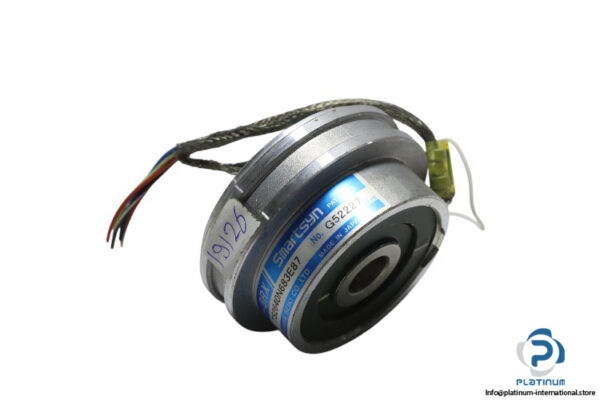

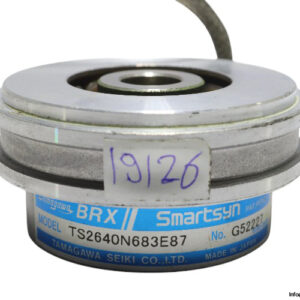

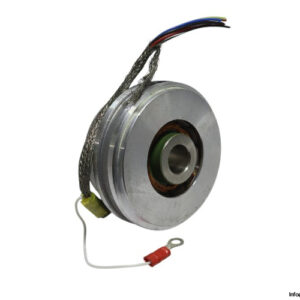

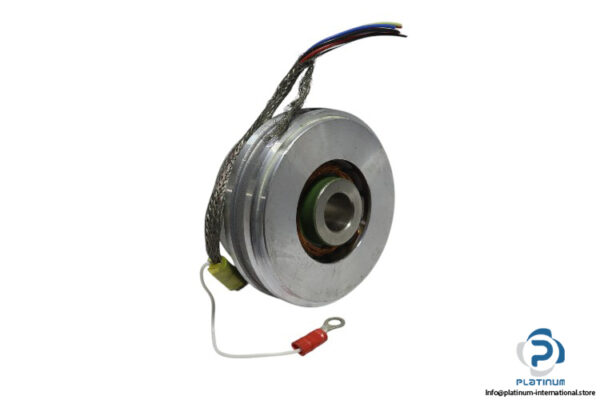

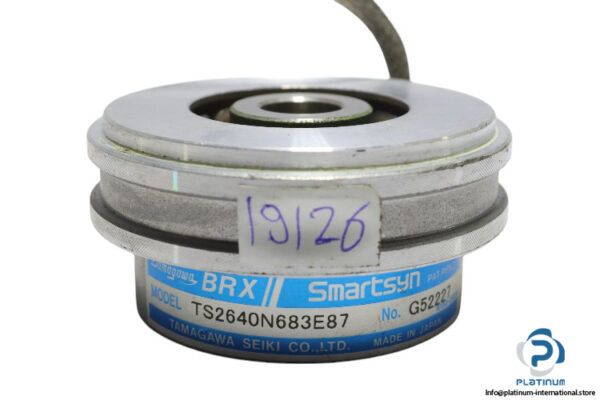

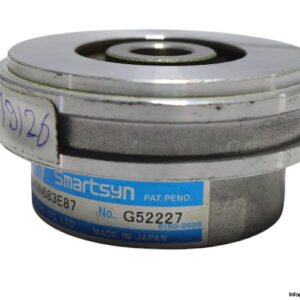

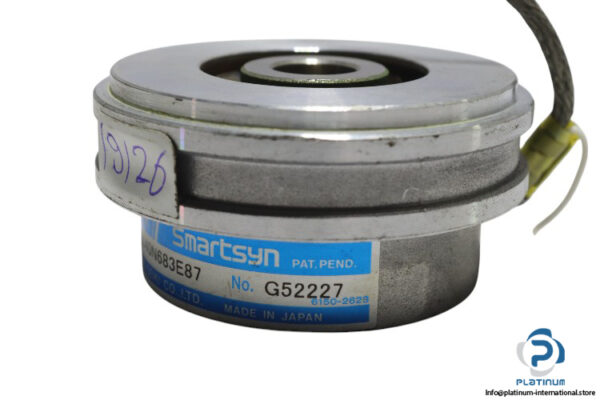

Tamagawa TS2640N683E87 “ Brushless Pancake Resolver

The Tamagawa TS2640N683E87 is a high-precision brushless pancake resolver from the Smartsyn range. Designed for industrial applications, this resolver offers exceptional performance with a high-frequency input, minimal power consumption, and an operating speed up to 10,000 min^-1.

• Manufacturer: Tamagawa
• Type: Brushless Pancake Resolver
• Model: TS2640N683E87
• Part No.: G52227

Technical Information:

• Range: Smartsyn
• Function: 3X-BRX
• Input Voltage: 7 Vrms AC
• Input Current: 15 mA max.
• Frequency: 10 kHz
• Input Power: 0.03 W
• Dielectric Strength: 500 Vrms AC, 60 s
• Max. Operating Speed: 10,000 min^-1
• Operating Temperature Range: -55 to +150°C
