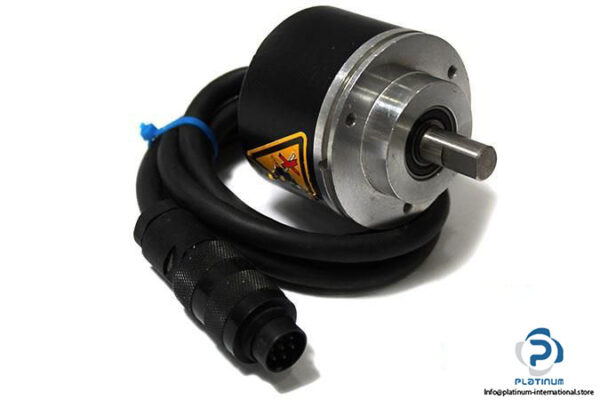

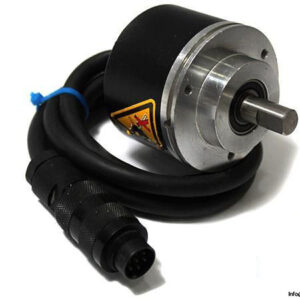

TR ELECTRONIC IE58A INCREMENTAL ENCODER

The TR Electronic IE58A Incremental Encoder is designed for high-performance industrial automation tasks requiring precise rotational measurement. With its IP65 protection class and push-pull HTL output, this encoder ensures reliable performance in tough environments.

Manufacturer: TR ELECTRONIC
Type: Incremental Encoder

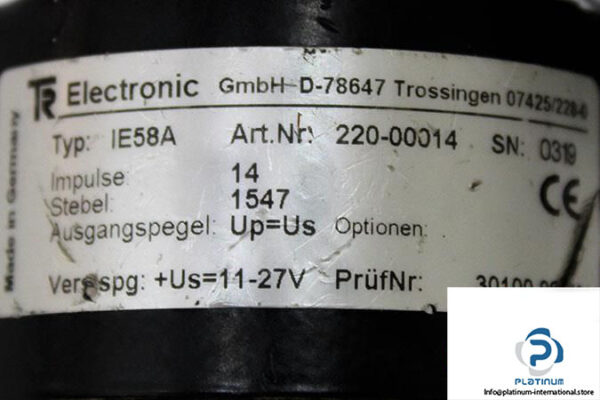

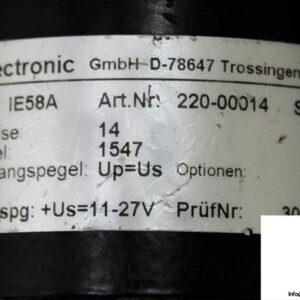

Model: IE58A
Art. Nr.: 220-00014
Stebel: 1547

Technical Information

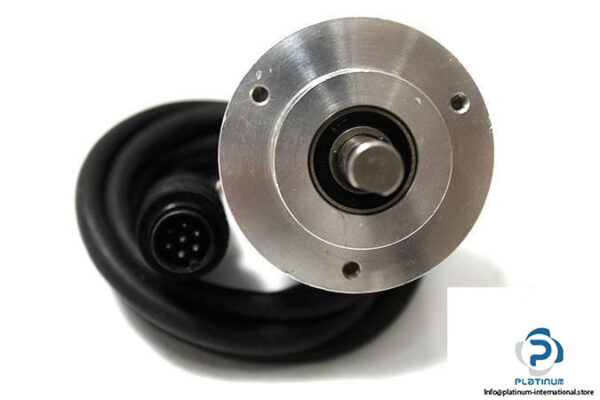

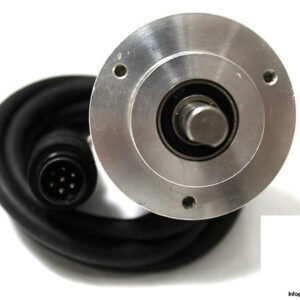

• Flange Type: ZB36
• Shaft Diameter: 10 mm
• Impulse: 14
• Voltage Supply: 11 / 27 VDC
• Output Driver: HTL – Push-Pull

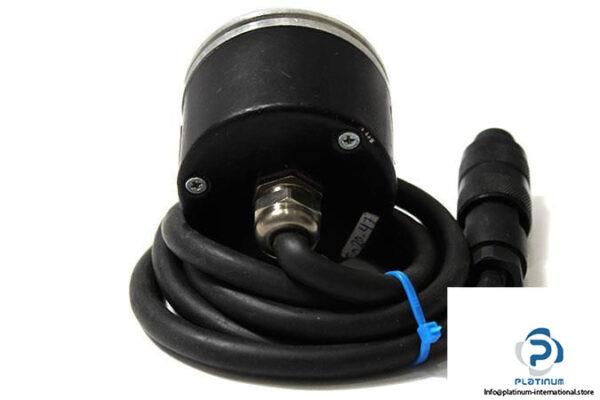

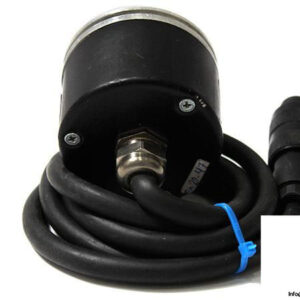

• Connection Type: Axial Cable Output (Binder 7P)
• Protection Class: IP65
• Max Temperature: 70 °C
