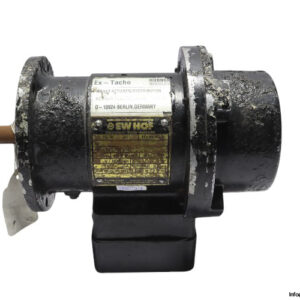

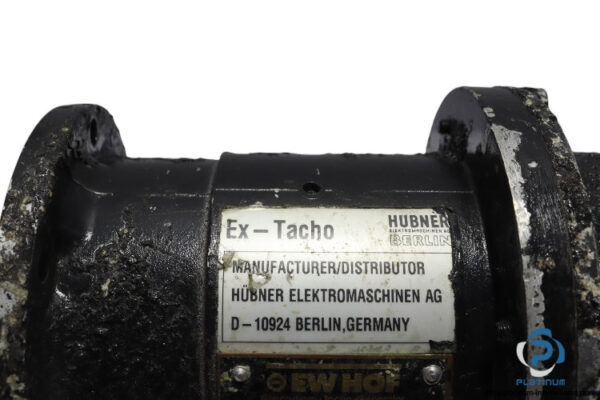

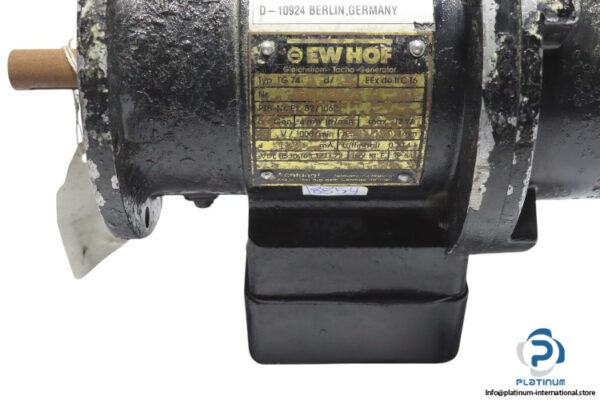

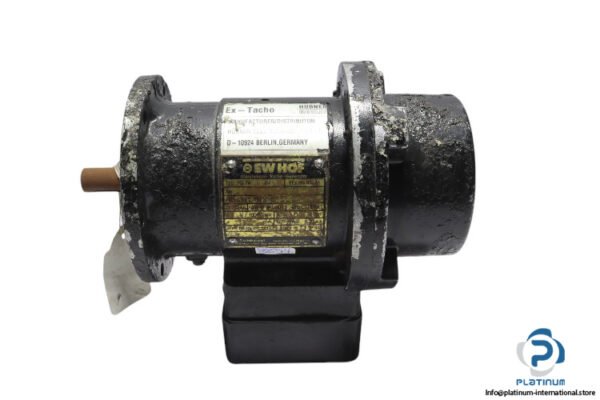

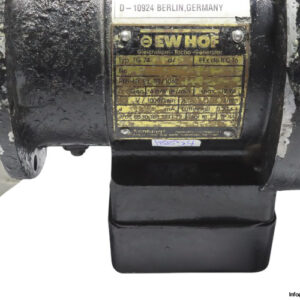

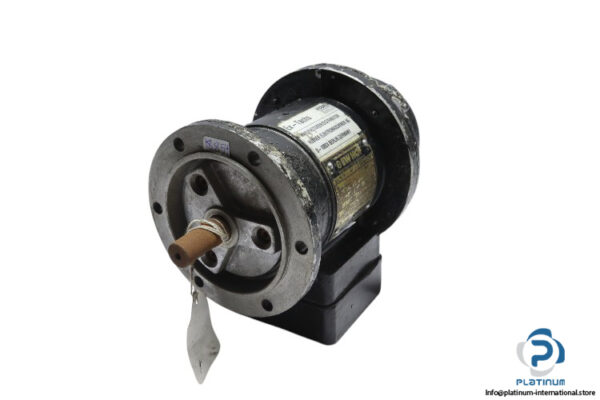

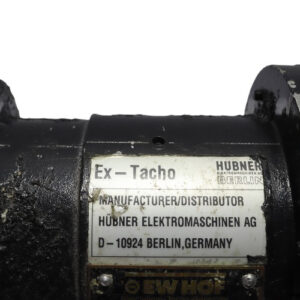

Hubner Berlin TG 74 d/ Tachogenerator
The Hubner Berlin TG 74 d/ Tachogenerator is a precision speed measurement device designed for use in industrial environments, including explosive areas. Certified to EEx de IIC T6 standards, this tachogenerator ensures reliable performance with a solid shaft design and a maximum operating speed of 1000 min»¹.
- Manufacturer: Hubner Berlin
- Type: Tachogenerator
- Model: TG 74 d/
- PTB No.: Ex-82 / 1062
Technical Information
- Explosive Environments Certification: EEx de IIC T6
- Maximum Operating Speed: 1000 min»¹
- Shaft Type: Solid Shaft
- Shaft Diameter: 11 mm
- Power: 12 W
- Torque: 1.5 Ncm
- Operating Temperature: -30 to 130 °C
- Protection: IP54
- Standard: VDE 0530/11.72
