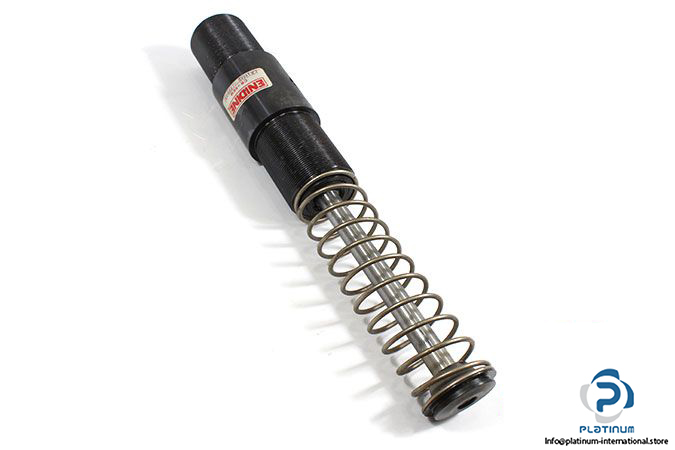

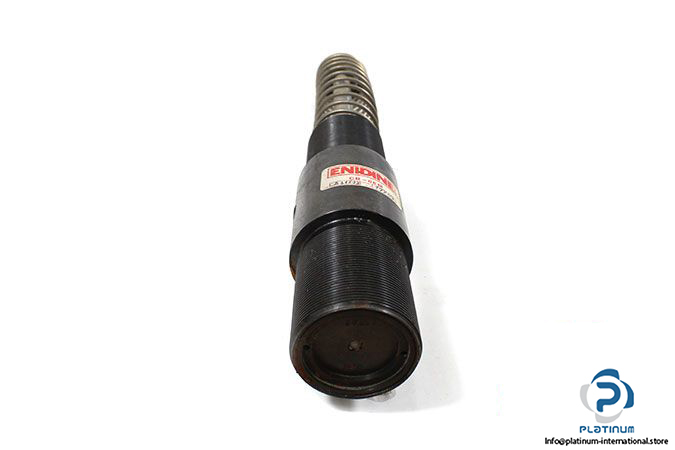

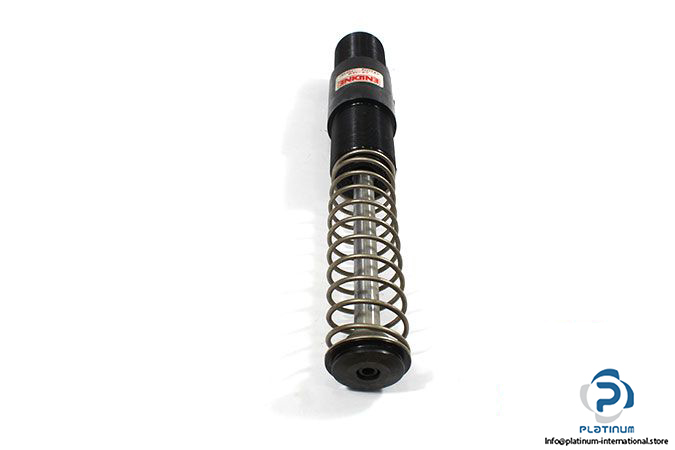

Manufacturer: ENIDINE

Type: NON-ADJUSTABLE SHOCK ABSORBER

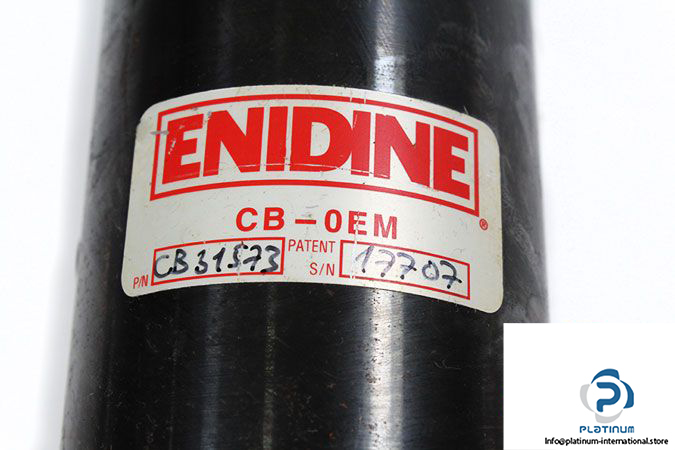

Model: CB-OEM

Part No.: CB31573

Serial No.: 17707

Application:

• Printing Presses
• Turnstiles
• Tension / Compression Applications

Features:

• Incorporating optional fluids can expand the standard operational temperature range
• Custom orificed non-adjustable units (CBOEM) can beengineered to meet specific application requirements.

Stroke Length: 185 mm

Rod Diameter: 19.2 mm

Piston Diameter: 60 mm

Total Length: 453 mm

Temperature Range: -10 ….. 80 ^°C

Weight:  5.04 kg
