Manufacturer: ENDRESS & HAUSER ‎

Type: Flow Meter

Model: Proline Promass 83F

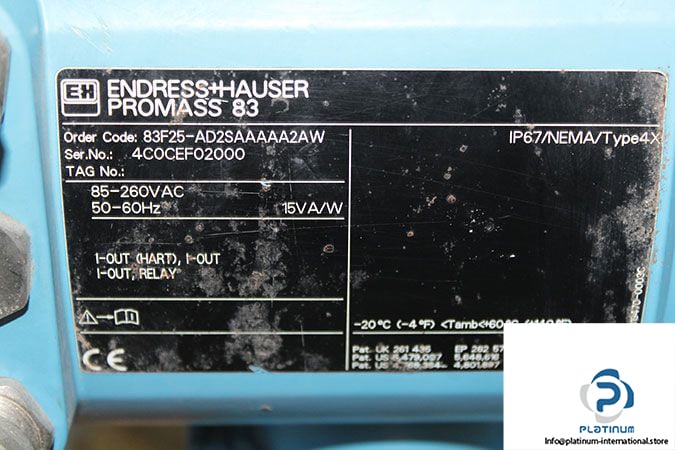

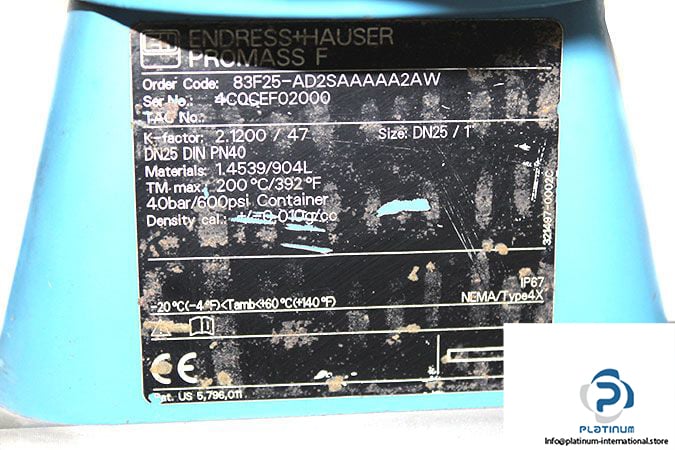

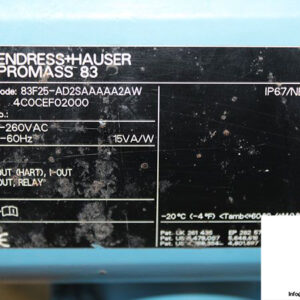

Order Code: 83F25-AD2SAAAAA2AW

Application: The Coriolis measuring principle operates independently of the physical fluid properties, such as viscosity and density.

Measuring ranges for liquid: 0 to 18000 kg/h

Size: DN25

Connection: DN 25 PN40 Flange

Status input: 3 to 30 V DC

Resistance: 5 kΩ

Material: 1.4539/904L

Temperature: 200°C

Pressure: 40 bar

Switching output: Relay output (Promass 83) Normally closed (NC or break) or normally open (NO or make) contacts available (factory setting: relay 1 = NO, relay 2 = NC), max. 30 V / 0.5 A AC; 60 V / 0.1 A DC, galvanically isolated.

Protection Class: IP67

Weight: 14 kg
