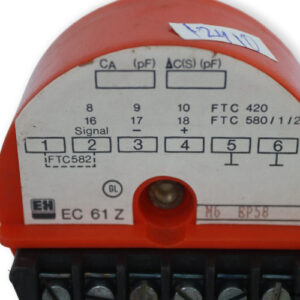

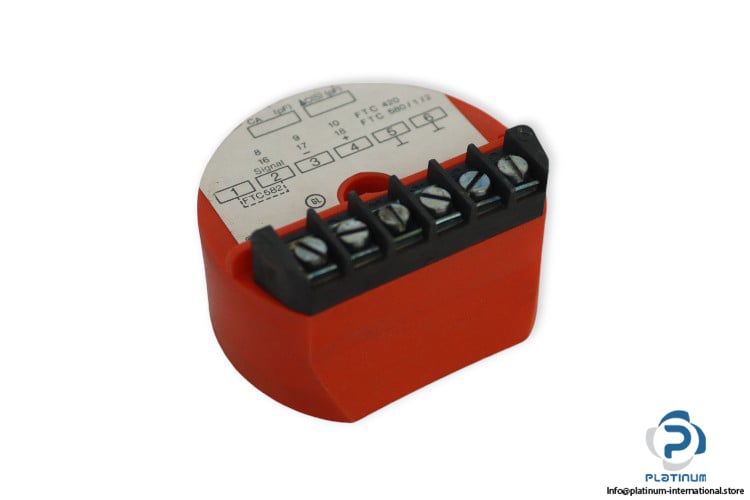

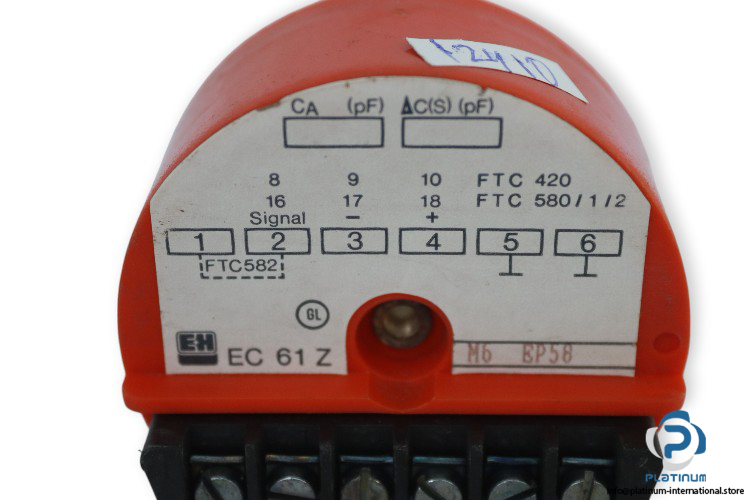

Endress+Hauser EC61Z Capacitance Limit Detection Electronic Insert

The Endress+Hauser EC61Z is a high-precision electronic insert designed for capacitance limit detection applications, ensuring stable and reliable performance even under demanding industrial conditions.

Manufacturer: Endress+Hauser
Type: Capacitance Limit Detection Electronic Insert
Model: EC61Z
Code: M6 EP58
Used With: FTC 420, FTC 580/1/2

Technical Information

• Power Supply: 15 V ± 0.9 V
• Output Signal Voltage: 3 / 12 V, equivalent to 10 / 350 pF
• Measuring Frequency: Approx. 500 kHz
• Identification: Orange
• Protection Type: Electronics IP55, Terminals IP00
• Permissible Ambient Temperature: -20 / +100 °C

Features and Benefits

• Applicable over a wide temperature range
• Effective even with conductive deposits on the probe
