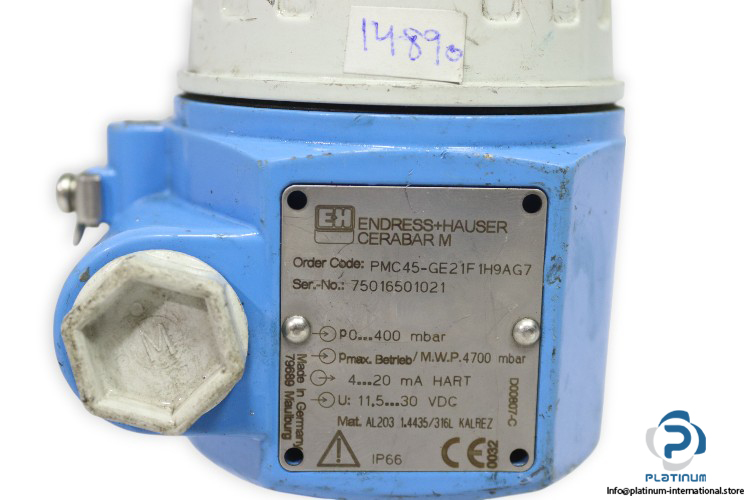

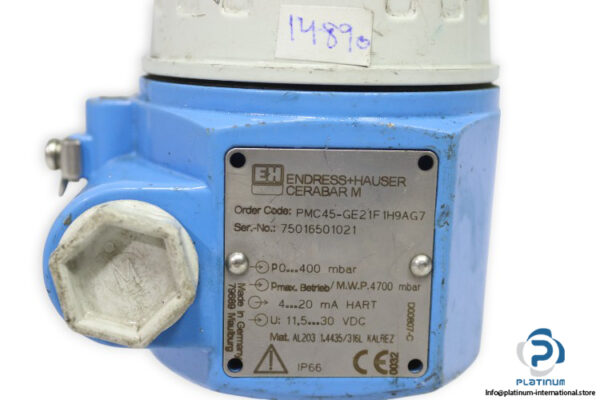

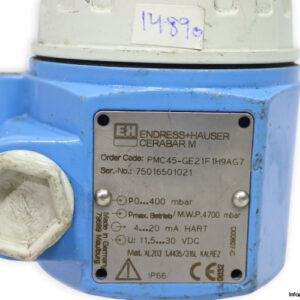

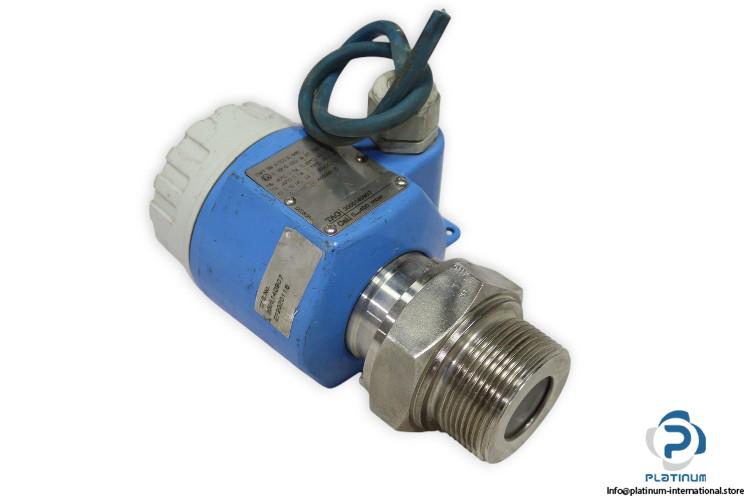

ENDRESS+HAUSER PMC45-GE21F1H9AG7 PRESSURE TRANSMITTER

This industrial-grade pressure transmitter by Endress+Hauser offers high-precision measurement and reliable operation in demanding environments, including explosive atmospheres. Engineered with HART communication and ATEX certification, it is ideal for hazardous area installations requiring strict compliance and advanced monitoring.

Manufacturer: Endress+Hauser
Type: Pressure Transmitter
Model: PMC45-GE21F1H9AG7

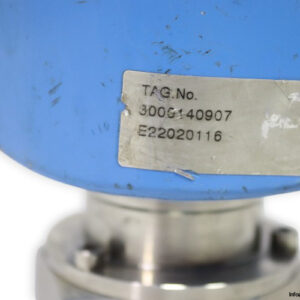

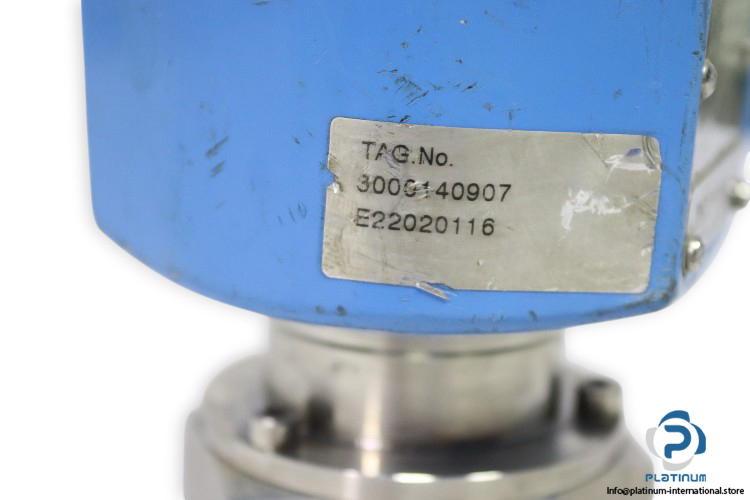

Part No.: 3000140907 / E22020116
Code: D00808-A / XA039P-B
Serial No.: 75016501021

Technical Information

• Connection: 1 ½ inch
• Pressure Range: 0 to 400 mbar
• Max Working Pressure: 4700 mbar
• Input Voltage: Ui < 30 VDC
• Capacitance (Ci): < 10 nF
• Inductance (Li): 0
• Current Range: 4 to 20 mA HART
• Voltage Supply: 11.5 to 30 V DC
• Material: AL203 1.4435 / 316L
• IP Rating: 66

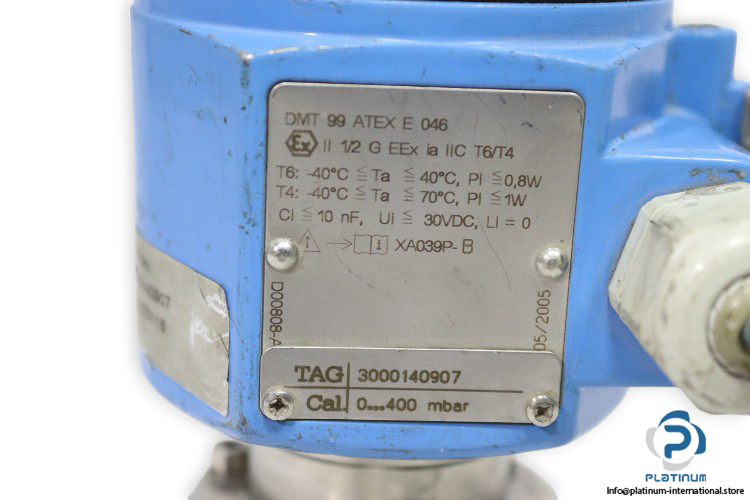

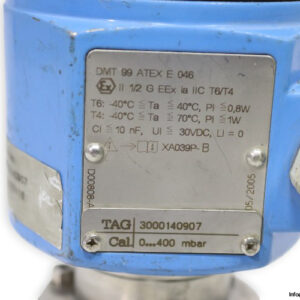

ATEX Certification

• Directive: DMT 99 ATEX E 046
• Classification: II 1/2 G EEx ia IIC T6/T4

Temperature Ratings

• T6 Rating: -40 to 40 °C, 0.8 W
• T4 Rating: -40 to 70 °C, 1 W
