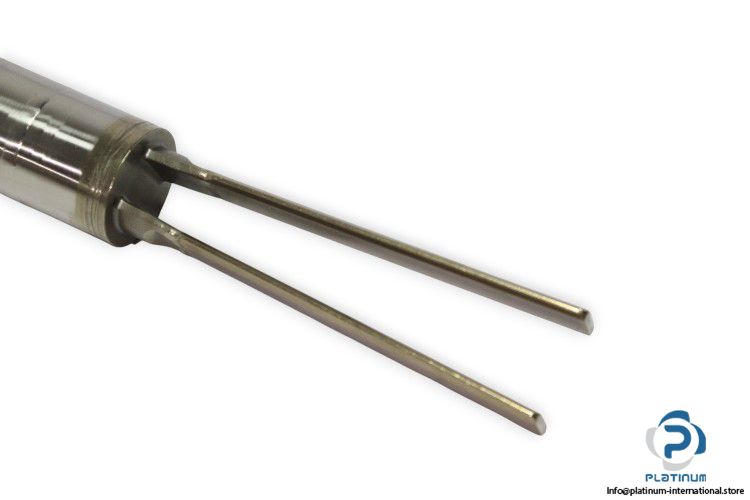

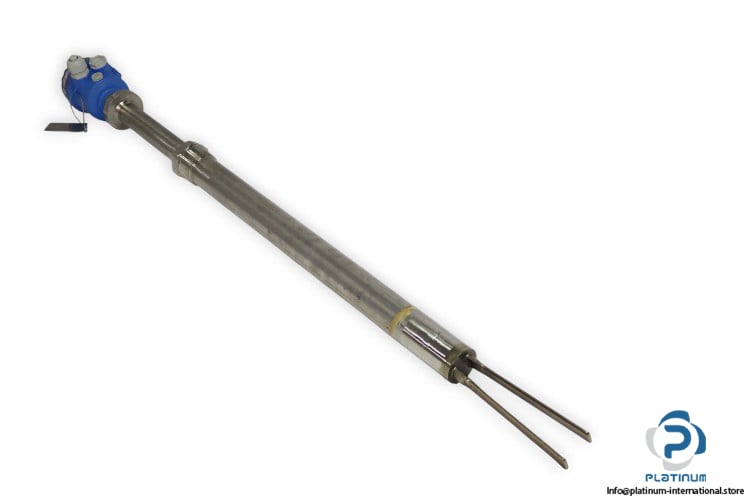

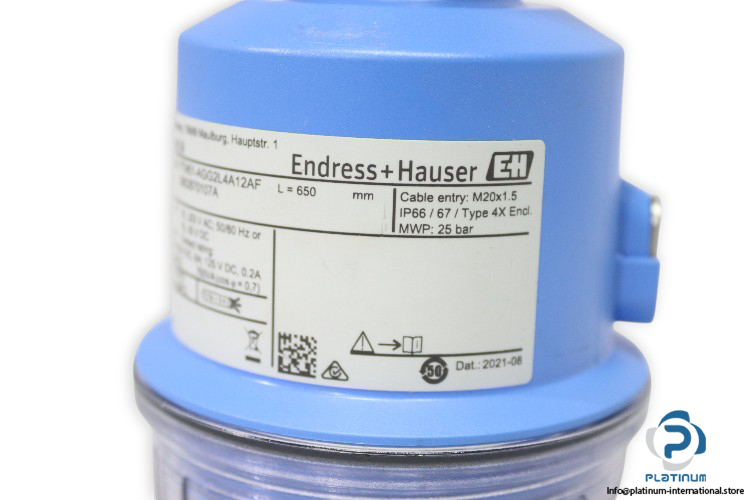

ENDRESS + HAUSER SOLIPHANT M VIBRONIC POINT LEVEL DETECTION
The Endress + Hauser SOLIPHANT M is a highly reliable vibronic point level detection switch, engineered for solid applications in silos and hoppers. With robust stainless steel construction, wide operating temperature range, and DPDT relay output, it ensures dependable monitoring and safety in demanding industrial environments.

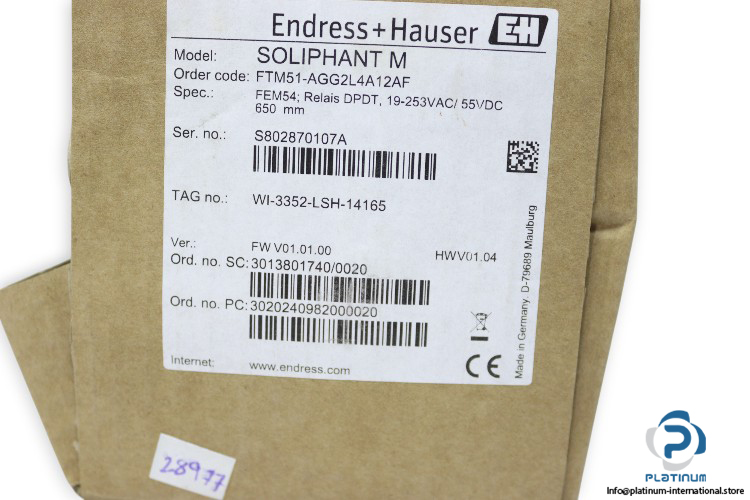

Manufacturer: Endress + Hauser
Type: Vibronic Point Level Detection (Level Limit Switch)

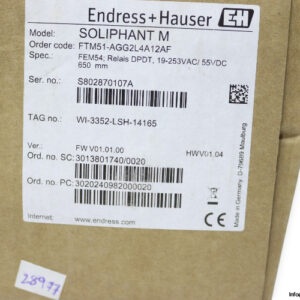

Model: SOLIPHANT M
Order Code: FTM51-AGG2L4A12AF
TAG No.: WI-3352-LSH-14165
Order No. SC: 3013801740/0020
Ord. No. PC: 3020240982000020
Code: FW V01.01.00/ HWV 01.04
Serial No.: S802870107A
Technical Information

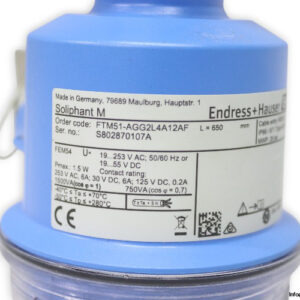

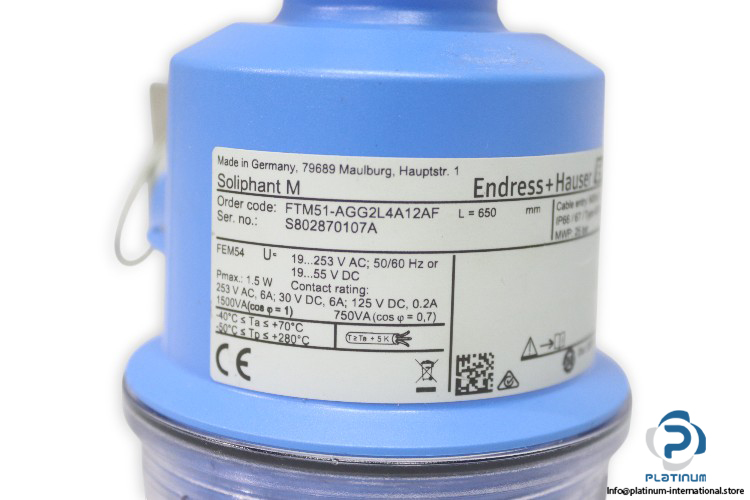

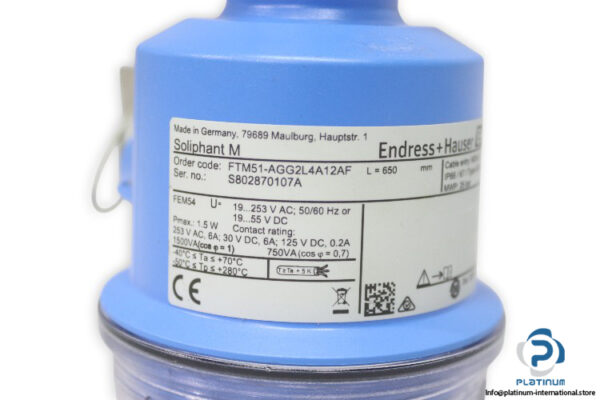

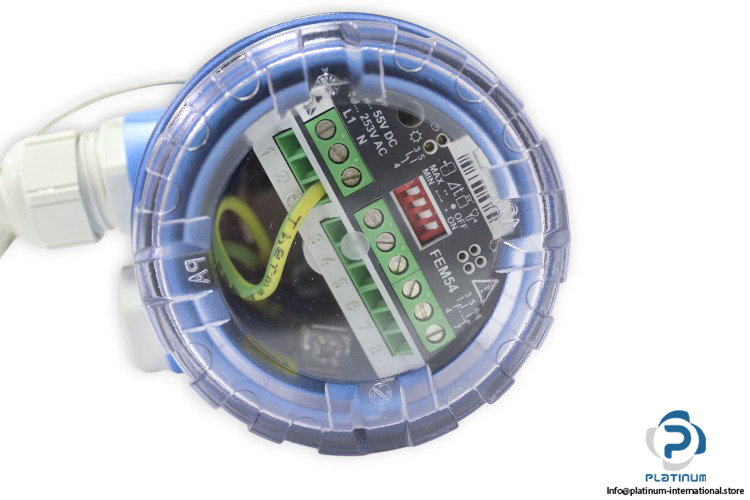

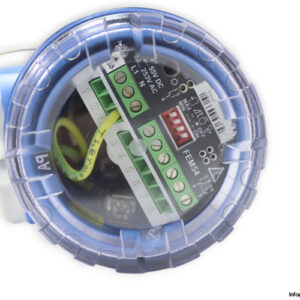

- Output Code: FEM54, relay DPDT 19 to 253 VAC / 55 VDC
- Length: 650 mm
- Process Pressure / Max Overpressure Limit: 25 bar
- Voltage Rating: 19 to 253 V AC / 19 to 55 V DC
- Power: max 1.5 W
- Contact Rating: 253 V AC, 6A / 30 V DC, 6A / 125 V DC, 0.2 A
- Power Capacity: 1500 VA (cos φ = 1) / 750 VA (cos φ = 0.7)
- Frequency: 50/60 Hz

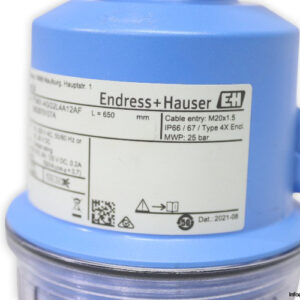

- Cable Entry: M 20 × 1.5
- IP Rating: IP66 / IP67 / Type 4X Enclosure
- Sensor Material: 316 L Stainless Steel
- Temperature Range: -40 °C to +70 °C / -50 °C to +280 °C

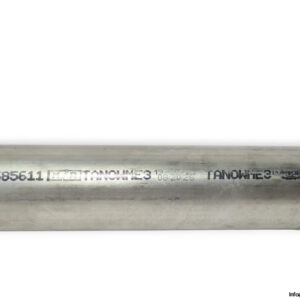

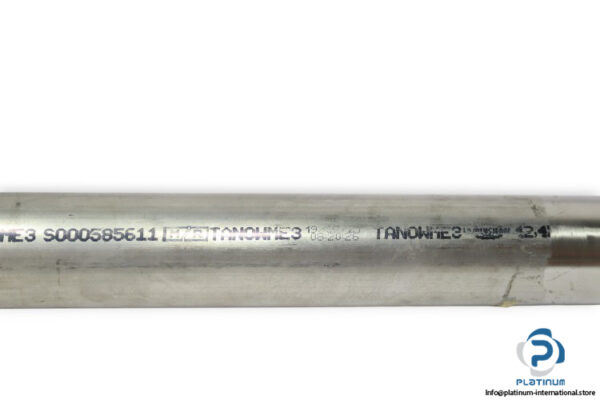

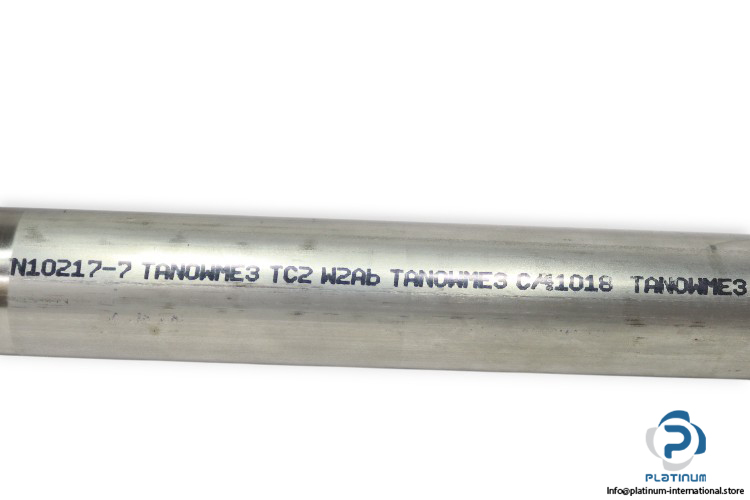

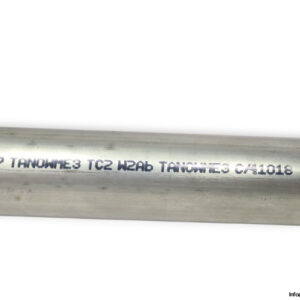

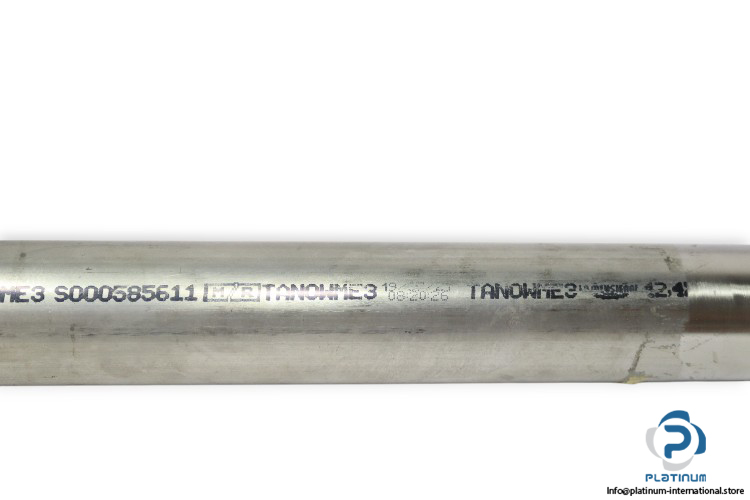

- TANOWME3 Tube Info: Stainless steel tube with codes: TC2 W2Ab, C/41018, N10217-7, S000585611
