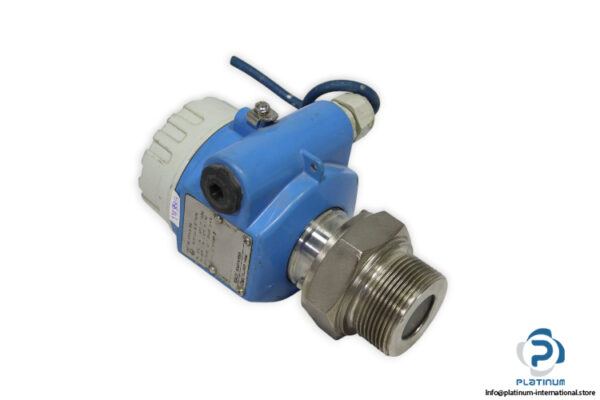

ENDRESS+HAUSER XA039P-B PRESSURE TRANSMITTER
Precision-engineered for safe operation in hazardous environments, this Endress+Hauser pressure transmitter delivers reliable measurement within low-pressure ranges. It is ATEX-certified for explosive atmospheres and features robust construction, making it ideal for industrial automation, process control, and safety-critical applications.
Manufacturer: Endress+Hauser
Type: Pressure Transmitter
Model: XA039P-B
Part No.: 3000141093
Code: D00808-A
Technical Information
- Connection: 1 ½ inch
- Pressure Range: 0 to 400 mbar
- Input Voltage (Ui): < 30 VDC
- Capacitance (Ci): < 10 nF
- Inductance (Li): = 0
ATEX Certification

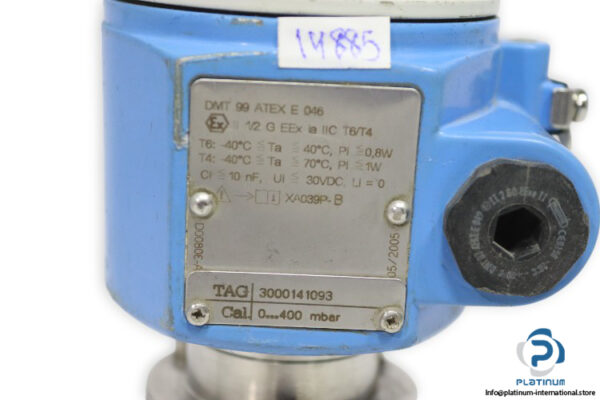

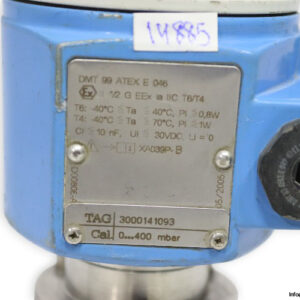

- Directive: DMT 99 ATEX E 046
- Classification: II 1/2 G EEx ia IIC T6/T4 (for explosive atmospheres)
Temperature Ratings
- T6 Rating: -40 to 40 °C, Pi 0.8 W
- T4 Rating: -40 to 70 °C, Pi 1 W
