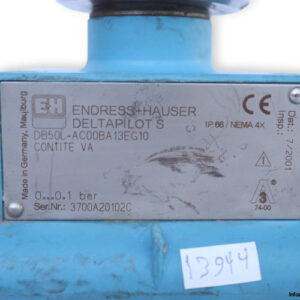

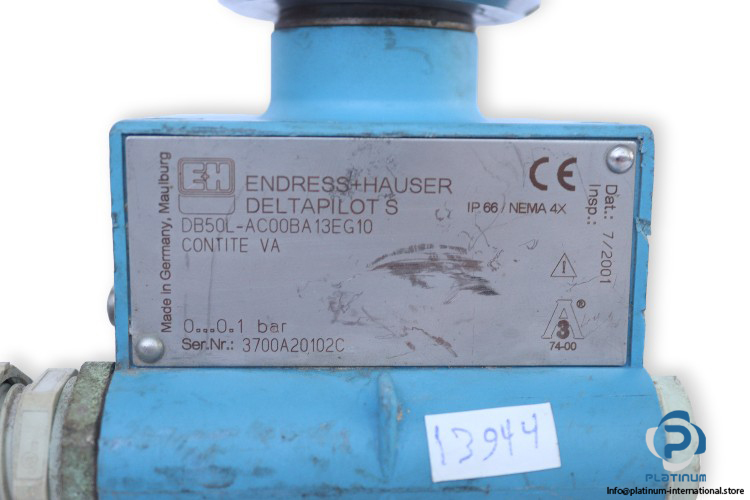

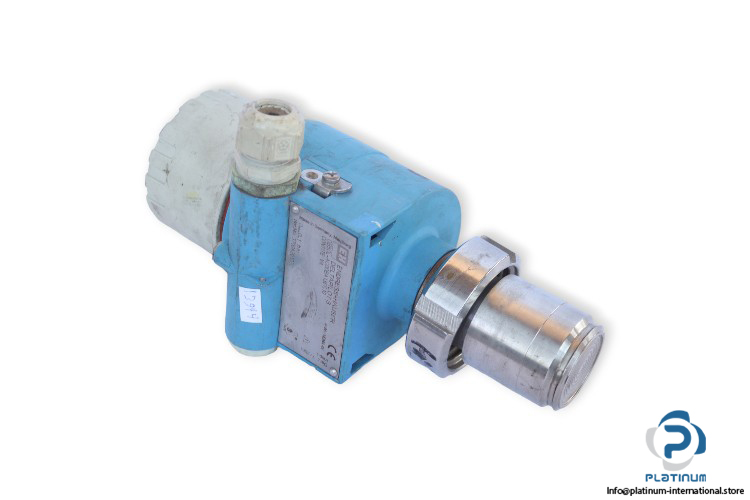

Endress+Hauser DELTAPILOT S DB50L-AC00BA13EG10 Hydrostatic Gauge Pressure Level Transmitter
The Endress+Hauser DELTAPILOT S DB50L-AC00BA13EG10 is a high-precision hydrostatic level transmitter equipped with a CONTITETM measuring cell. It is waterproof, climatic-proofed, and ensures long-term stability, making it ideal for use in food and beverage, fresh water and wastewater, and chemical and pharmaceutical industries.
Manufacturer: Endress+Hauser
Type: Hydrostatic Gauge Pressure Level Transmitter
Model: DELTAPILOT S DB50L-AC00BA13EG10
Technical Information:
- Description: Hydrostatic Level Measurement Pressure Sensor with CONTITETM Measuring Cell, Waterproof, Climatic-Proofed, Long-Term Stability; Used for Food, Fresh Water and Waste Water, Chemical and Pharmaceutical Products
- Measuring Pressure Range: 0 / 0.1 bar / 40 inH2O
- Process Temperature: -10 / 100 °C
- Protection Class: IP68
- Ambient Temperature: -40 / 85 °C
- Length, Diameter: 144 mm, 86 mm
Attachment:

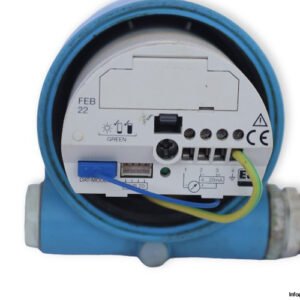

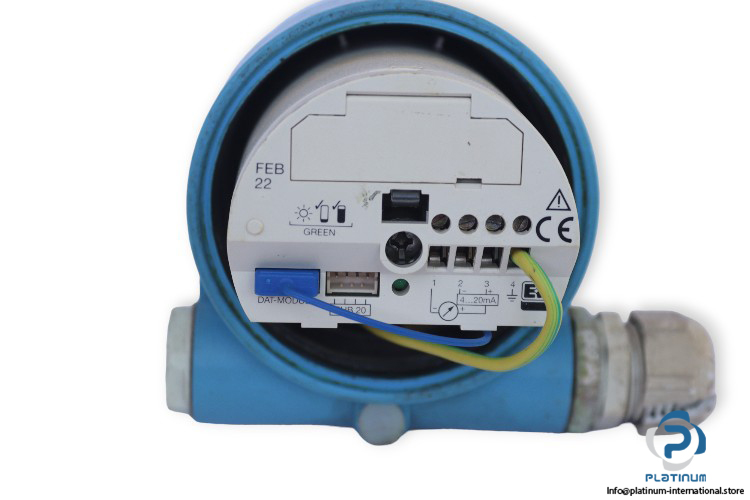

Electronic Insert “ Endress+Hauser FEB 22
- Manufacturer: Endress+Hauser
- Type: Electronic Insert
- Model: FEB 22
- Supply Voltage: 11.5 / 30 V DC
- Output Current: 4 / 20 mA HART
