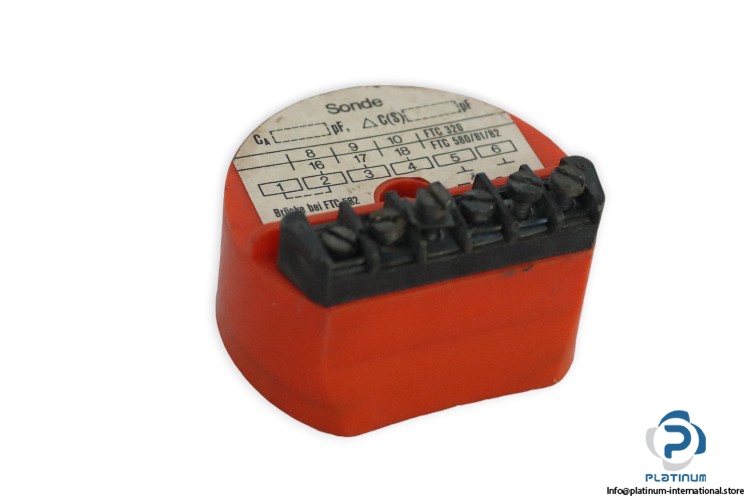

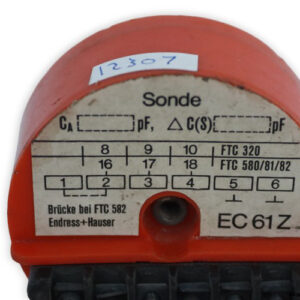

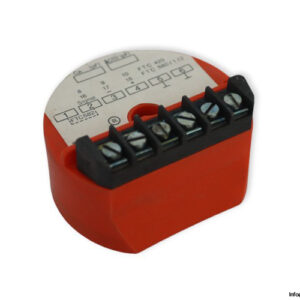

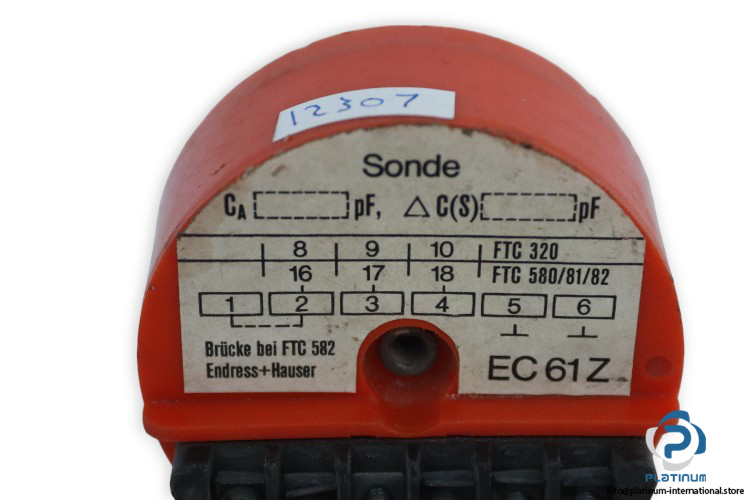

Endress+Hauser EC61Z Capacitance Limit Detection Electronic Insert

The Endress+Hauser EC61Z is a capacitance limit detection electronic insert designed for precise level detection and stable operation across a wide range of process conditions.

Manufacturer: Endress+Hauser
Type: Capacitance Limit Detection Electronic Insert
Model: EC61Z
Code: M6 EP58
Used with: FTC 320, FTC 580/81/82

Technical Information

• Power Supply: 15 V ± 0.9 V
• Output Signal Voltage: 3 / 12 V, equivalent to 10 / 350 pF
• Measuring Frequency: Approx. 500 kHz
• Identification: Orange
• Protection Type: Electronics IP 55, Terminals IP 00
• Permissible Ambient Temperature: -20 / +100 °C

Features and Benefits

• Applicable over a wide temperature range
• Operates reliably even with conductive deposits on the probe
