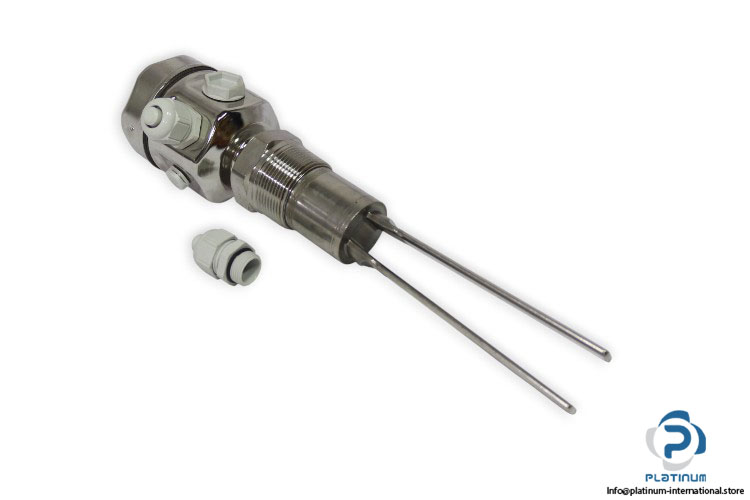

Endress+Hauser SOLIPHANT M Point Level Detection

The Endress+Hauser SOLIPHANT M is a high-performance point level detection device designed for reliable measurement in demanding process conditions. With a hygienic stainless-steel housing, wide voltage range, and robust relay output, it ensures precision, durability, and compliance with industrial standards.

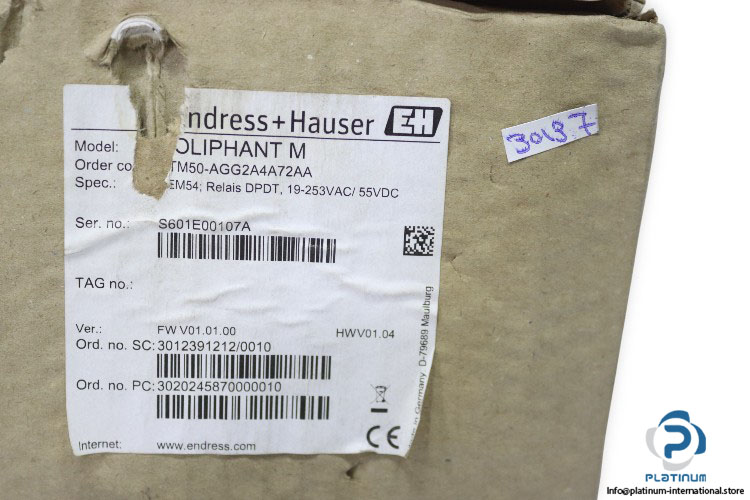

Manufacturer: Endress+Hauser
Type: Point Level Detection

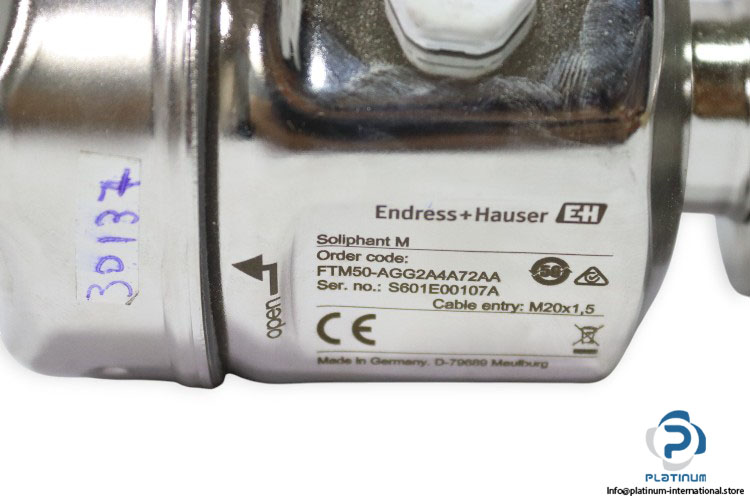

Model: SOLIPHANT M
Part No.: FTM50-AGG2A4A72AA
Serial No.: S601E00107A
Version: FW V01.01.00 / HW V01.04
Order No. SC: 3012391212/0010
Order No. PC: 3020245870000010

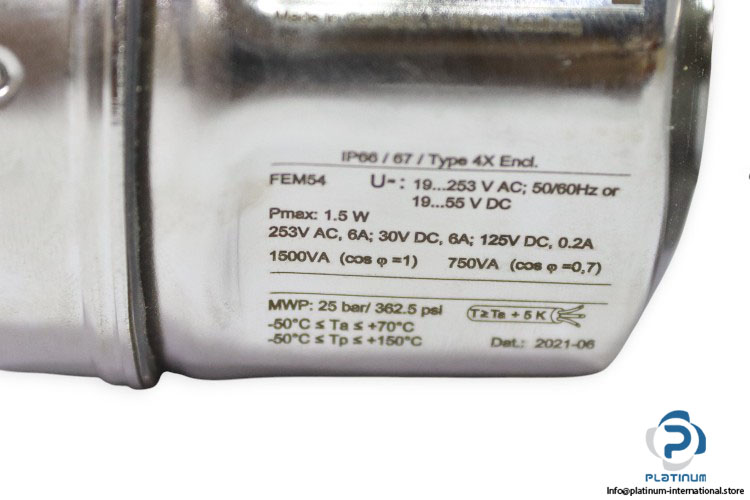

Technical information

• Output: FEM54; relay DPDT 19 to 253 V AC / 55 V DC
• Cable Entry: M20 x 1.5
• Voltage: 19 to 253 V AC; 50/60 Hz or 19 to 55 V DC
• Power Max: 1.5 W
• Current: 6 A @ 253 V AC / 6 A @ 30 V DC / 0.2 A @ 125 V DC
• Power Rating: 1500 VA (cos φ = 1) / 750 VA (cos φ = 0.7)
• Max Working Pressure: 25 bar / 362.5 psi
• Temperature: -50 to 70 °C @ Ta / -50 to 150 °C @ Tp
• Probe Design: Compact
• Housing: F15, 316L, Hygiene, IP66/67, NEMA4X
• Surface Refinement: 316L; Ra ‰¤ 3.2 μm / 126 μin, without
