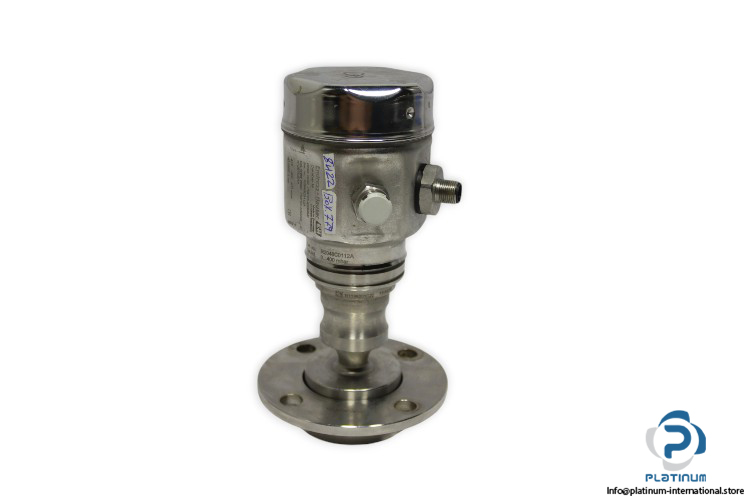

Manufacturer: ENDRESS+HAUSER
Type: Digital pressure transmitter

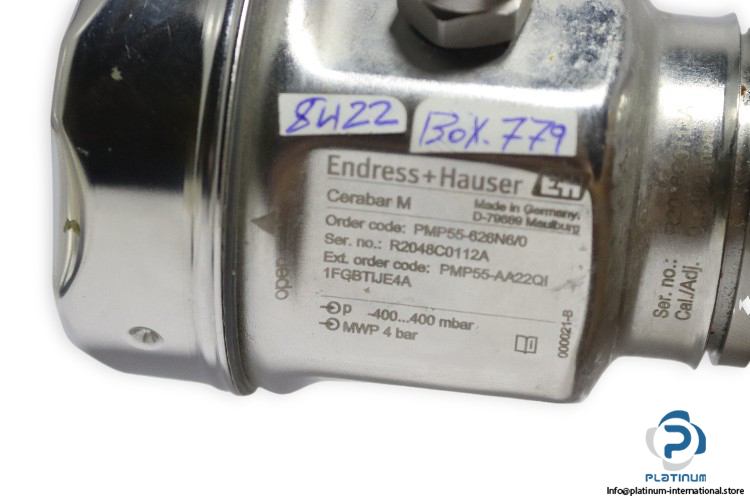

Model: PMP55-626N6/0
Ext. Order code: PMP55-AA22QI

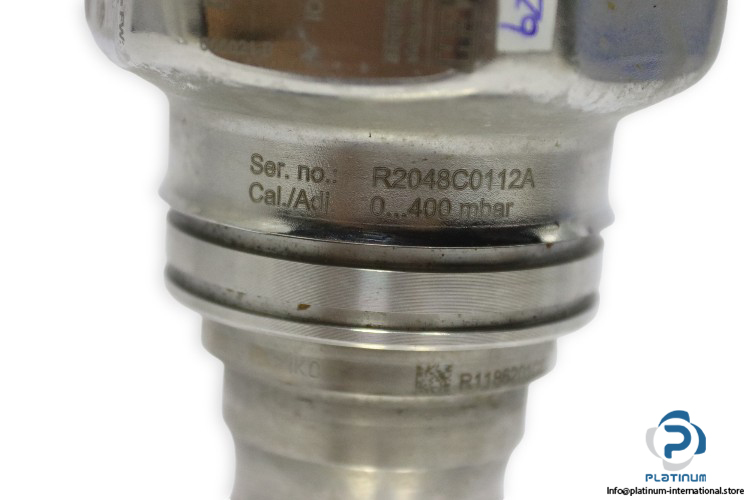

R2048C0112A

Accuracy: Standard 0.15%
Process temperature: -70°C…400°C
Pressure measuring range: 1 bar…400 bar
Measuring principle: Absolute and gauge pressure

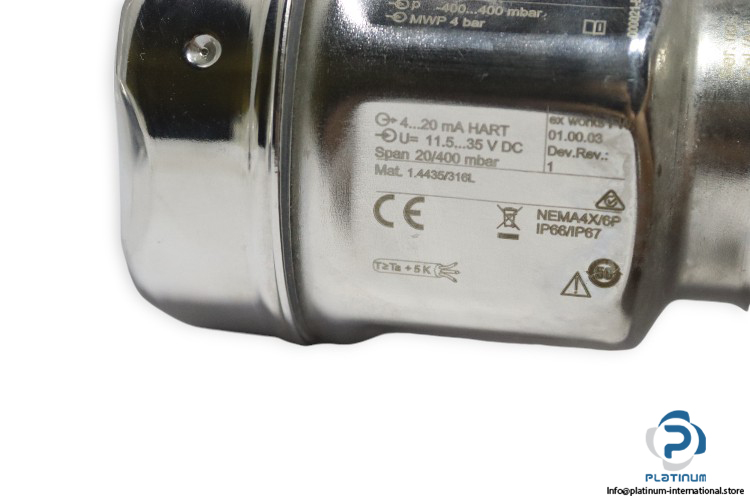

Supply voltage: 11,5 … 35V DC
Current: 4…20 mA
Max. measurement distance: 4000m
Material housing: Die-cast aluminum, AISI 316L
Measuring cell: 400 mbar…400 bar
Max. overpressure limit: 600 bar
Protection class: IP66/IP67
