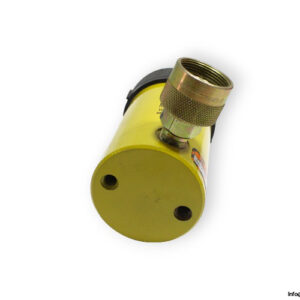

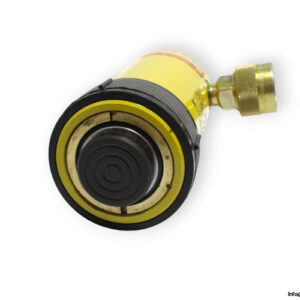

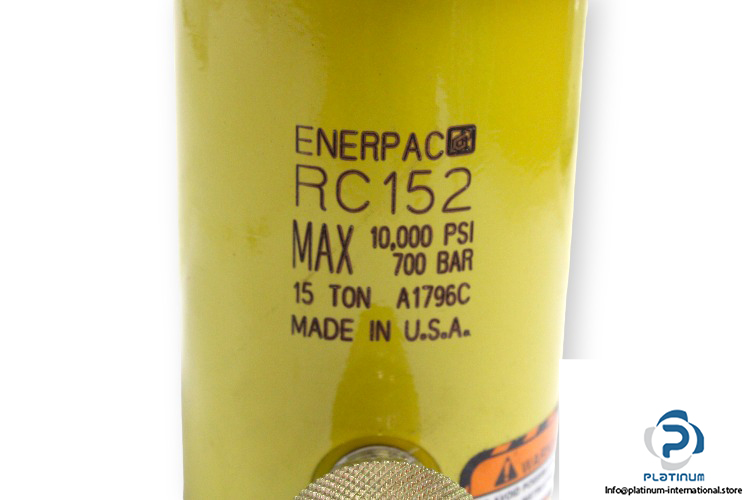

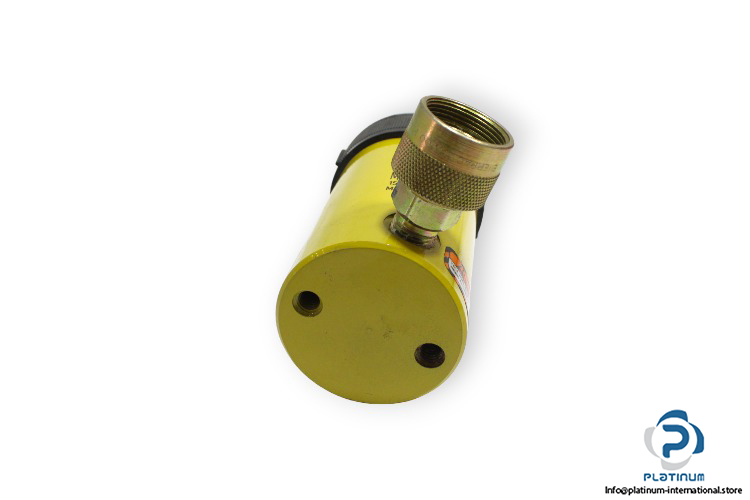

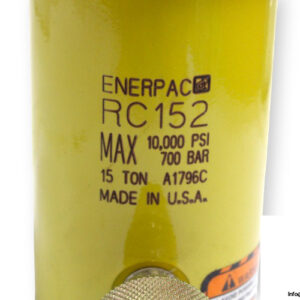

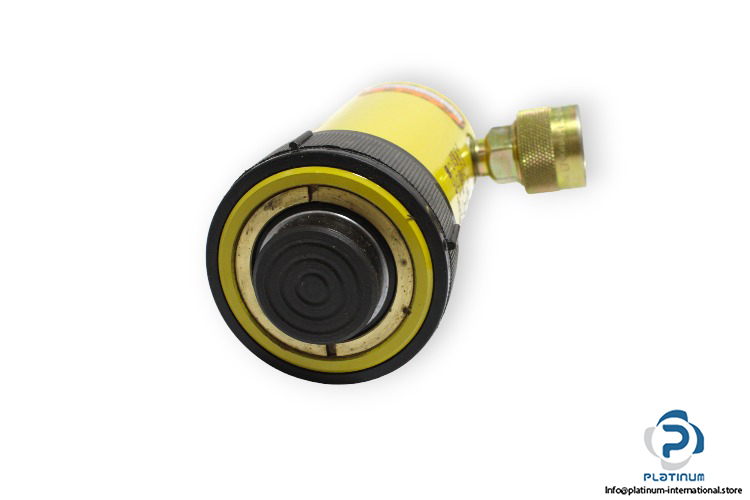

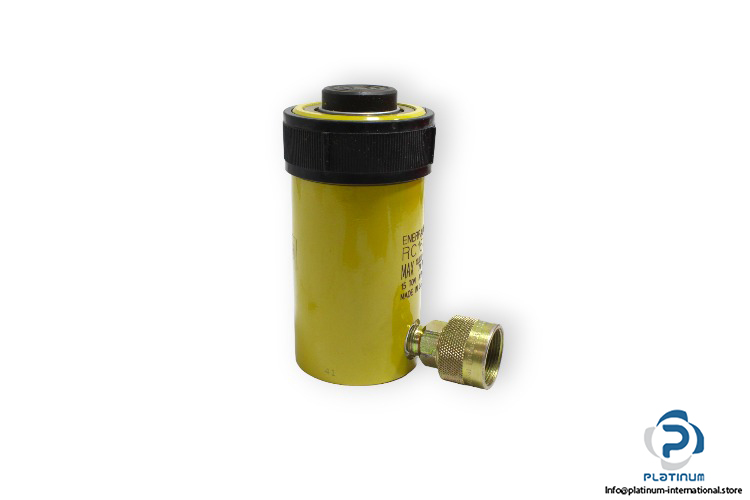

Manufacturer: ENERPAC
Type: General Purpose Hydraulic Cylinder
Model: RC152

Maximum Operating Pressure: 10,000 psi
Capacity Class (tonnage): 15
Maximum Cylinder Capacity Advance (short tons): 15.7
Stroke: 2 in
Collapsed Height: 5.88 in
Extended Height: 7.88 in
Return Type: Single-Acting, Spring Return
Plunger Type: Solid
Material: Steel
Cylinder Effective Area Advance: 3.14 in²
Oil Capacity Advance: 6.28 in³
